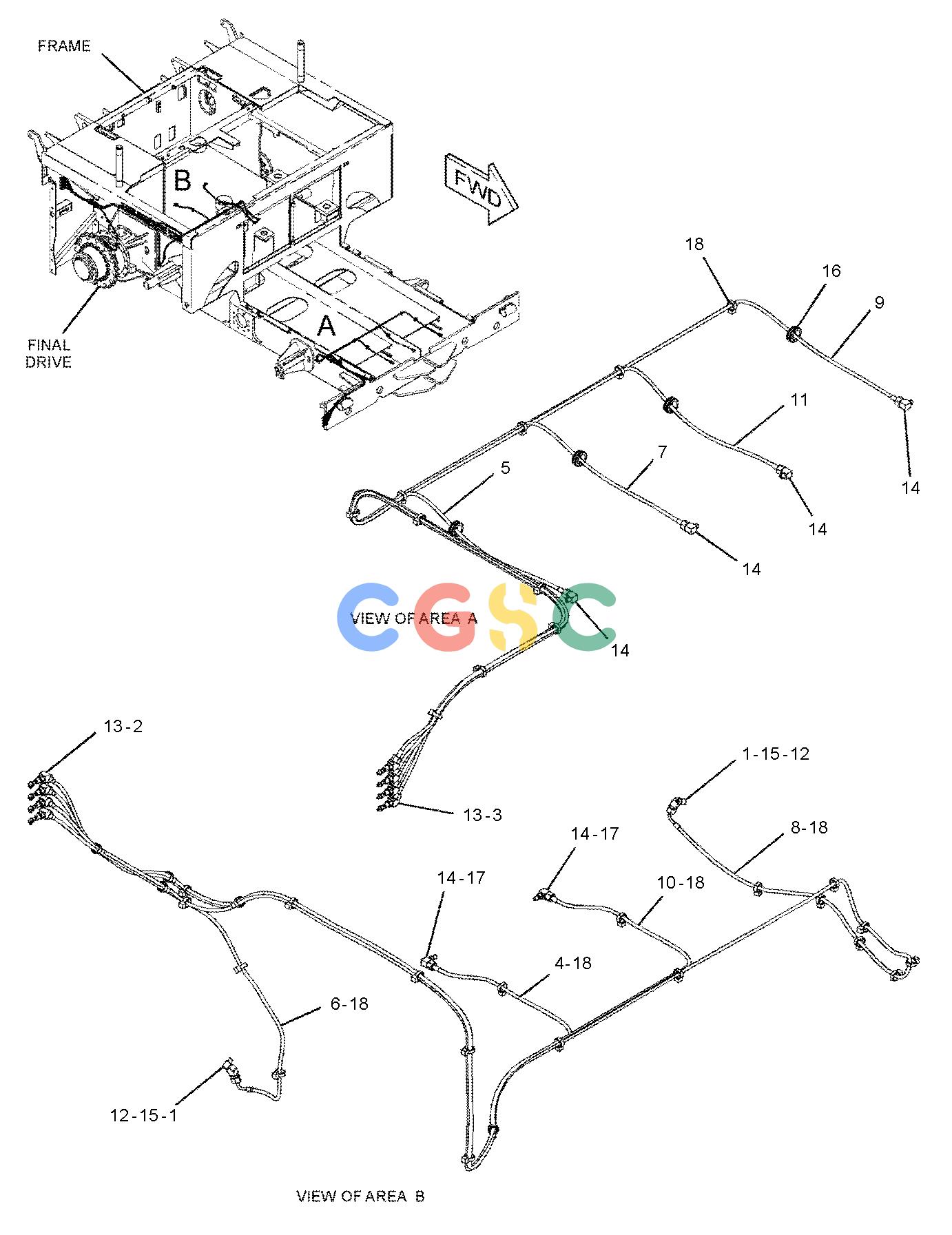

卡特零件查询（AP-1055D） 255-6658: LINES GP-GREASE
广数供应链运营团队, 16 02月, 2025，浏览：
844 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2D-1683 | [2] | FITTING(1/8-27 PTF)(90-DEG) | |
| 2. | 3B-8485 | [4] | ELBOW | |
| 3. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 4. | 236-8028 | [1] | HOSE AS | |
| 5. | 236-8029 | [1] | HOSE AS | |
| 6. | 236-8030 | [1] | HOSE AS | |
| 7. | 236-8031 | [1] | HOSE AS | |
| 8. | 236-8032 | [1] | HOSE AS | |
| 9. | 236-8033I | [1] | HOSE AS | |
| 10. | 236-8034 | [1] | HOSE AS | |
| 11. | 236-8035 | [1] | HOSE AS | |
| 12. | 148-8320 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6865 | [1] | CONNECTOR | |
| 13. | 148-8385 | [8] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9000 | [1] | ELBOW | |
| 14. | 148-8389 | [6] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 7X-0492 | [1] | ELBOW | |
| 15. | 3B-7896 | [2] | ELBOW-STREET | |
| 16. | 3D-6209 | [4] | GROMMET | |
| 17. | 4K-3026 | [2] | EXTENSION(FITTING)(FITTING) | |
| 18. | 7K-1181B | [34] | STRAP-CABLE | |
| | B | | USE AS REQUIRED |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
