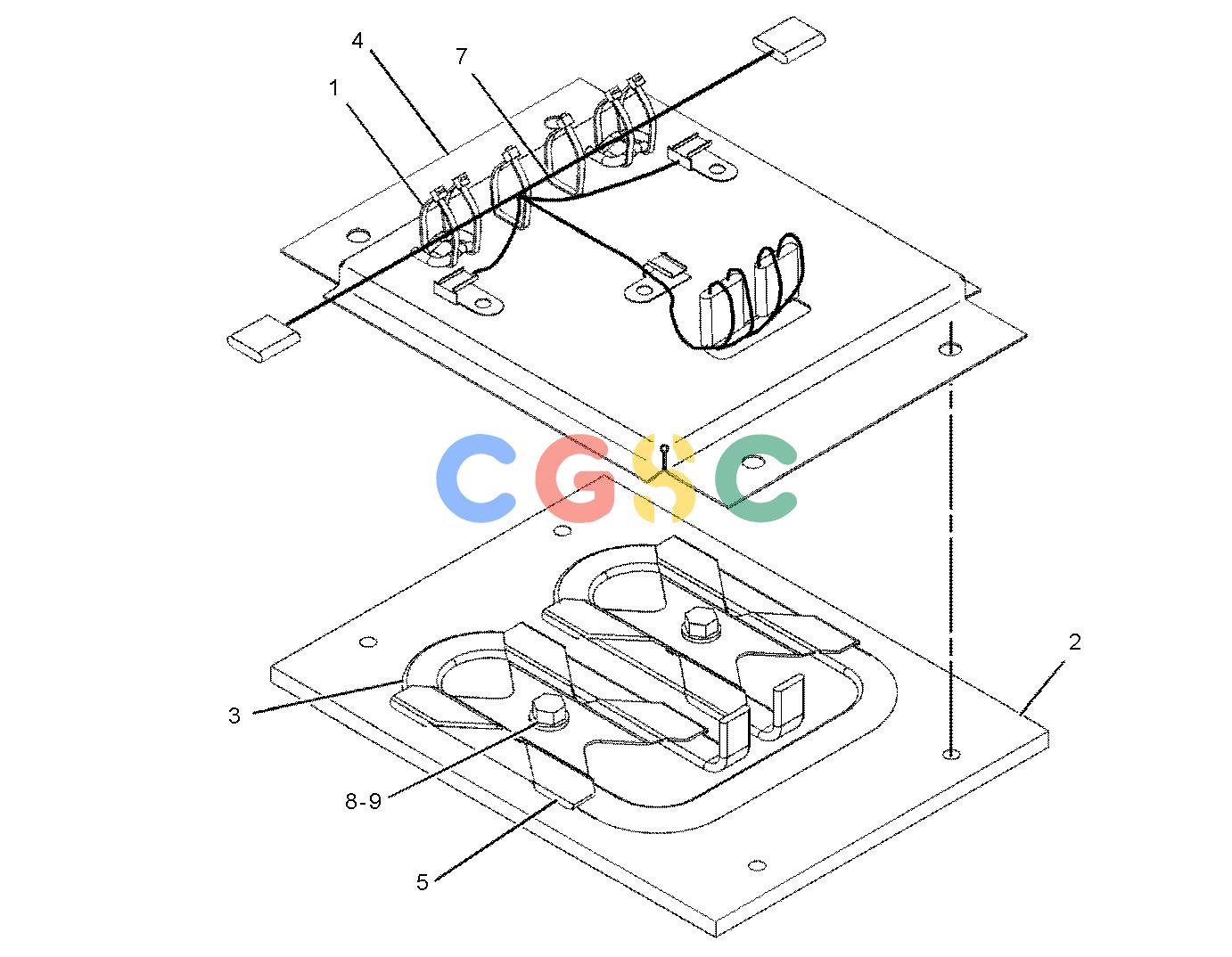

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3S-2093 | [6] | STRAP-CABLE | |
| 2. | 245-9057 | [1] | PLATE | |
| 3. | 245-9058 | [1] | HEATER AS-SCREED | |
| 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 4. | 245-9074 | [1] | PLATE AS | |
| 5. | 250-0737 | [2] | BRACKET | |
| 7. | 254-9932 | [1] | HARNESS AS-SCREED(HEATER ELEMENT) | |
| 8. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 8T-9384B | [2] | BOLT(1/2-13X0.875-IN) | |
| -OR- | ||||
| 8T-9383B | [2] | BOLT(1/2-13X0.75-IN) | ||
| B | USE AS REQUIRED | |||
