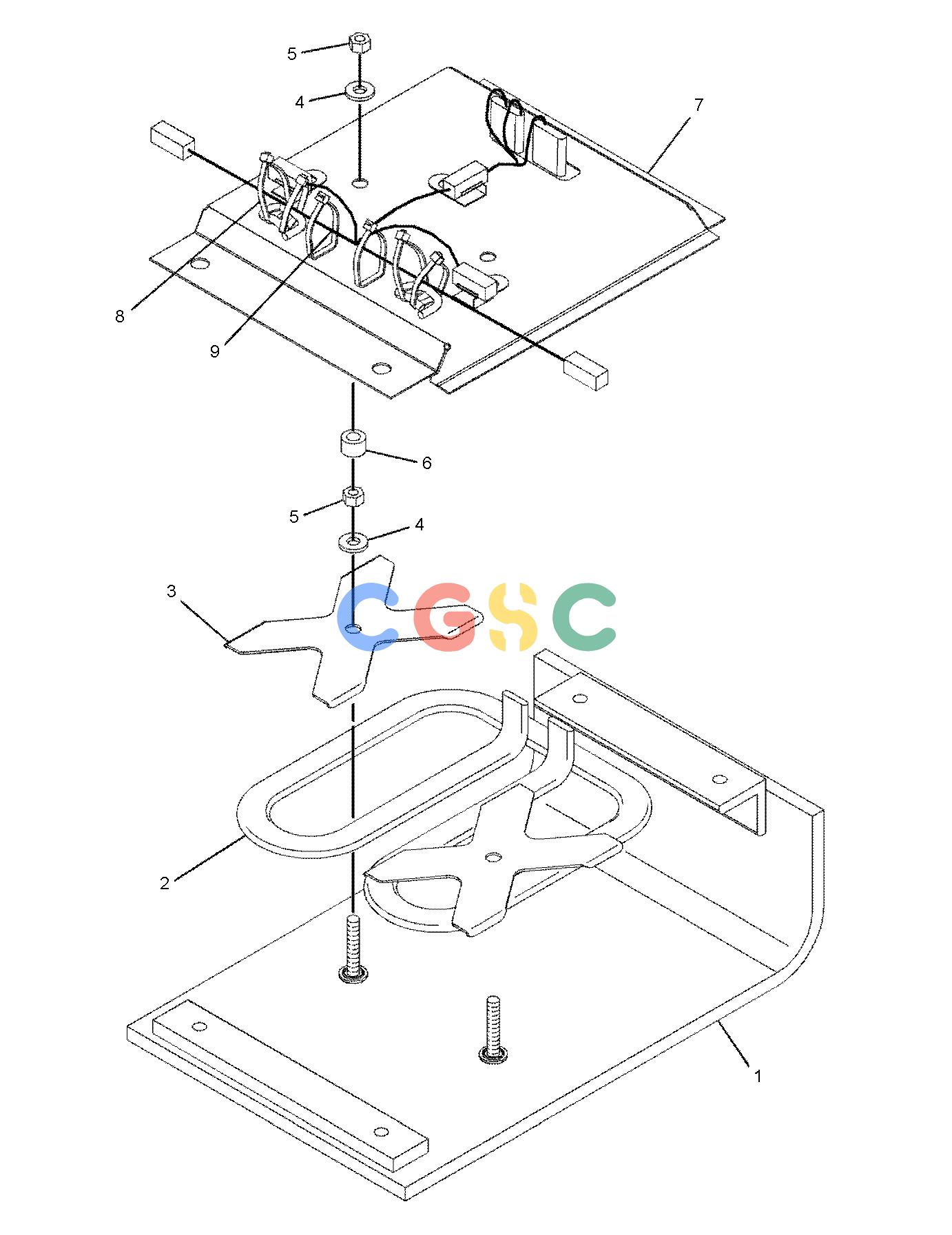

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 245-9070 | [1] | PLATE AS | |
| 2. | 245-9058 | [1] | HEATER AS-SCREED | |
| 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 3. | 250-1075 | [2] | BRACKET | |
| 4. | 5P-1075 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 5. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 6. | 251-1544 | [2] | SPACER(14.86X19.05X12.5-MM THK) | |
| 7. | 245-9066 | [1] | PLATE AS | |
| 8. | 3S-2093 | [6] | STRAP-CABLE | |
| 9. | 254-9932 | [1] | HARNESS AS-SCREED(HEATER ELEMENT) | |
