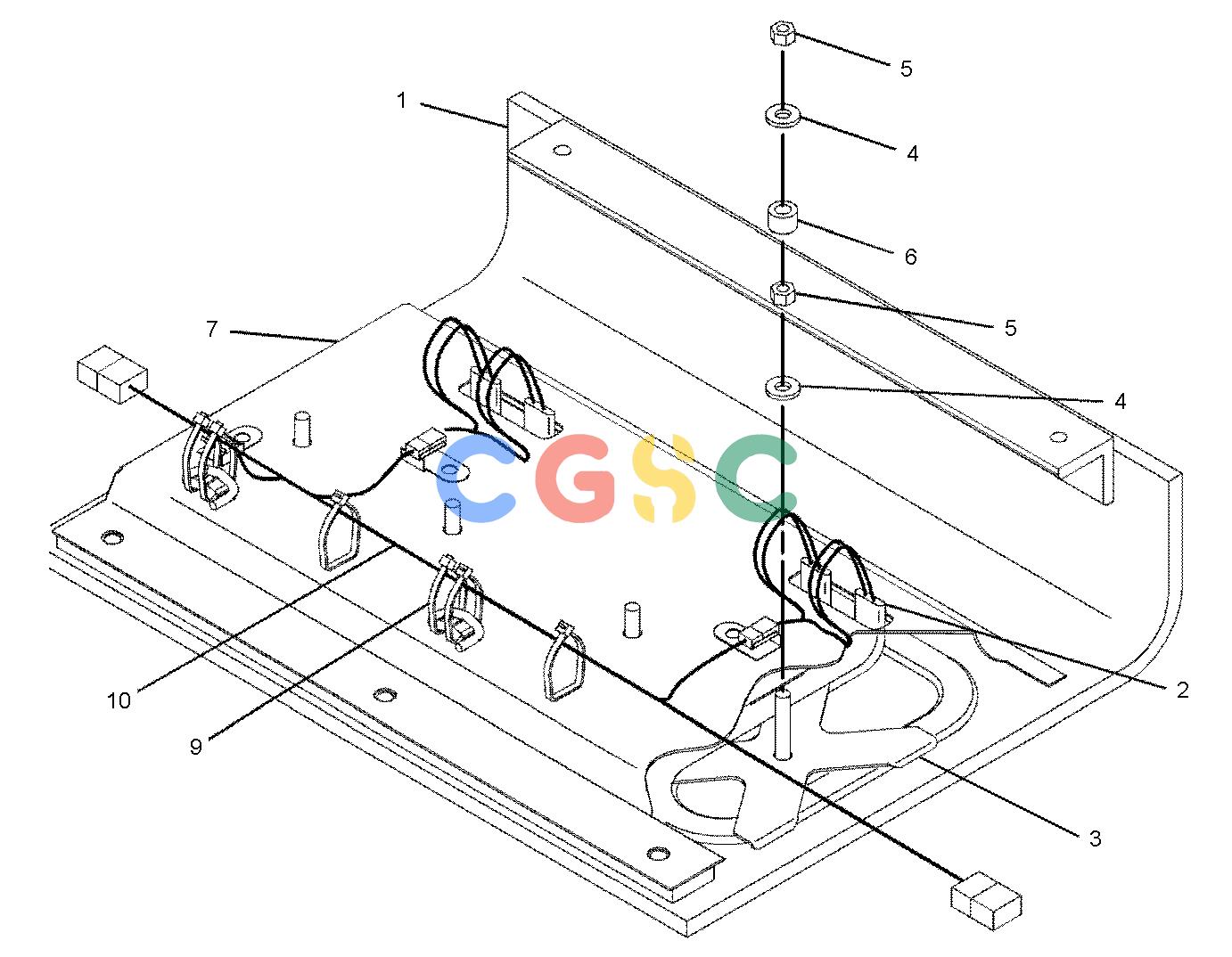

卡特零件查询（AP-1055D） 245-9080: PLATE GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
653 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 245-9067 | [1] | PLATE AS | |
| 2. | 245-9058 | [2] | HEATER AS-SCREED | |
| | | | (EACH HEATER AS INCLUDES) |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 3. | 250-1075 | [4] | BRACKET | |
| 4. | 5P-1075 | [8] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 5. | 6V-8801 | [8] | NUT(3/8-16-THD) | |
| 6. | 251-1544 | [4] | SPACER(14.86X19.05X12.5-MM THK) | |
| 7. | 245-9064 | [1] | PLATE AS | |
| 9. | 3S-2093 | [8] | STRAP-CABLE | |
| 10. | 245-9061 | [1] | HARNESS AS-SCREED(HEATER ELEMENT) | |
