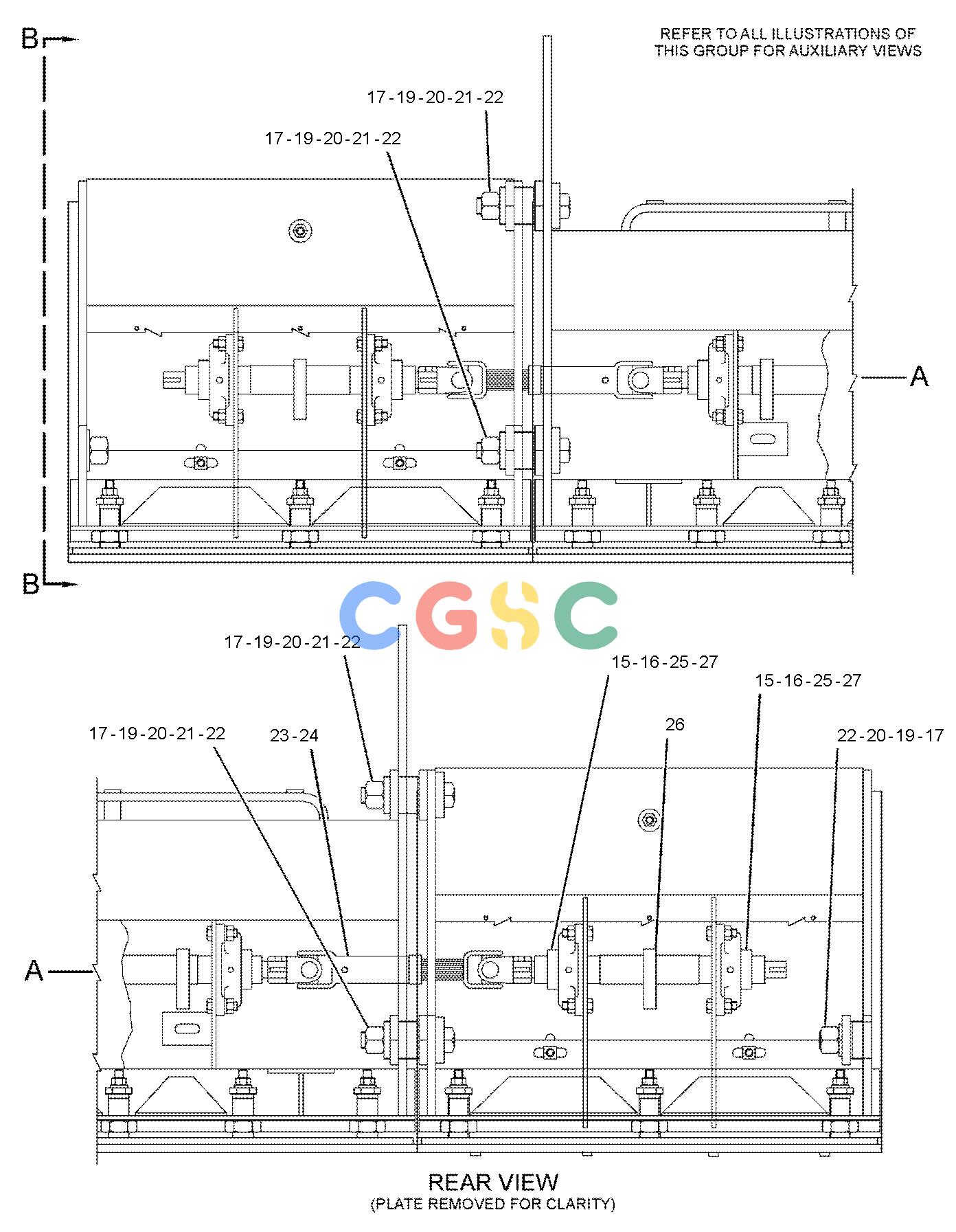

卡特零件查询（AP-1055D） 245-9081: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
599 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0524 | [1] | FRAME AS | |
| | 9C-8895M | [1] | BOSS-TAPPED(M10X1.5-THD) | |
| | 1A-4168 | [2] | NUT(1-1/4-12-THD) | |
| | 8I-0130 | [2] | SPACER | |
| 2. | 245-9077Y | [1] | PLATE GP-SCREED(ELECTRIC HEAT, 12-IN) | |
| 3. | 8I-0182 | [1] | BAR-NOSE | |
| 4. | 102-2732 | [1] | BAR-SPACER | |
| 5. | 8I-0184 | [2] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 6. | 8I-0212 | [2] | STUD(1/2-13X5-IN) | |
| 7. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 8I-0889B | [2] | SHIM(0.02-IN THK) | |
| 9. | 8I-0189 | [2] | STUD(1/2-13X1.75-IN) | |
| 10. | 8I-0185 | [2] | STUD(1/2-13X2.75-IN) | |
| 11. | 5P-2228 | [3] | BOLT(1/2-13X1-IN) | |
| 12. | 6V-8188 | [7] | NUT(1/2-13-THD) | |
| 13. | 104-2231 | [2] | NUT-SPRING | |
| 14. | 102-2734 | [1] | PLATE | |
| 15. | 8T-5361 | [5] | WASHER-HARD(28X49X5-MM THK) | |
| 16. | 7X-0410 | [1] | BOLT(1-8X4-IN) | |
| 17. | 102-2719 | [2] | LOCKNUT(2-1/4-16-THD) | |
| 18. | 8I-0544 | [2] | BUSHING | |
| 19. | 8I-0528 | [2] | BOLT AS | |
| 20. | 6K-3632 | [4] | LOCKNUT(1-8-THD) | |
| 21. | 106-3451 | [1] | HARNESS AS-SCREED(EXTENSION) | |
| 22. | 8J-1256 | [6] | CLIP | |
| 23. | 4M-5281 | [5] | BOLT(1/4-20X0.75-IN) | |
| 24. | 8T-4205 | [6] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 25. | 7X-2501 | [1] | BOLT(1/4-20X1.25-IN) | |
| 26. | 6V-8185 | [1] | NUT(1/4-20-THD) | |
| 27. | 8I-0890 | [2] | SHIM(0.064-IN THK) | |
| 28. | 7X-2621M | [1] | BOLT(M10X1.5X12-MM) | |
| 29. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
