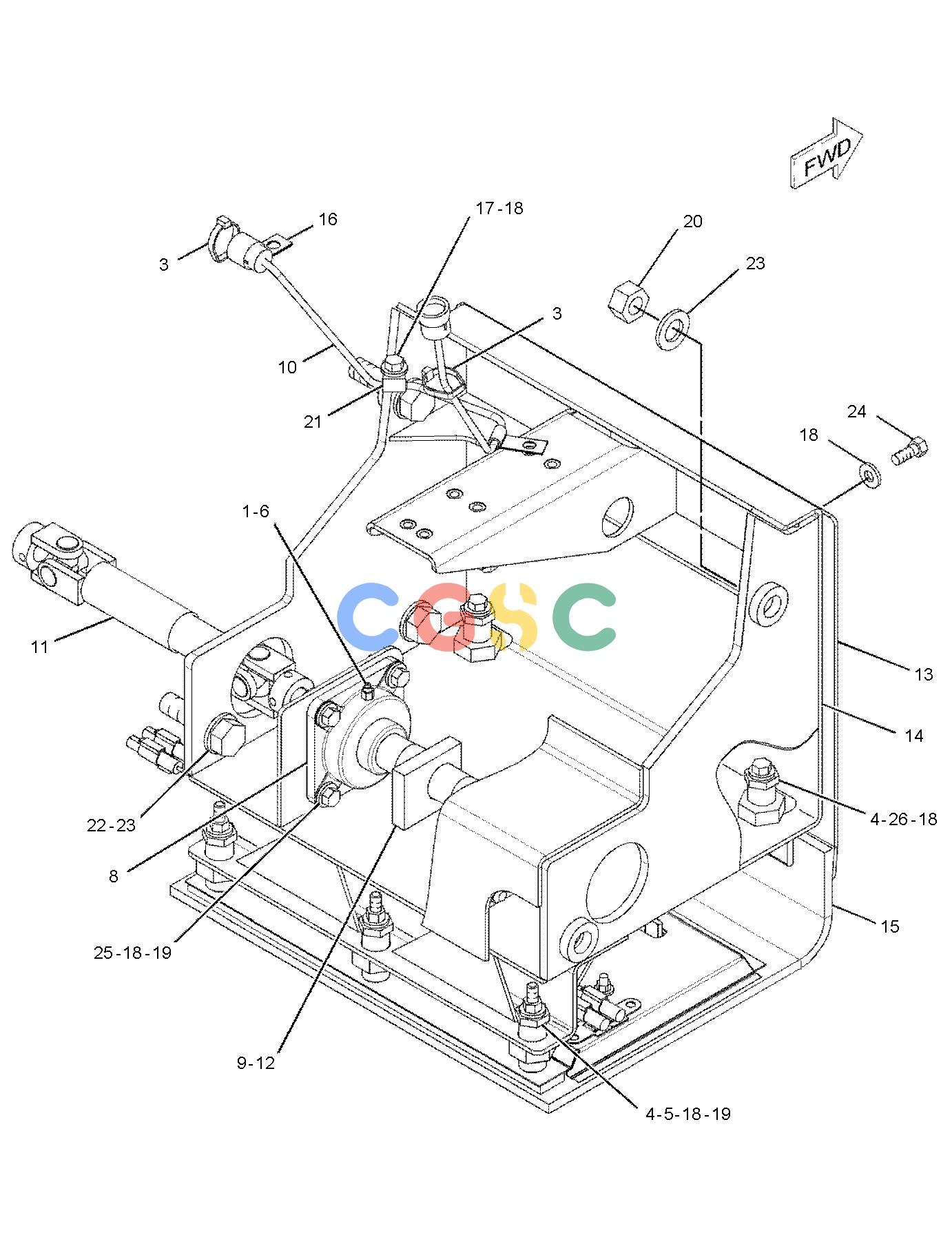

卡特零件查询（AP-1055D） 245-9084: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
816 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 7K-1181 | [2] | STRAP-CABLE | |
| 4. | 8I-0184 | [5] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 5. | 8I-0212 | [3] | STUD(1/2-13X5-IN) | |
| 6. | 8I-0720 | [2] | CONNECTOR | |
| 8. | 102-2695 | [2] | BEARING | |
| 9. | 102-2735 | [2] | KEY-SQUARE | |
| 10. | 106-3451 | [1] | HARNESS AS-SCREED(EXTENSION) | |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8C-3654 | [1] | PLUG-CONNECTOR(6-PIN) | |
| | 7T-3272 | [1] | RECEPTACLE-CONNECTOR(6-PIN) | |
| | 8T-8730 | [6] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| 11. | 112-1276Y | [1] | SHAFT GP-DRIVE(ECCENTRIC WEIGHT) | |
| 12. | 197-9779 | [1] | SHAFT AS | |
| 13. | 197-9780 | [1] | PLATE | |
| 14. | 197-9781 | [1] | FRAME AS | |
| | 1A-4168 | [5] | NUT(1-1/4-12-THD) | |
| | 8T-5911 | [10] | NUT-WELD(1/2-13-THD) | |
| 15. | 245-9080Y | [1] | PLATE GP-SCREED(ELECTRIC HEAT, 2-FT) | |
| 16. | 3P-2404 | [1] | CLIP | |
| 17. | 5C-6565 | [1] | BOLT(1/2-13X1.125-IN) | |
| 18. | 5P-1076 | [26] | WASHER-HARD(13.5X30X4-MM THK) | |
| 19. | 6V-8188 | [11] | NUT(1/2-13-THD) | |
| 20. | 6V-8190 | [3] | NUT(1-8-THD) | |
| 21. | 7N-3718 | [2] | CLIP | |
| 22. | 7X-0408 | [3] | BOLT(1-8X3.5-IN) | |
| 23. | 8T-5361 | [6] | WASHER-HARD(28X49X5-MM THK) | |
| 24. | 8T-8917 | [4] | BOLT(1/2-13X1.25-IN) | |
| 25. | 8T-8919 | [8] | BOLT(1/2-13X1.75-IN) | |
| 26. | 8T-9391 | [2] | BOLT(1/2-13X3.75-IN) | |
| | Y | | SEPARATE ILLUSTRATION |
