卡特零件查询（AP-1055E） 327-9176: WIRING GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
167 次

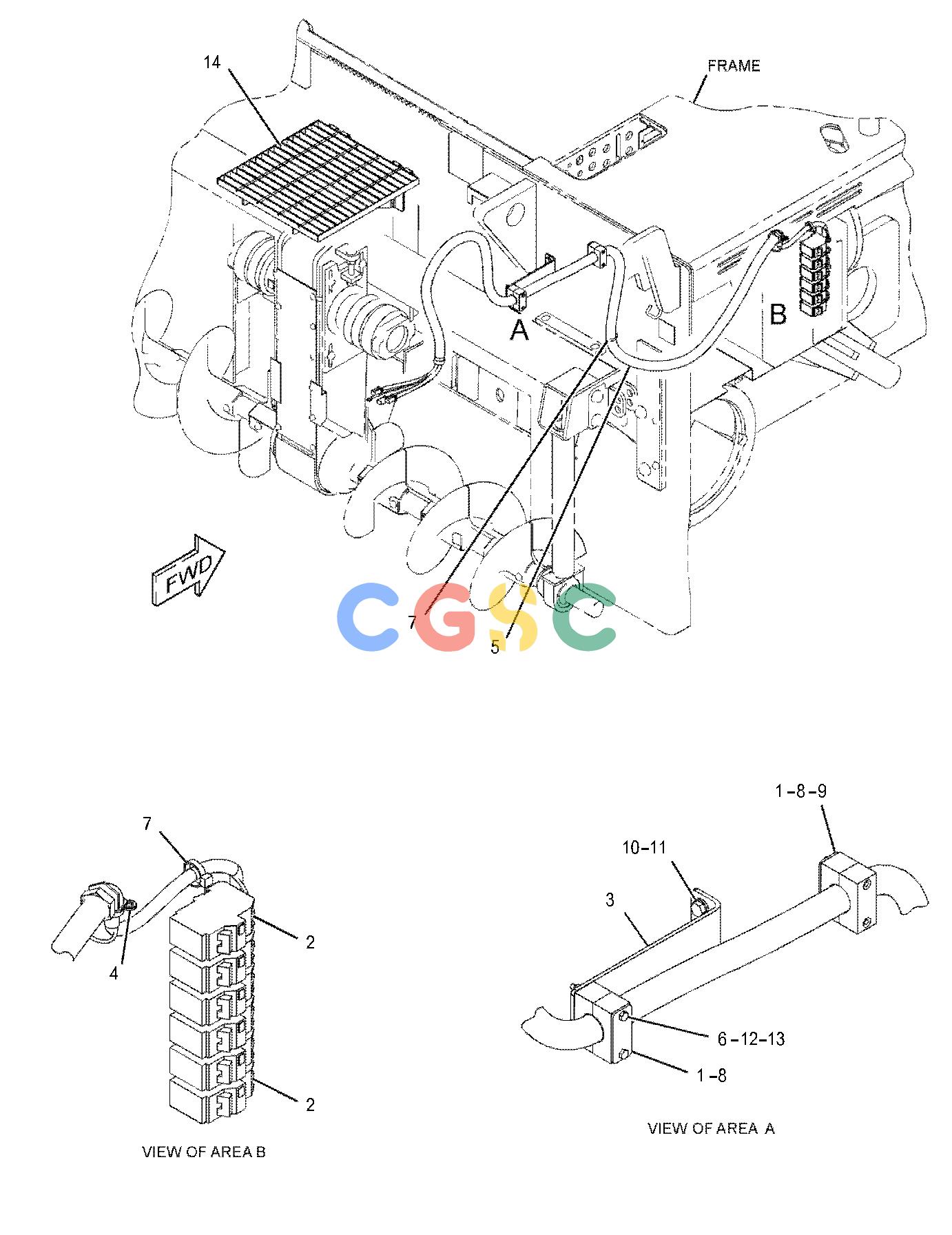

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7951 | [2] | PLATE | |
| 2. | 448-1980 | [6] | CIRCUIT BREAKER(25-AMPERE)(SCREED) | |
| 3. | 297-2669 | [1] | PLATE | |
| 4. | 8T-4896 | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 5. | 347-7961 | [1] | HARNESS AS-SCREED | |
| | 107-1351 | [1] | CONNECTOR-FLEXIBLE | |
| | 3N-9697 | [1] | FERRULE | |
| | 177-9656 | [3] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [12] | PLUG-SEAL | |
| | 177-9653 | [3] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 160-2246G | | SLEEVE-ABRASION(55.5-IN) | |
| | 7T-0094 | [12] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [2] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 6. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 7. | 7K-1181 | [4] | STRAP-CABLE | |
| 8. | 7R-7941 | [4] | CLAMP | |
| 9. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 10. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 12. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 13. | 8T-6974M | [2] | BOLT(M6X1X80-MM) | |
| 14. | 300-3564Y | [1] | STEP GP | |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
