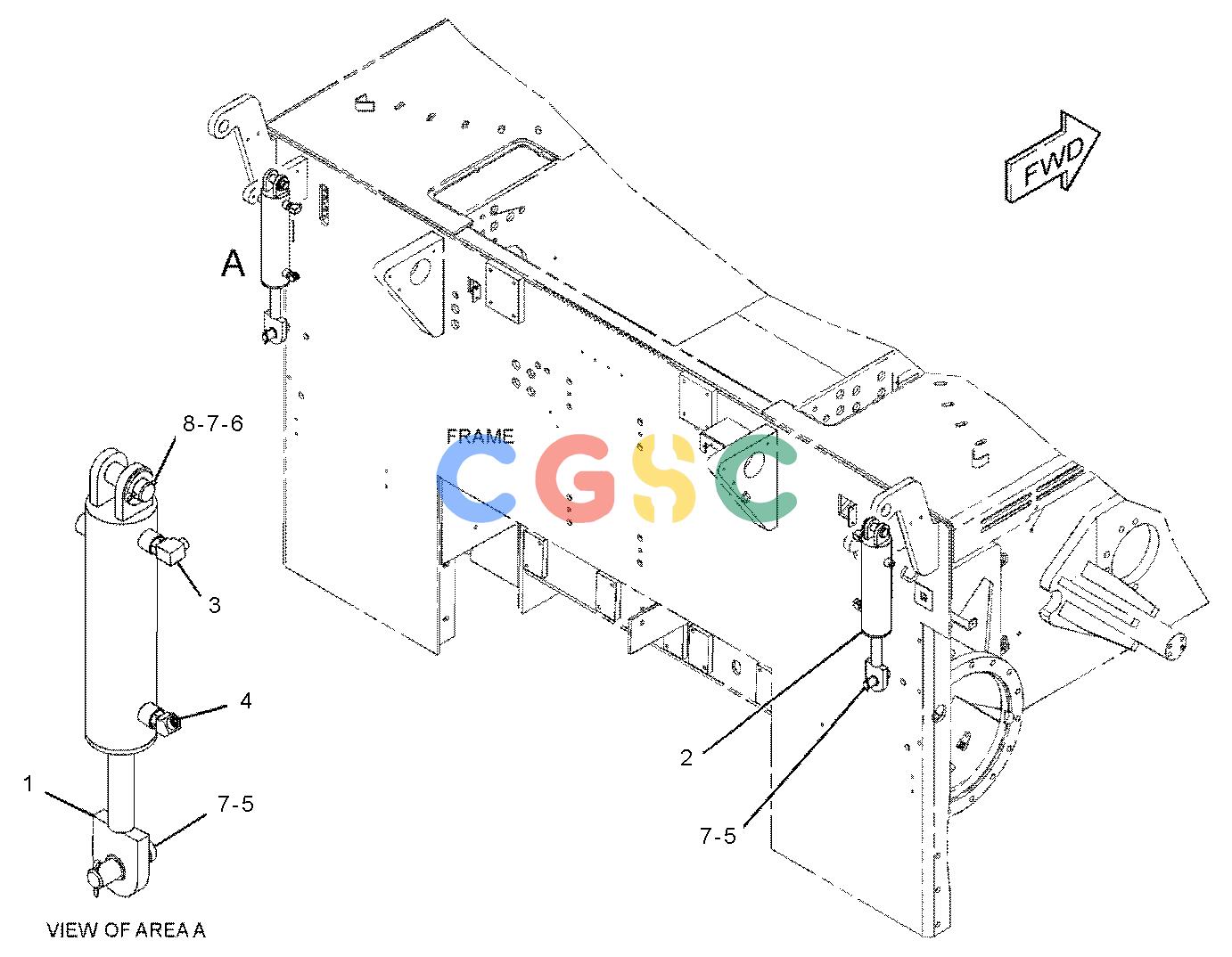

卡特零件查询（AP-1055E） 333-2080: CYLINDER & MTG GP-AUGER
广数供应链运营团队, 16 02月, 2025，浏览：
185 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 194-7259Y | [1] | CYLINDER GP-HYDRAULIC(AUGER, LH) | |
| 2. | 194-7260Y | [1] | CYLINDER GP-HYDRAULIC(AUGER, RH) | |
| 3. | 148-8368 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8627 | [1] | ELBOW | |
| 4. | 150-3033 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-0164 | [1] | ELBOW | |
| 5. | 173-3651 | [2] | PIN-CLEVIS | |
| 6. | 253-8675 | [2] | PIN-CLEVIS | |
| 7. | 3B-4629 | [4] | PIN-COTTER | |
| 8. | 8T-4167 | [2] | WASHER-HARD(26X44X4-MM THK) | |
| | Y | | SEPARATE ILLUSTRATION |
