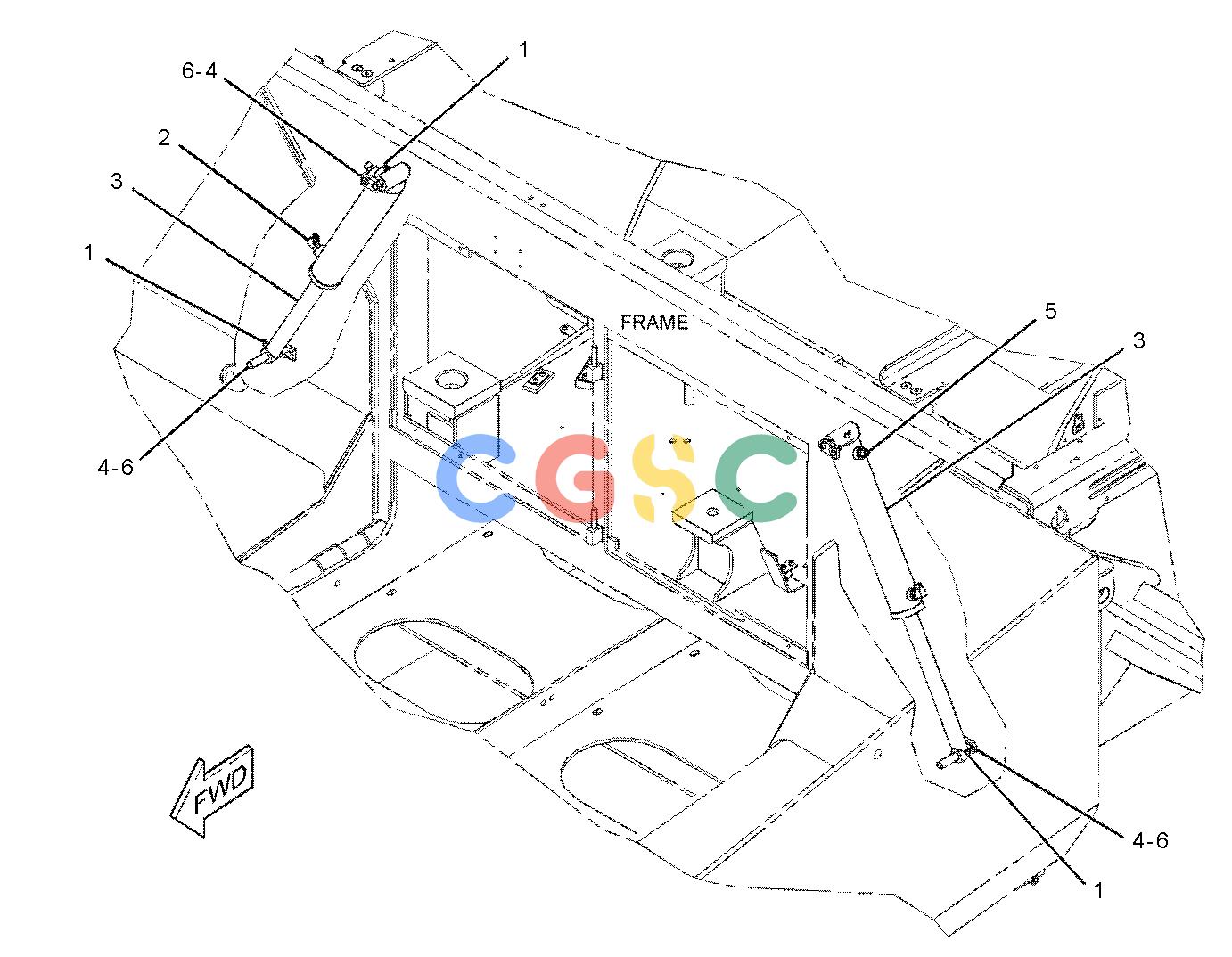

卡特零件查询（AP-1055E） 333-1953: CYLINDER & MTG GP-HOPPER
广数供应链运营团队, 16 02月, 2025，浏览：
299 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [4] | ELBOW | |
| 2. | 205-7200 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 108-2144 | [1] | ELBOW | |
| 3. | 275-0895Y | [2] | CYLINDER GP-HYDRAULIC(HOPPER) | |
| 4. | 288-7192 | [4] | PIN AS | |
| 5. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 6. | 6V-7726M | [4] | SCREW-HEX SOCKET(M10X1.5X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
