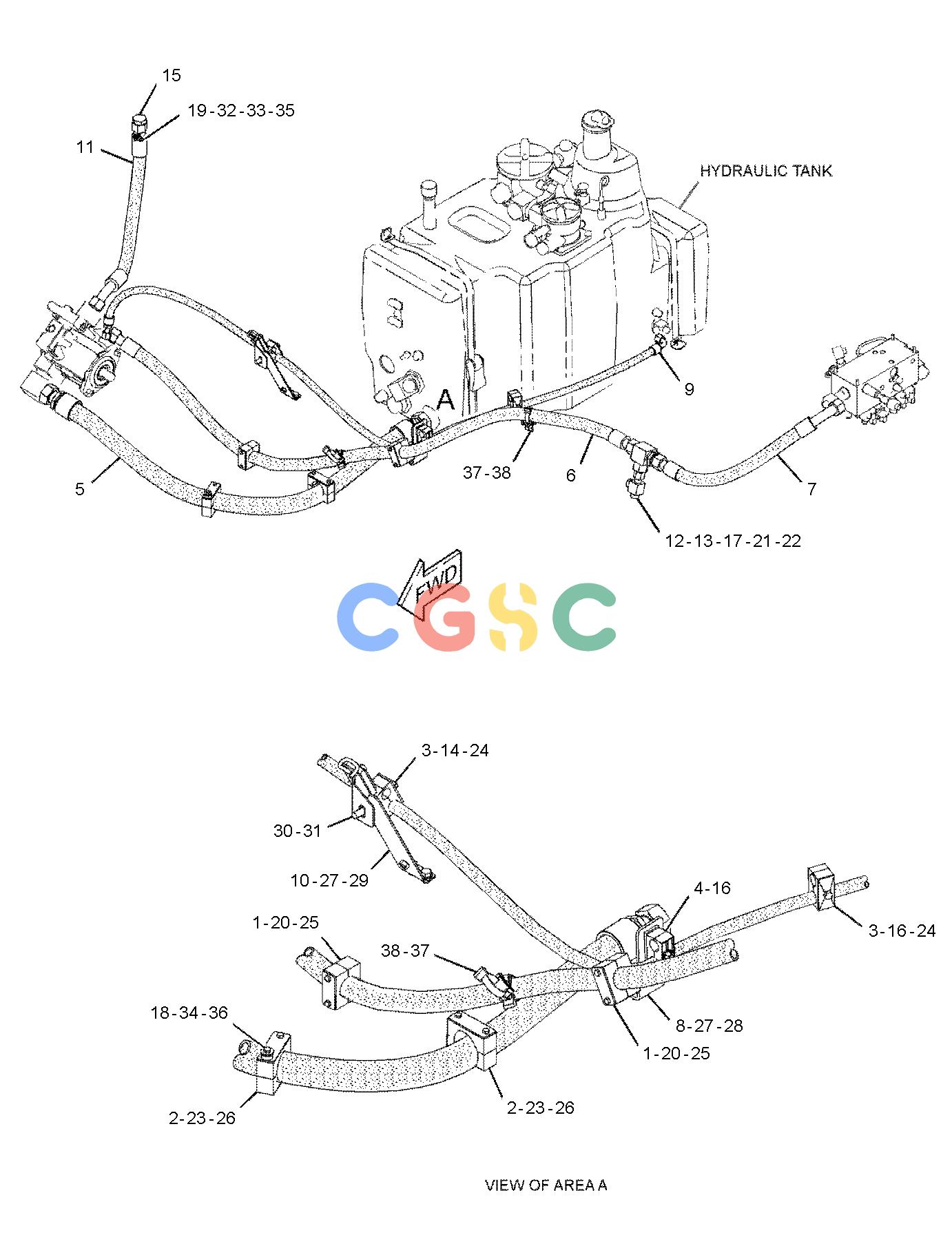

卡特零件查询（AP-1055E） 336-7904: LINES GP-PUMP
广数供应链运营团队, 16 02月, 2025，浏览：
756 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7951 | [2] | PLATE | |
| 2. | 7R-7952 | [2] | COVER | |
| 3. | 102-8705 | [2] | PLATE(TOP) | |
| 4. | 206-0451M | [1] | BOLT-STACKING(M8X1.25X44-MM) | |
| 5. | 338-5372I | [1] | HOSE AS | |
| 6. | 376-8247I | [1] | HOSE AS | |
| 7. | 341-0982I | [1] | HOSE AS | |
| 8. | 345-7864 | [1] | BRACKET AS | |
| 9. | 351-7063I | [1] | HOSE AS | |
| 10. | 351-7068 | [1] | PLATE AS | |
| 11. | 363-0301I | [1] | HOSE AS | |
| 12. | 148-8446 | [1] | TEE AS-SWIVEL | |
| | 6V-9838 | [1] | TEE-SWIVEL | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 13. | 150-3071 | [1] | REDUCER AS | |
| | 6V-8945 | [1] | REDUCER-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 14. | 8V-5718 | [2] | CLAMP | |
| 15. | 164-4180 | [1] | PLUG AS | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| 16. | 206-6411 | [4] | CLAMP-HALF | |
| 17. | 250-1488 | [1] | TEE AS | |
| | 5K-9090 | [3] | SEAL-O-RING | |
| | 154-7159 | [1] | TEE | |
| 18. | 7X-0732 | [1] | WASHER-HARD(10X22.5X8-MM THK) | |
| 19. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 20. | 5V-6152 | [4] | CLAMP | |
| 21. | 9X-6579 | [1] | NUT-ORIFICE(7/16-12-THD) | |
| 22. | 6V-9172 | [1] | NUT(1-7/16-12-THD) | |
| 23. | 7R-7942 | [4] | CLAMP | |
| 24. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 25. | 7X-2535M | [4] | BOLT(M6X1X60-MM) | |
| 26. | 8T-3844M | [3] | BOLT(M6X1X70-MM) | |
| 27. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 28. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 29. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 30. | 8T-4192M | [1] | BOLT(M12X1.75X25-MM) | |
| 31. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 33. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 34. | 8T-6974M | [1] | BOLT(M6X1X80-MM) | |
| 35. | 9M-4972 | [1] | CLIP(LOOP) | |
| 36. | 9X-6165 | [1] | WASHER(6.5X22X2.5-MM THK) | |
| 37. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 38. | 204-2281 | [4] | STRAP-CABLE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
