卡特零件查询（AP-1055E） 336-7905: LINES GP-RETURN
广数供应链运营团队, 16 02月, 2025，浏览：
364 次

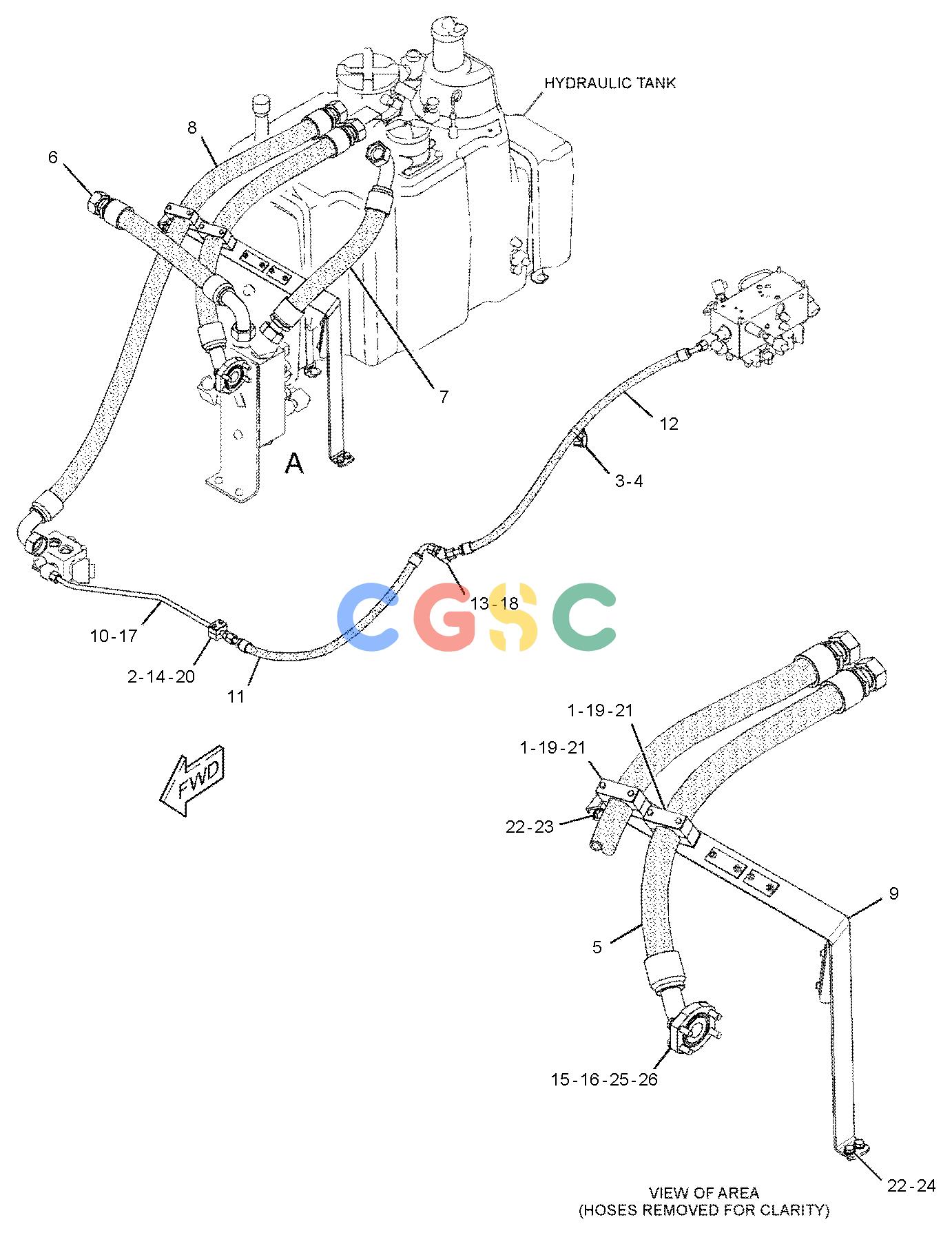

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7952 | [2] | COVER | |
| 2. | 107-4749 | [1] | PLATE | |
| 3. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 4. | 204-2281 | [2] | STRAP-CABLE | |
| 5. | 338-5376I | [1] | HOSE AS | |
| 6. | 338-5377I | [1] | HOSE AS | |
| 7. | 338-5378I | [1] | HOSE AS | |
| 8. | 338-5379I | [1] | HOSE AS | |
| 9. | 341-1037 | [1] | PLATE AS | |
| 10. | 345-7867 | [1] | TUBE AS | |
| 11. | 348-7110I | [1] | HOSE AS | |
| 12. | 176-0140I | [1] | HOSE AS | |
| 13. | 148-8380 | [1] | ELBOW AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8988 | [1] | ELBOW | |
| 14. | 1G-8781 | [2] | CLAMP | |
| 15. | 1P-4582 | [2] | FLANGE-HALF | |
| 16. | 4J-0527 | [1] | SEAL-O-RING | |
| 17. | 6V-8398 | [1] | SEAL-O-RING | |
| 18. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 19. | 7R-7942 | [4] | CLAMP | |
| 20. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 21. | 8T-3844M | [4] | BOLT(M6X1X70-MM) | |
| 22. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 24. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 25. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 26. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
