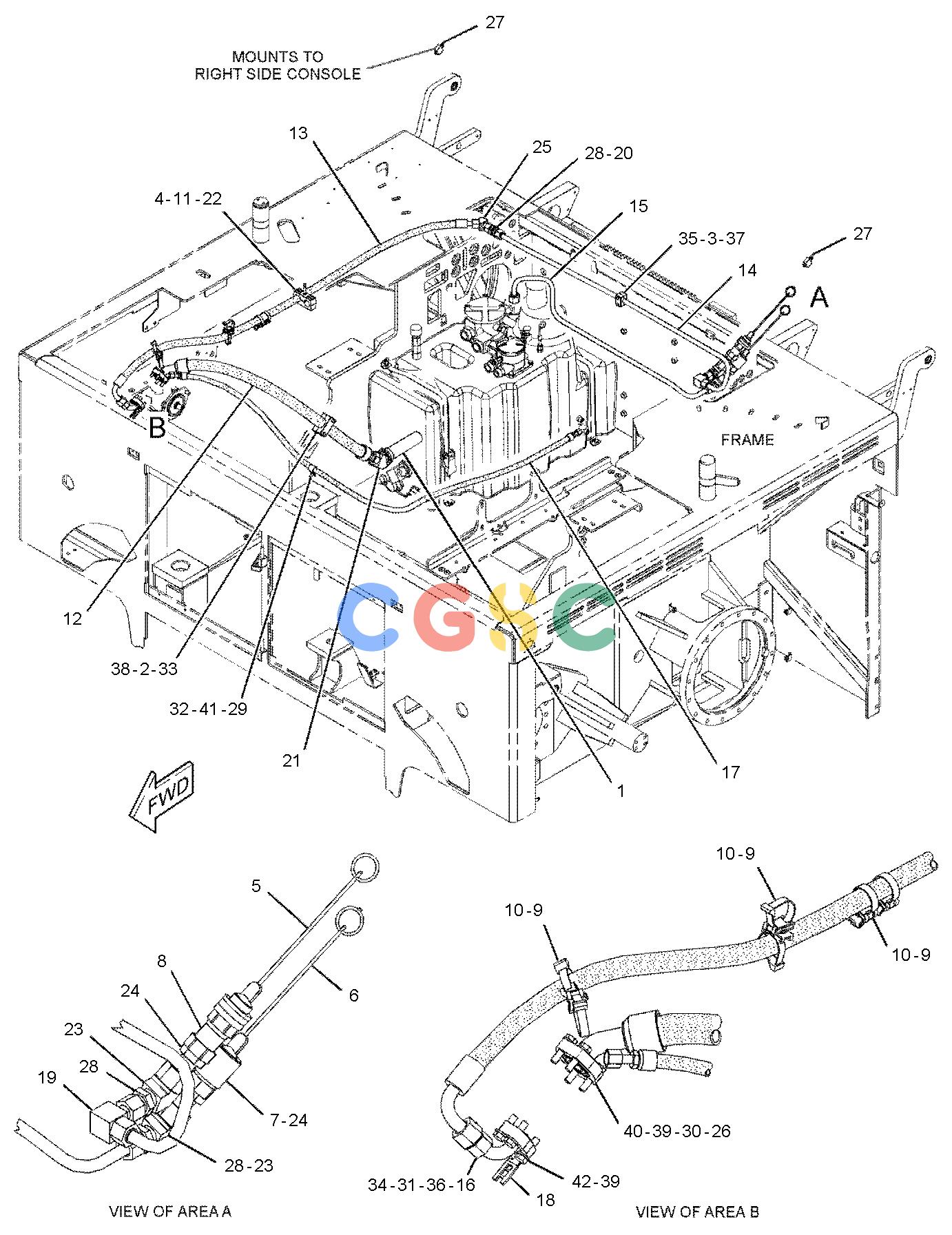

卡特零件查询（AP-1055E） 336-7919: LINES GP-TAMPER
广数供应链运营团队, 16 02月, 2025，浏览：
274 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-7663 | [1] | STRAINER AS(HYDRAULIC TANK) | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 2. | 7R-7952 | [1] | COVER | |
| 3. | 7V-5628 | [1] | PLATE(TOP) | |
| 4. | 154-4892M | [1] | BOLT-STACKING(M8X1.25X61-MM) | |
| 5. | 165-5694 | [1] | PLUG-DUST | |
| 6. | 165-5695 | [1] | CAP-DUST | |
| 7. | 173-7638J | [1] | FITTING AS | |
| 8. | 173-7639J | [1] | COUPLING GP | |
| 9. | 200-6345 | [4] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 10. | 204-2281 | [8] | STRAP-CABLE | |
| 11. | 206-0452 | [1] | PLATE | |
| 12. | 339-3661I | [1] | HOSE AS | |
| 13. | 341-0990I | [1] | HOSE AS | |
| 14. | 341-0995 | [1] | TUBE AS | |
| 15. | 341-1031 | [1] | TUBE AS | |
| 16. | 347-4415 | [1] | ADAPTER-ELBOW | |
| 17. | 348-7113I | [1] | HOSE AS | |
| 18. | 132-5789 | [1] | CLIP(LADDER) | |
| 19. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 20. | 148-8455 | [1] | UNION AS | |
| | 6V-8997 | [1] | UNION | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 21. | 153-6238 | [1] | ELBOW AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 6V-9006 | [1] | ELBOW | |
| 22. | 154-4884 | [2] | CLAMP-HALF | |
| 23. | | [2] | ELBOW AS |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 124-0195 | [1] | ELBOW | |
| 24. | 164-5548 | [2] | COUPLING AS | |
| | | | (EACH INCLUDES) |
| | 4I-6141 | [1] | ADAPTER | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 25. | 171-6723 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-8899 | [1] | ELBOW | |
| 26. | 1P-4578 | [2] | FLANGE-HALF | |
| 27. | 1V-6652Y | [2] | SWITCH AS-TOGGLE(FAN CONTROL) | |
| 28. | 2P-1293 | [3] | LOCKNUT(1-3/16-12-THD) | |
| 29. | 3S-8665 | [1] | CLIP(LOOP) | |
| 30. | 4J-0522 | [1] | SEAL-O-RING | |
| 31. | 4J-5267 | [1] | SEAL-O-RING | |
| 32. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 33. | 6R-2678 | [2] | CLAMP | |
| 34. | 6V-9746 | [1] | SEAL-O-RING | |
| 35. | 7V-5626 | [2] | CLAMP | |
| 36. | 8C-3205 | [2] | FLANGE-HALF | |
| 37. | 8C-8451M | [2] | BOLT(M6X1X40-MM) | |
| 38. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 39. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 40. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 41. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 42. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 191-6944J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RINGS) |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
