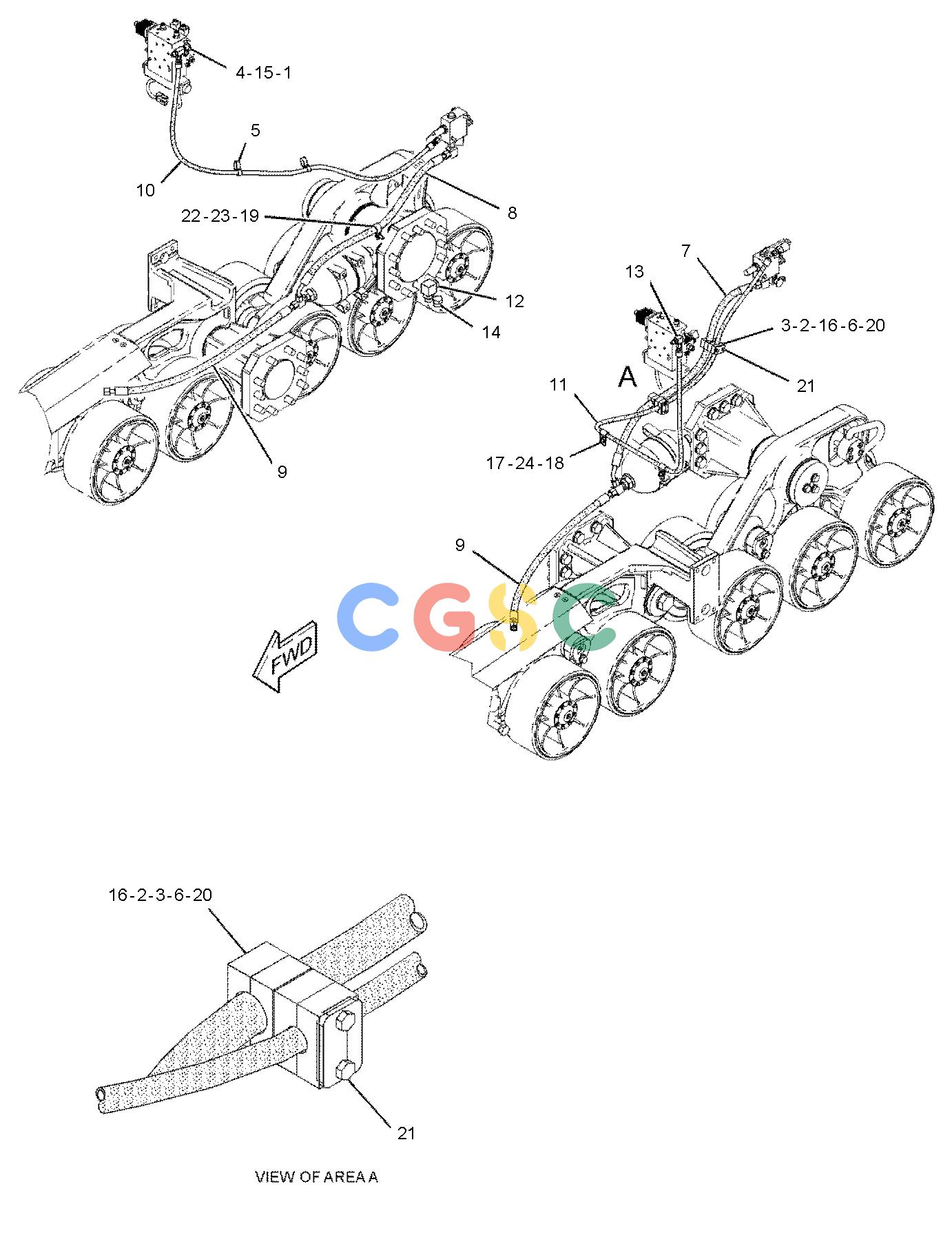

卡特零件查询（AP-1055E） 336-7902: LINES GP-TRACK TENSION
广数供应链运营团队, 16 02月, 2025，浏览：
233 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 7R-7954 | [2] | PLATE | |
| 3. | 7V-5628 | [2] | PLATE(TOP) | |
| 4. | 165-7014 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-3309 | [1] | TEE | |
| 5. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 6. | 196-4205M | [4] | BOLT-STACKING(M6X1X44-MM) | |
| 7. | 341-0984I | [1] | HOSE AS | |
| 8. | 341-0986I | [1] | HOSE AS | |
| 9. | 345-7859I | [2] | HOSE AS | |
| 10. | 354-0552I | [1] | HOSE AS | |
| 11. | 354-0835I | [1] | HOSE AS | |
| 12. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 13. | 148-8368 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8627 | [1] | ELBOW | |
| 14. | | [1] | PLUG AS |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 15. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 16. | 1G-9960 | [4] | CLAMP | |
| 17. | 4K-8302 | [2] | CLIP(LOOP) | |
| 18. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 19. | 7C-4354 | [1] | CLIP | |
| 20. | 7V-6089 | [4] | CLAMP | |
| 21. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 22. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 24. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
