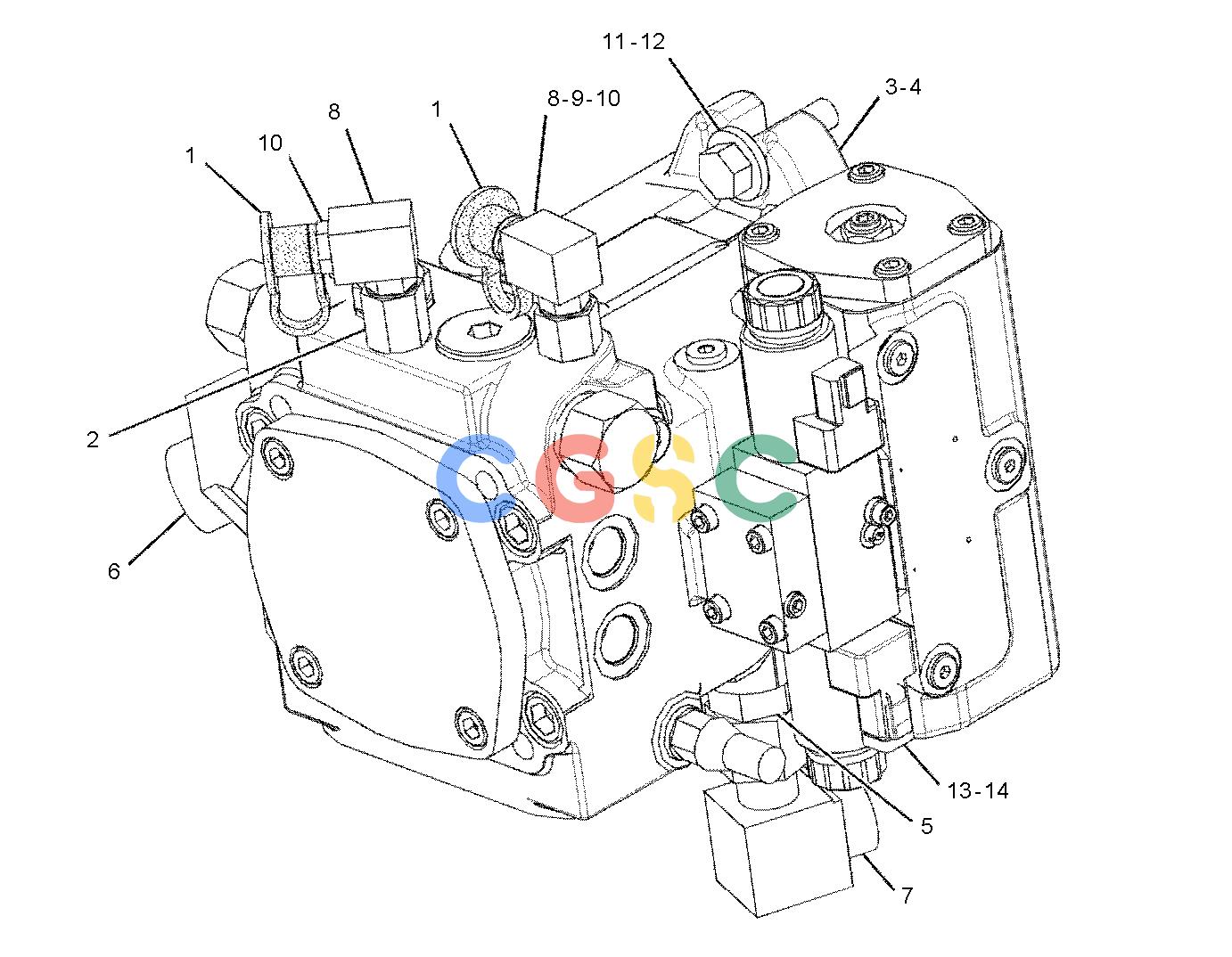

卡特零件查询（AP-1055E） 336-7925: PUMP & MTG GP-GENERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
447 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 165-6365 | [1] | FITTING AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 7W-7381 | [1] | FITTING-OUTLET | |
| 3. | 337-4017Y | [1] | PUMP GP-PISTON(GENERATOR) | |
| 4. | 117-8801 | [1] | SEAL-O-RING | |
| 5. | 148-8322 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8640 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 148-8355 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9005 | [1] | ELBOW | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 7. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 8. | 150-3065 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 9. | 150-4047 | [1] | ADAPTER AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8T-2353 | [1] | ADAPTER | |
| 10. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 11. | 8T-4835 | [2] | BOLT(1/2-13X2-IN) | |
| 12. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 13. | 8T-8737 | [2] | PLUG-SEAL | |
| 14. | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | Y | | SEPARATE ILLUSTRATION |
