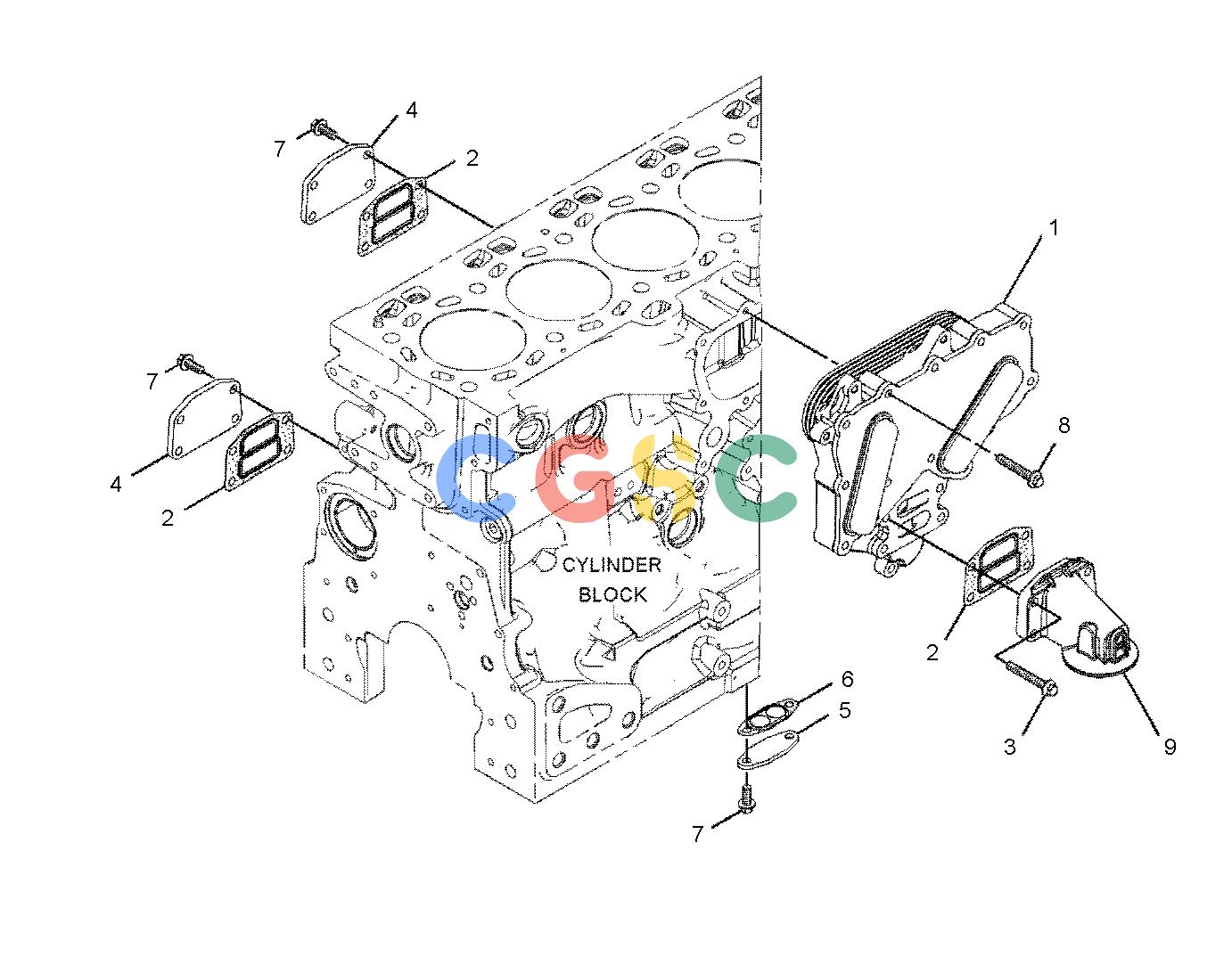

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 326-7401Y | [1] | COOLER GP-ENGINE OIL | |
| 2. | 225-7944 | [3] | GASKET | |
| 3. | 6I-0455M | [4] | BOLT(M8X1.25X55-MM) | |
| 4. | 232-3751 | [2] | PLATE | |
| 5. | 277-2537 | [1] | PLATE | |
| 6. | 277-2538 | [1] | GASKET | |
| 7. | 6I-0217M | [10] | BOLT(M8X1.25X20-MM) | |
| 8. | 6I-4793M | [7] | BOLT(M8X1.25X50-MM) | |
| 9. | 283-4559 | [1] | HEAD AS-OIL FILTER | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
