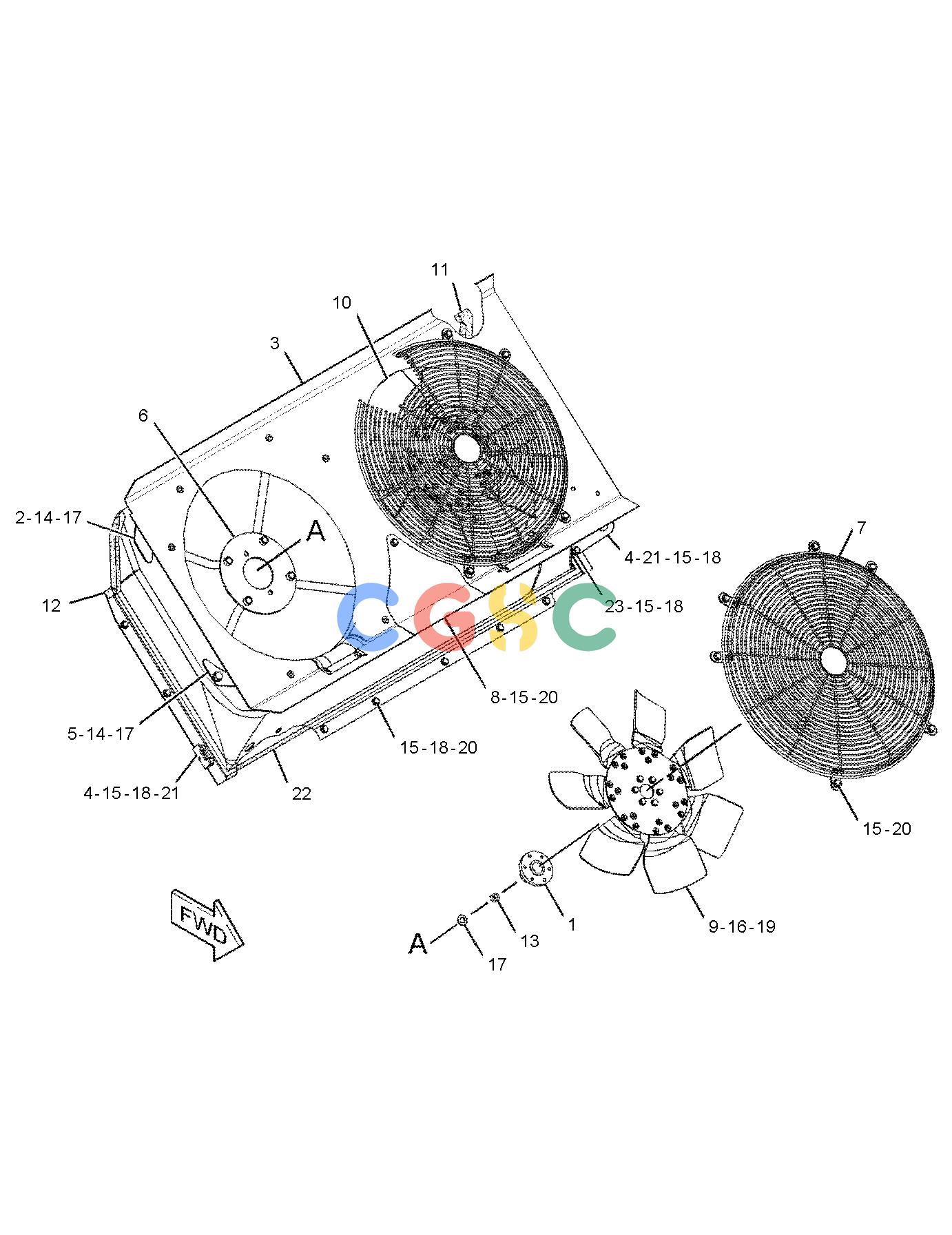

卡特零件查询（AP-1055E） 341-1944: FAN GP-SUCTION
广数供应链运营团队, 16 02月, 2025，浏览：
670 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 238-6852 | [2] | ADAPTER-FAN | |
| 2. | 275-8843 | [4] | PLATE | |
| 3. | 337-0833 | [1] | SHROUD AS-FAN | |
| 4. | 343-4083 | [2] | PLATE | |
| 5. | 343-4260 | [4] | PLATE | |
| 6. | 343-4264 | [2] | SUPPORT AS | |
| 7. | 343-4265 | [2] | GUARD AS-FAN | |
| 8. | 343-4266 | [1] | COVER | |
| 9. | 343-4383 | [1] | FAN AS-SUCTION(7-BLADE) | |
| 10. | 343-4384 | [1] | FAN AS-SUCTION(7-BLADE) | |
| 11. | 352-8046 | [1] | INSULATION | |
| 12. | 352-8047 | [1] | INSULATION | |
| 13. | 6B-6683 | [2] | NUT(5/8-18-THD) | |
| 14. | 7X-2553M | [8] | BOLT(M16X2X40-MM) | |
| 15. | 7X-7729 | [49] | WASHER(11X25X3-MM THK) | |
| 16. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4122 | [10] | WASHER-HARD(17X32X3.5-MM THK) | |
| 18. | 8T-4133M | [18] | NUT(M10X1.5-THD) | |
| 19. | 8T-4136M | [12] | BOLT(M10X1.5X25-MM) | |
| 20. | 8T-4195M | [27] | BOLT(M10X1.5X30-MM) | |
| 21. | 8T-4196M | [3] | BOLT(M10X1.5X35-MM) | |
| 22. | 5P-5930D | | SEAL(3-M) | |
| 23. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
