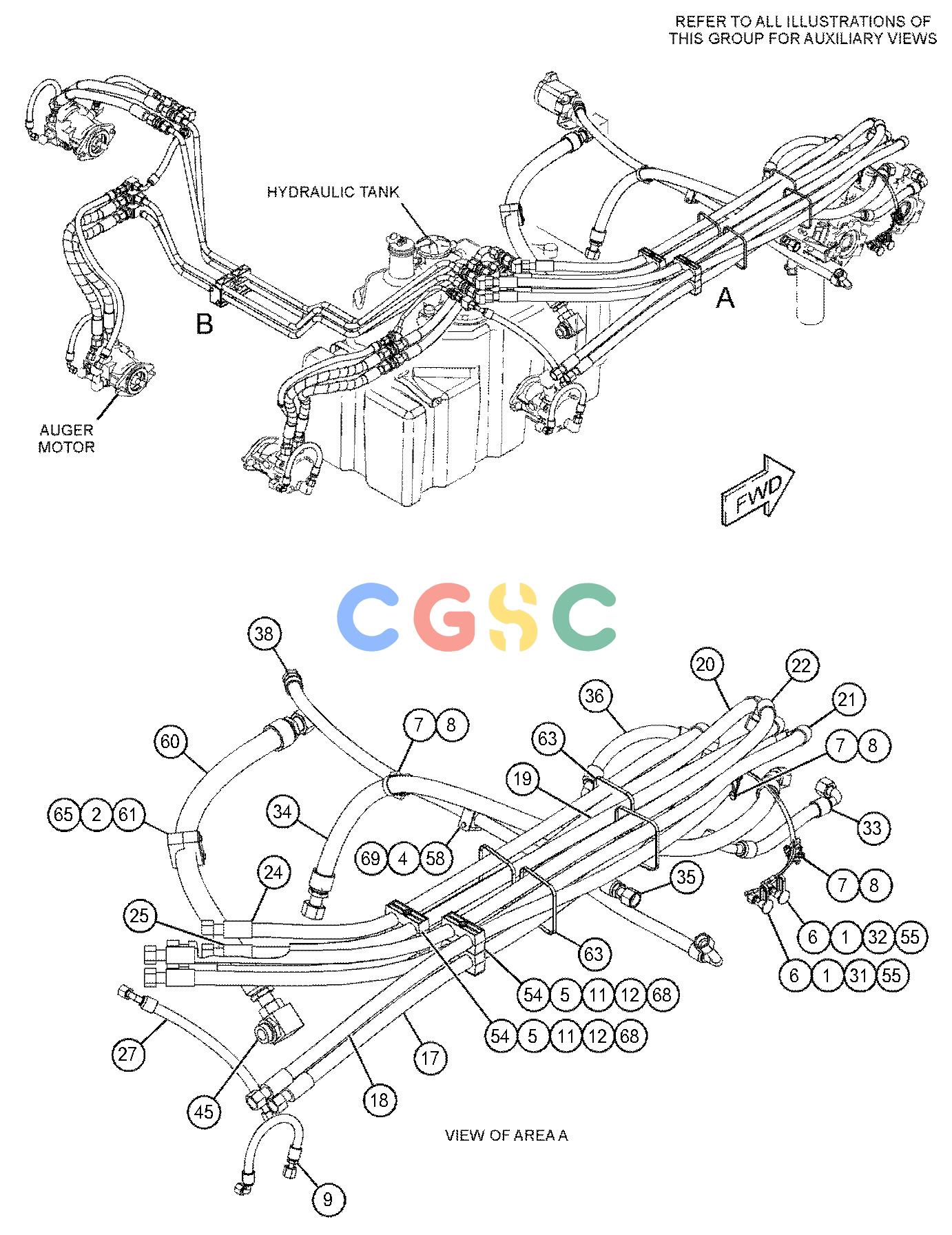

卡特零件查询（AP-1055E） 354-0855: LINES GP-CONVEYOR
广数供应链运营团队, 16 02月, 2025，浏览：
885 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 7R-7952 | [1] | COVER | |
| 3. | 102-8705 | [2] | PLATE(TOP) | |
| 4. | 143-9644 | [1] | PLATE-RETAINER | |
| 5. | 154-4892M | [2] | BOLT-STACKING(M8X1.25X61-MM) | |
| 6. | 185-6250 | [2] | FITTING AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 7. | 200-6345 | [3] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 8. | 204-2281 | [5] | STRAP-CABLE | |
| 9. | 204-2592I | [4] | HOSE AS | |
| 10. | 206-0451M | [2] | BOLT-STACKING(M8X1.25X44-MM) | |
| 11. | 206-0452 | [4] | PLATE | |
| 12. | 207-4499 | [2] | PLATE-COVER | |
| 13. | 339-3610 | [1] | TUBE AS | |
| 14. | 339-3611 | [1] | TUBE AS | |
| 15. | 339-3612 | [1] | TUBE AS | |
| 16. | 339-3613 | [1] | TUBE AS | |
| 17. | 339-3616I | [1] | HOSE AS | |
| 18. | 339-3617I | [1] | HOSE AS | |
| 19. | 339-3618I | [1] | HOSE AS | |
| 20. | 339-3619I | [1] | HOSE AS | |
| 21. | 339-3620I | [1] | HOSE AS | |
| 22. | 339-3621I | [1] | HOSE AS | |
| 23. | 339-3622I | [2] | HOSE AS | |
| 24. | I | [1] | HOSE AS |
| 25. | I | [1] | HOSE AS |
| 26. | 339-3627I | [1] | HOSE AS | |
| 27. | I | [1] | HOSE AS |
| 28. | 339-3652I | [1] | HOSE AS | |
| 29. | 339-3653I | [1] | HOSE AS | |
| 30. | 341-0992 | [1] | BRACKET AS | |
| 31. | 341-0999I | [1] | HOSE AS | |
| 32. | 341-1000I | [1] | HOSE AS | |
| 33. | 341-1001 | [1] | TUBE AS | |
| 34. | 341-1004I | [1] | HOSE AS | |
| 35. | 345-0236 | [1] | HOSE AS | |
| 36. | 345-0237 | [1] | HOSE AS | |
| 37. | 348-7116I | [1] | HOSE AS | |
| 38. | 351-7057I | [1] | HOSE AS | |
| 39. | 354-3571I | [1] | HOSE AS | |
| 40. | 354-3572I | [1] | HOSE AS | |
| 41. | 366-7475I | [2] | HOSE AS | |
| 42. | 368-9971I | [1] | HOSE AS | |
| 43. | I | [1] | HOSE AS |
| 44. | 373-9387I | [1] | HOSE AS | |
| 45. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 46. | 148-8375 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 47. | 148-8376 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8983 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 48. | 148-8380 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8988 | [1] | ELBOW | |
| 49. | 148-8444 | [2] | TEE AS-SWIVEL | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 50. | 148-8455 | [10] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8997 | [1] | UNION | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 51. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 52. | 4V-0611 | [8] | CLAMP | |
| 53. | 154-4884 | [8] | CLAMP-HALF | |
| 54. | 170-4735 | [2] | RING-RETAINING | |
| 55. | 171-6723 | [6] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-8899 | [1] | ELBOW | |
| 56. | 206-1511 | [2] | CLAMP-HALF | |
| 57. | 2P-1293 | [12] | LOCKNUT(1-3/16-12-THD) | |
| 58. | 368-9972I | [1] | HOSE AS | |
| 59. | 6R-2678 | [2] | CLAMP | |
| 60. | 6V-9169 | [4] | NUT(13/16-16-THD) | |
| 61. | 7K-1181 | [12] | STRAP-CABLE | |
| 62. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 63. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 64. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 65. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 66. | 8T-6869M | [2] | BOLT(M8X1.25X60-MM) | |
| 67. | 9X-2480M | [2] | BOLT(M6X1X45-MM) | |
| 68. | 160-2247G | | SLEEVE-ABRASION(25.2-IN) | |
| 68A. | 160-2247G | | SLEEVE-ABRASION(27.8-IN) | |
| 68B. | 160-2247G | | SLEEVE-ABRASION(27.6-IN) | |
| 68C. | 160-2247G | | SLEEVE-ABRASION(25-IN) | |
| | G | | ORDER BY THE INCH |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
