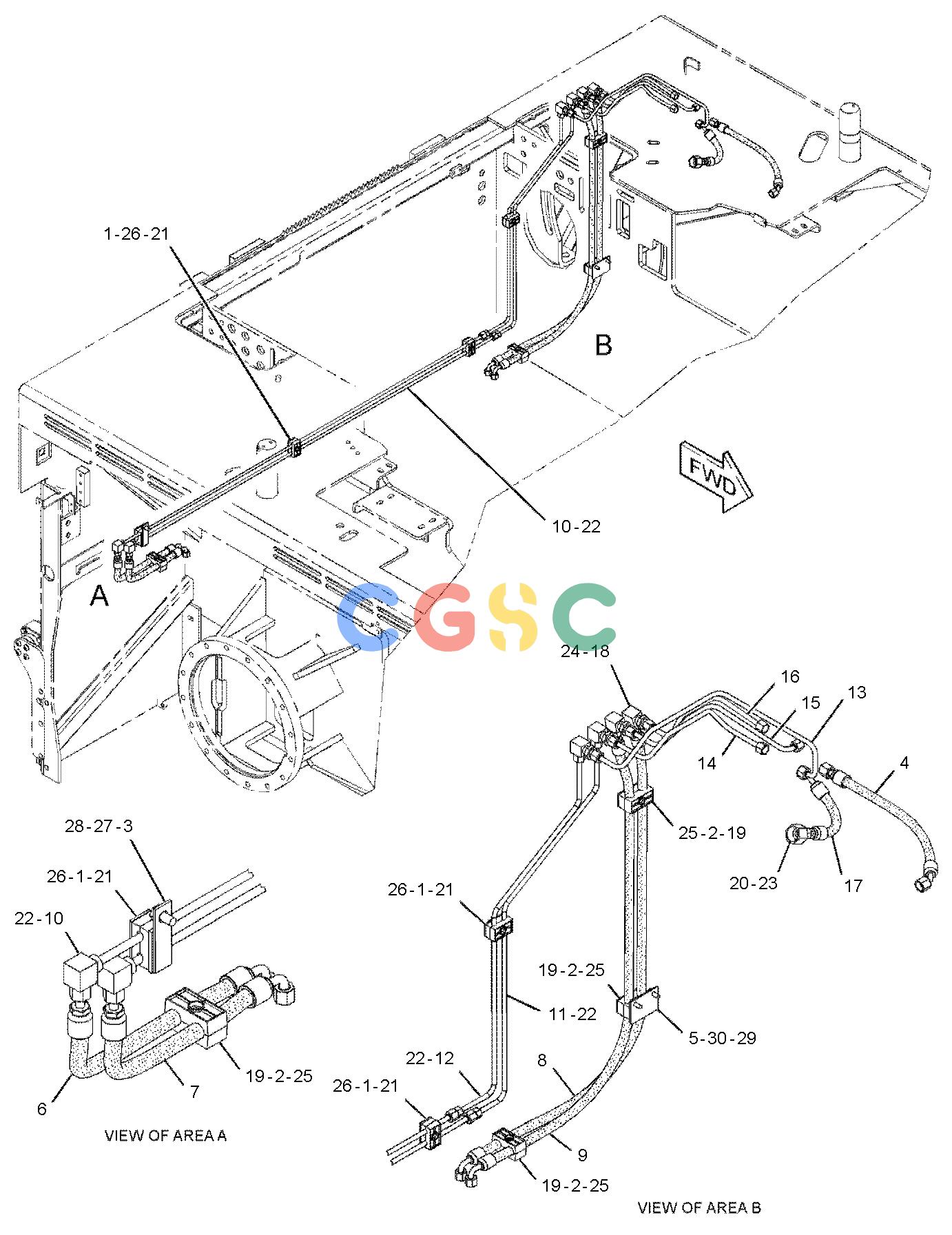

卡特零件查询（AP-1055E） 336-7901: LINES GP-CYLINDER
广数供应链运营团队, 16 02月, 2025，浏览：
698 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [8] | STRAP-CABLE | |
| 2. | 102-8703 | [4] | PLATE-COVER | |
| 3. | 177-2215 | [6] | STRAP-DUAL CLAMP | |
| 4. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 5. | 204-2281 | [2] | STRAP-CABLE | |
| 6. | 206-0452 | [2] | PLATE | |
| 7. | 339-3635I | [1] | HOSE AS | |
| 8. | 339-3636I | [2] | HOSE AS | |
| 9. | 339-3637I | [1] | HOSE AS | |
| 10. | 340-5391I | [1] | HOSE AS | |
| 11. | 340-5395I | [1] | HOSE AS | |
| 12. | 340-5396I | [1] | HOSE AS | |
| 13. | 150-4052 | [4] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-8993 | [1] | UNION | |
| 14. | 156-5306 | [8] | CLAMP-HALF | |
| 15. | 2P-1279 | [4] | LOCKNUT(9/16-18-THD) | |
| 16. | 7X-2537M | [4] | BOLT(M8X1.25X35-MM) | |
| 17. | 154-1420E | | SLEEVE(12.5-CM EACH) | |
| 17A. | 154-1420E | | SLEEVE(35-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
