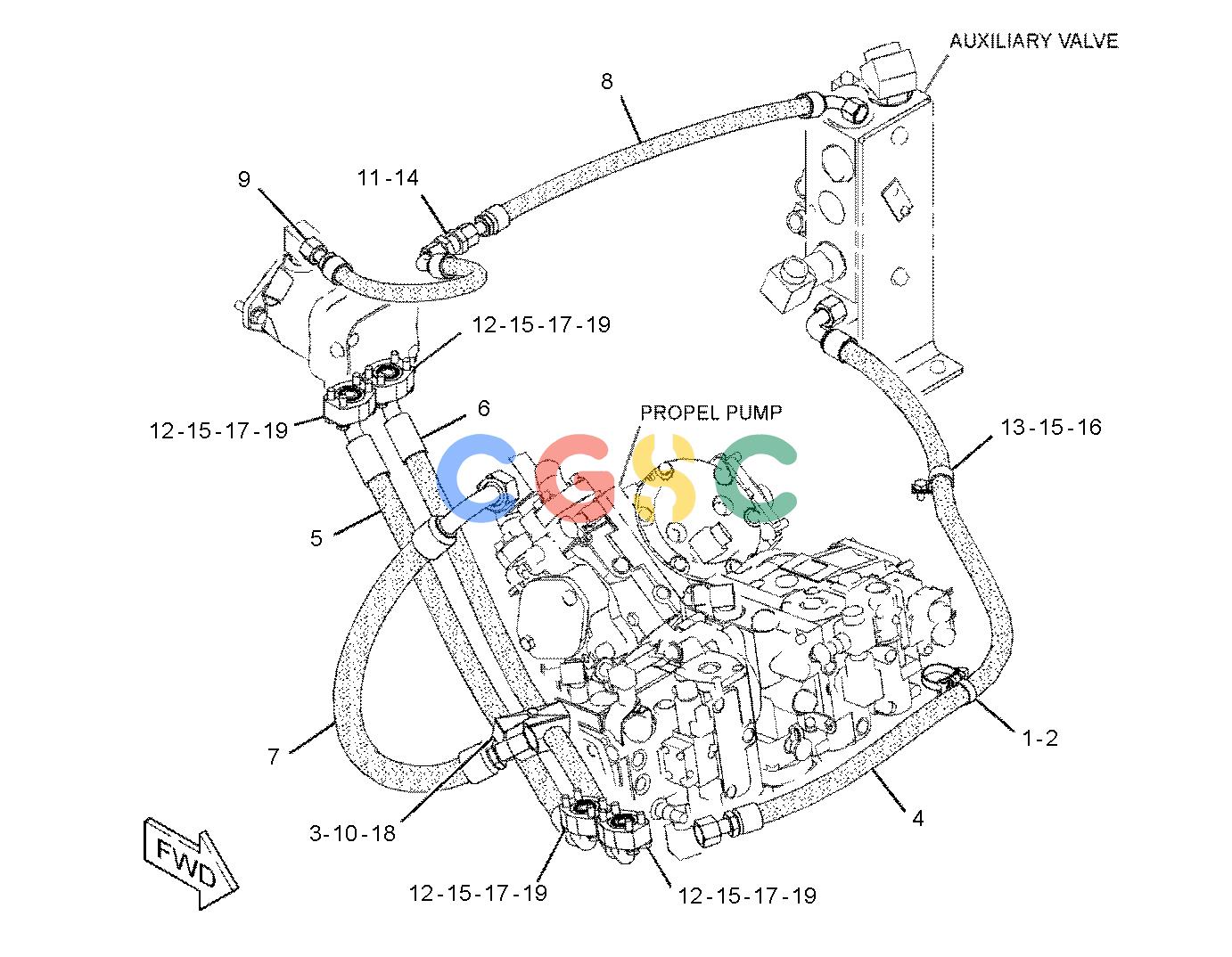

卡特零件查询（AP-1055E） 336-7928: LINES GP-GENERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
604 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 2. | 204-2281 | [2] | STRAP-CABLE | |
| 3. | 207-4499 | [1] | PLATE-COVER | |
| 4. | 340-5400I | [1] | HOSE AS | |
| 5. | 340-5401I | [1] | HOSE AS | |
| 6. | 340-5403I | [1] | HOSE AS | |
| 7. | 351-7058I | [1] | HOSE AS | |
| 8. | 353-5937I | [1] | HOSE AS | |
| 9. | 354-2960I | [1] | HOSE AS | |
| 10. | 154-4884 | [2] | CLAMP-HALF | |
| 11. | 169-7409 | [1] | UNION AS | |
| | 6V-8996 | [1] | UNION | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 12. | 1P-3702 | [2] | SEAL-RECTANGULAR | |
| 13. | 1P-3703 | [2] | SEAL-RECTANGULAR | |
| 14. | 6V-0400 | [4] | FLANGE-HALF | |
| 15. | 6V-1889 | [1] | CLIP(LOOP) | |
| 16. | 6V-9170 | [1] | NUT-BULKHEAD(1-14-THD) | |
| 17. | 8C-6877 | [8] | BOLT(7/16-14X1.75-IN) | |
| 18. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 20. | 8T-4182M | [8] | BOLT(M10X1.5X45-MM) | |
| 21. | 8T-5360 | [8] | WASHER(12X22.5X2.5-MM THK) | |
| 22. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 23. | 8T-9403 | [4] | FLANGE-HALF | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
