卡特零件查询（AP-1055E） 360-0075: LINES GP-EXTENDER

广数供应链运营团队, 16 02月, 2025，浏览： 417 次

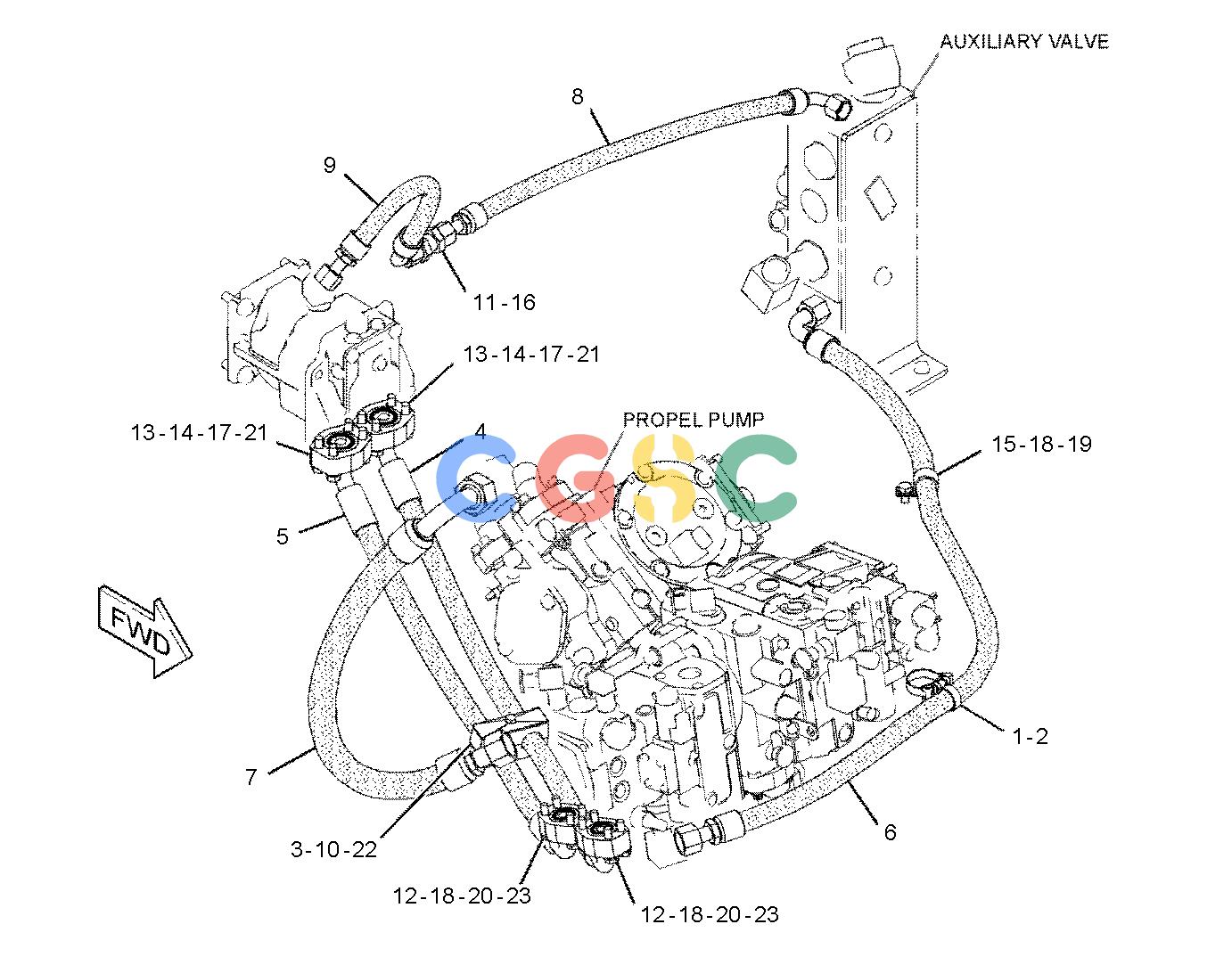

Pos.	Part No	Qty	Parts name
1.	102-8703	[4]	PLATE-COVER
2.	102-8705	[2]	PLATE(TOP)
3.	228-5778	[1]	PLATE AS
	102-8704	[1]	PLATE
4.	248-0869I	[1]	HOSE AS
5.	258-1547	[1]	PLATE AS
6.	349-4293I	[1]	HOSE AS
7.	349-4304I	[1]	HOSE AS
8.	360-1283I	[1]	HOSE AS
9.	360-1284I	[1]	HOSE AS
10.	360-1285	[2]	TUBE AS
11.	360-1286	[1]	TUBE AS
12.	360-1287	[1]	TUBE AS
13.	360-1288	[1]	TUBE AS
14.	360-1289	[1]	TUBE AS
15.	360-1290	[1]	TUBE AS
16.	360-1291	[1]	TUBE AS
17.	360-1318I	[1]	HOSE AS
18.	148-8377	[4]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-8980	[1]	ELBOW
19.	4V-0611	[8]	CLAMP
20.	148-8417	[1]	REDUCER AS
	6V-8397	[1]	SEAL-O-RING
	6V-8941	[1]	REDUCER
21.	206-6409	[8]	CLAMP-HALF
22.	6V-8397	[4]	SEAL-O-RING
23.	9X-6580	[1]	NUT(1-3/16-12-THD)
24.	6V-9168	[4]	NUT(11/16-16-THD)
25.	7X-0818M	[2]	BOLT(M8X1.25X45-MM)
26.	7X-2537M	[4]	BOLT(M8X1.25X35-MM)
27.	8T-4121	[1]	WASHER-HARD(11X21X2.5-MM THK)
28.	8T-4137M	[1]	BOLT(M10X1.5X20-MM)
29.	8T-4189M	[2]	BOLT(M8X1.25X20-MM)
30.	8T-4224	[2]	WASHER-HARD(8.8X16X2-MM THK)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
