卡特零件查询（AP-1055E） 291-9243: MOTOR GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
559 次

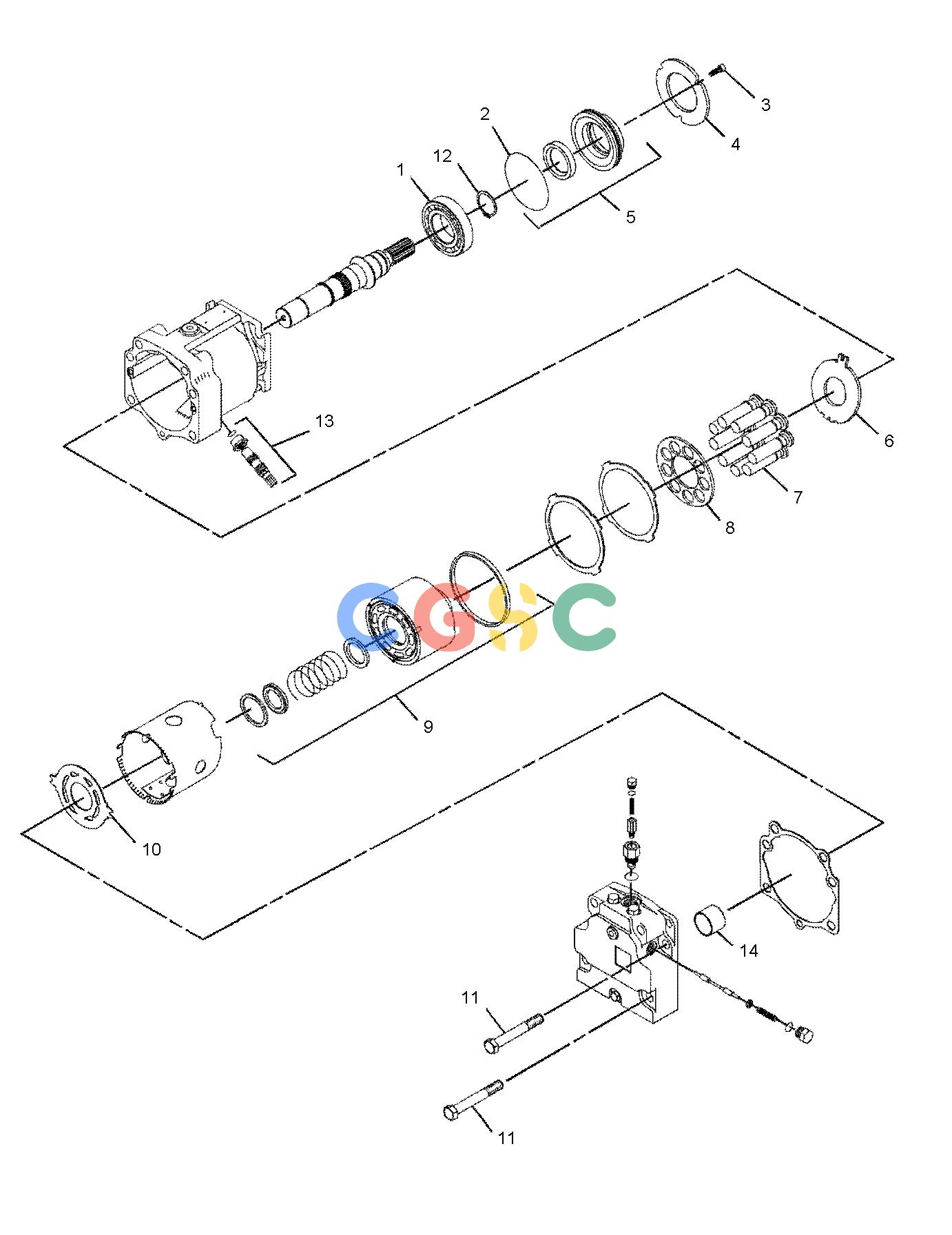

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 260-7515 | [1] | BEARING-ROLLER | |
| 2. | 112-9287 | [1] | KIT-OVERHAUL SEAL | |
| 3. | 8T-4138M | [3] | BOLT(M6X1X20-MM) | |
| 4. | 5E-8731 | [1] | PLATE | |
| 5. | 156-9684 | [1] | KIT-SHAFT SEAL | |
| | | | (INCLUDES CARRIER SEAL, LIP SEAL & O-RING SEAL) |
| 6. | 276-5348 | [1] | PLATE-THRUST | |
| 7. | 109-7784 | [9] | PISTON | |
| 8. | 5E-8702 | [1] | GUIDE | |
| 9. | 121-2514 | [1] | KIT-CYLINDER BLOCK | |
| 10. | 276-5347 | [1] | PLATE-VALVE | |
| 11. | 113-1034 | [6] | BOLT | |
| 12. | 1J-6474 | [1] | RING-RETAINING(EXTERNAL) | |
| 13. | 285-2001 | [1] | SENSOR-SPEED(PROPEL MOTOR) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 14. | 5E-8744 | [1] | BEARING | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | M | | METRIC PART |
