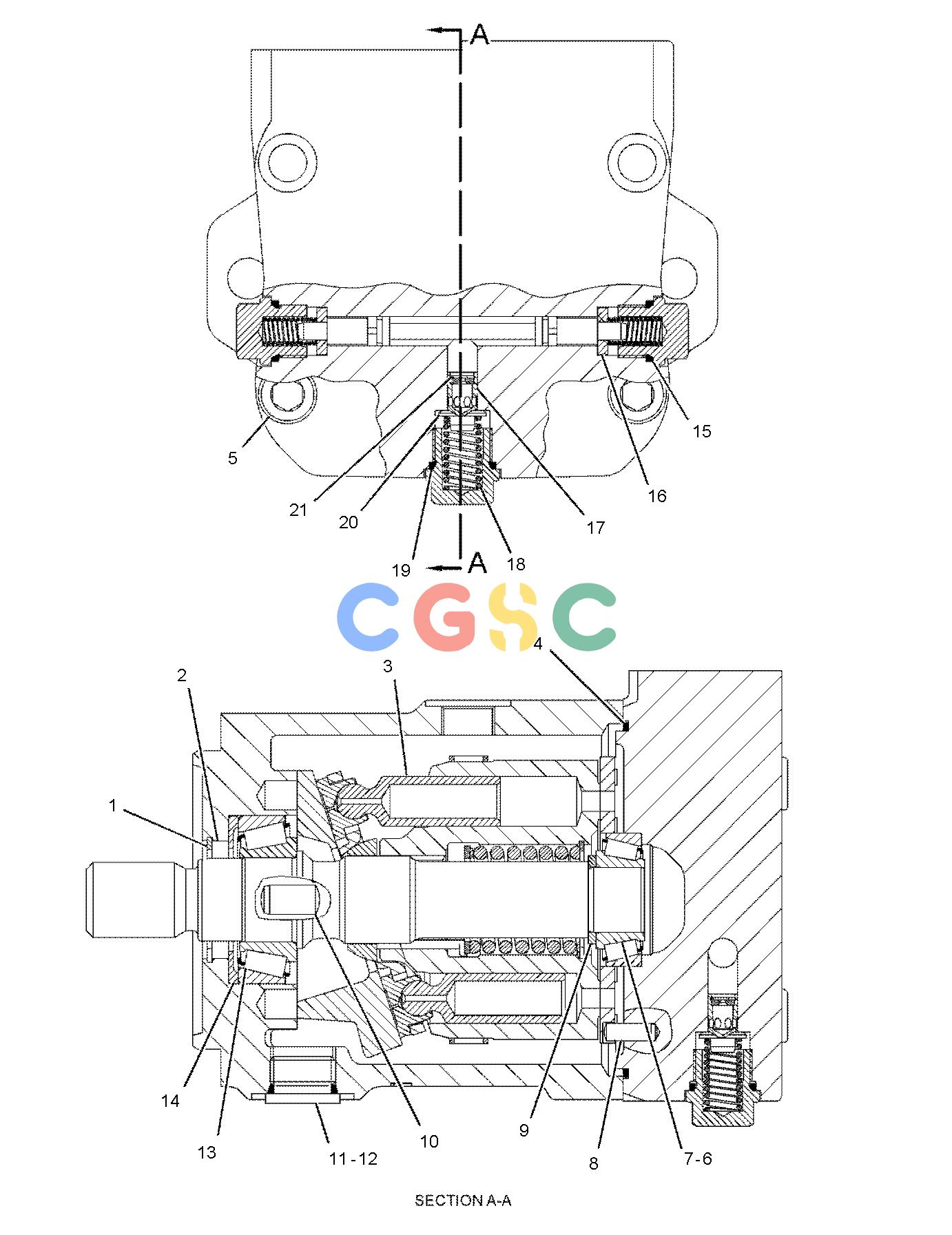

卡特零件查询（AP-1055E） 337-4018: MOTOR GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
185 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 213-4208 | [1] | RING-LOCK | |
| 2. | 185-0248J | [1] | SEAL-OIL | |
| 3. | 361-3947Y | [1] | ROTATING GP-PUMP | |
| 4. | 127-9485J | [1] | SEAL-O-RING | |
| 5. | 105-3485M | [4] | BOLT-SOCKET HEAD(M12X1.75X60-MM) | |
| 6. | 203-8609 | [1] | CUP-BEARING | |
| 7. | 105-3035 | [1] | CONE-BEARING | |
| 8. | 9X-8979 | [1] | DOWEL | |
| 9. | 148-1238 | [1] | SHIM(3-MM THK) | |
| 10. | 148-1970 | [2] | PIN-DOWEL | |
| 11. | 9S-8006 | [2] | PLUG(7/8-14-THD) | |
| 12. | 033-6027 | [2] | SEAL-O-RING | |
| 13. | 185-0263 | [1] | BEARING | |
| 14. | 185-0242 | [1] | PLATE | |
| 15. | 107-3117J | [2] | SEAL-O-RING | |
| 16. | 124-9899 | [2] | SPACER | |
| 17. | 113-0216 | [1] | ORIFICE | |
| 18. | 124-9901 | [1] | SPRING | |
| 19. | 6V-8351J | [1] | SEAL-O-RING | |
| 20. | 1G-6423 | [1] | VALVE-PISTON | |
| 21. | 125-4572 | [1] | RING-RETAINING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 369-4723J | [1] | KIT-SEAL | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
