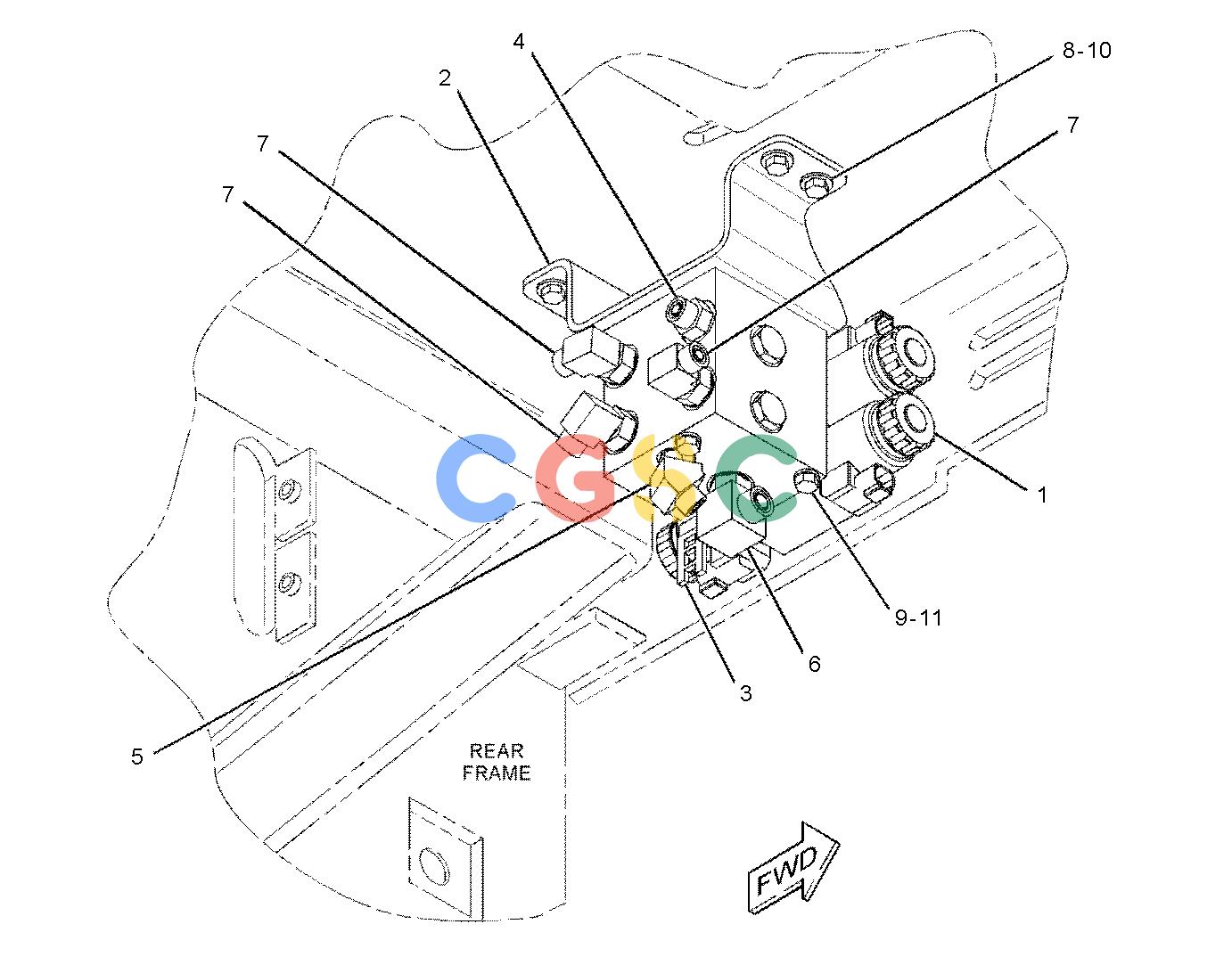

卡特零件查询（AP-1055E） 358-2336: VALVE & MOUNTING GP
广数供应链运营团队, 16 02月, 2025，浏览：
359 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 332-1453Y | [1] | VALVE GP-SOLENOID(MAIN FRAME EXTENSION) | |
| 2. | 358-2335 | [1] | BRACKET AS | |
| 3. | 132-5789 | [1] | CLIP(LADDER) | |
| 4. | 148-8318 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 5. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 6. | 148-8364 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 7. | 148-8374 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 8. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 7X-0457M | [3] | BOLT(M8X1.25X130-MM) | |
| 10. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 11. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
