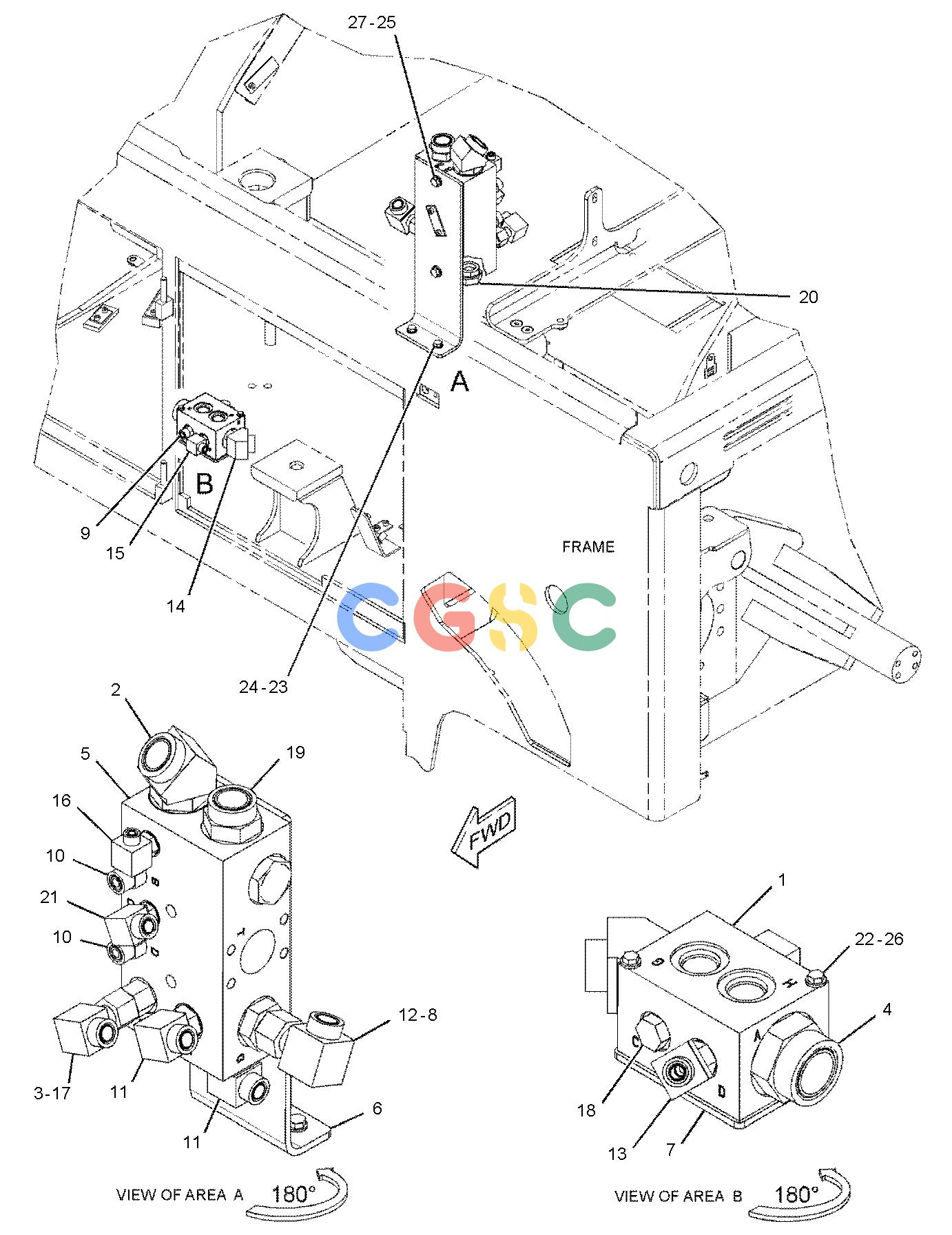

卡特零件查询（AP-1055E） 336-7896: VALVE & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
650 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-0003 | [1] | MANIFOLD | |
| 2. | 204-9379 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 204-9378 | [1] | ELBOW | |
| 3. | 205-3096 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8C-8498 | [1] | CONNECTOR-HYDRAULIC | |
| 4. | 205-4132 | [1] | CONNECTOR AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-8985 | [1] | CONNECTOR | |
| 5. | 339-3532 | [1] | VALVE GP-COOLER BYPASS(AUXILIARY) | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| 6. | 341-1030 | [1] | PLATE AS | |
| 7. | 351-7069 | [1] | PLATE | |
| 8. | 148-8323 | [1] | CONNECTOR AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9875 | [1] | CONNECTOR | |
| 9. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 10. | 148-8342 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8632 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 11. | 148-8347 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 12. | 148-8352 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9854 | [1] | ELBOW(SWIVEL) | |
| 13. | 148-8354 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 14. | 148-8355 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9005 | [1] | ELBOW | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 15. | 148-8364 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 16. | 148-8374 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 17. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 18. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 19. | 156-4283 | [1] | CONNECTOR AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-7926 | [1] | CONNECTOR | |
| 20. | 164-5616 | [1] | PLUG AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 9S-6130 | [1] | PLUG | |
| 21. | 281-5981 | [1] | ELBOW AS | |
| | 6V-8722 | [1] | ELBOW | |
| | 228-7091 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 22. | 7X-7888M | [2] | BOLT(M6X1X90-MM) | |
| 23. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 25. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 26. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 27. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
