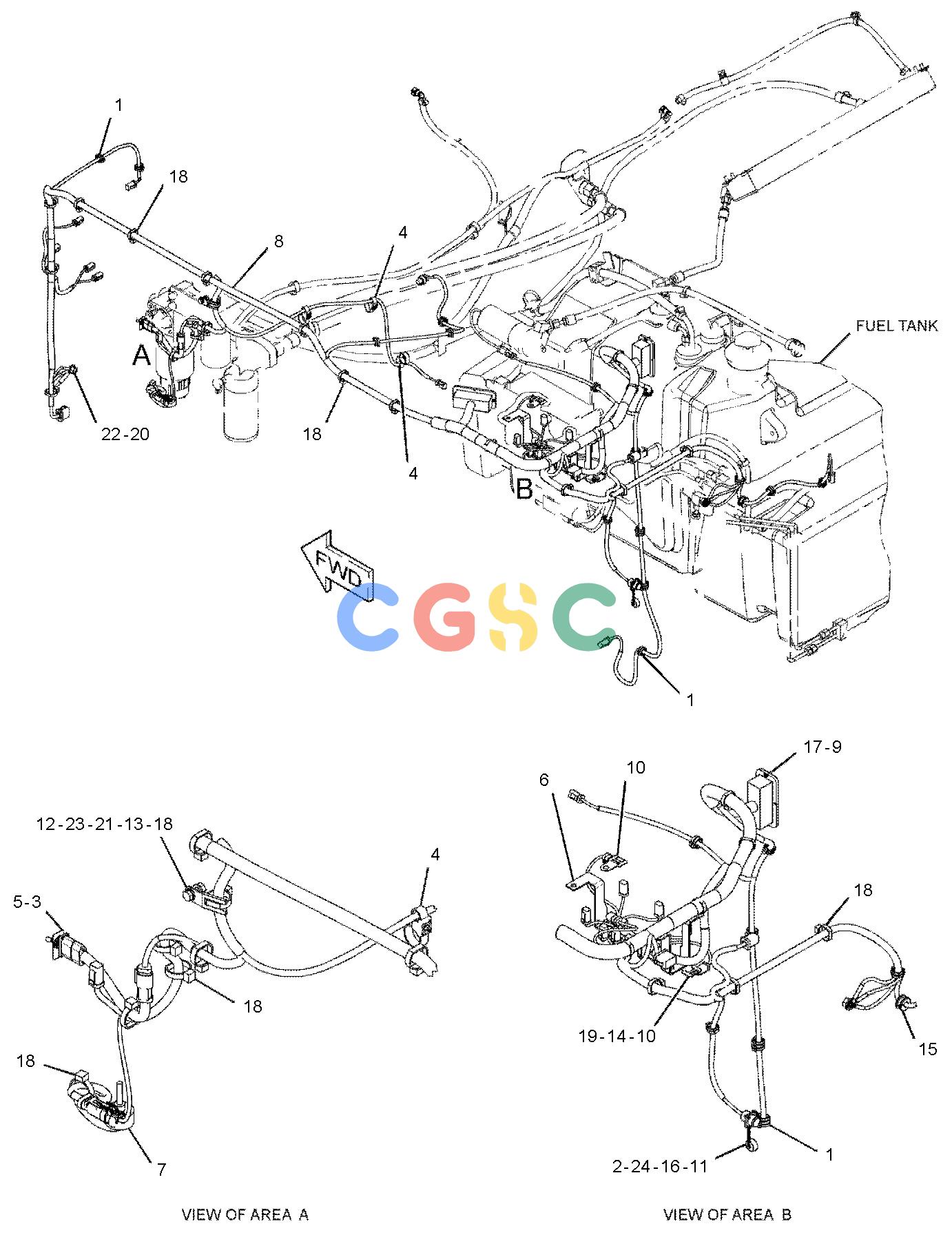

卡特零件查询（AP-1055E） 354-0849: WIRING GP-MACHINE
广数供应链运营团队, 16 02月, 2025，浏览：
368 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [32] | STRAP-CABLE | |
| 2. | 8D-9537 | [1] | CAP-DUST | |
| 3. | 165-5970Y | [1] | SWITCH GP-TOGGLE(FUEL PRIMING PUMP) | |
| 4. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 5. | 209-7659 | [1] | PLATE-INFORMATION(FUEL PRIMING PUMP ON, OFF) | |
| 6. | 283-8045 | [1] | PLATE AS | |
| 7. | 423-6434Y | [1] | SENSOR GP-LIQUID LEVEL(WATER IN FUEL)(WATER IN FUEL) | |
| 8. | 368-8493 | [1] | HARNESS AS-CHASSIS(LH) | |
| | 7R-7029 | [1] | CONNECTOR-RECEPTACLE(6-PIN) | |
| | 9X-3401 | [115] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [115] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2255 | [2] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2260 | [4] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [16] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 230-4011 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 264-7029 | [1] | SEAL-CONNECTOR | |
| | 281-8803 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 8T-8737 | [75] | PLUG-SEAL | |
| | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | 102-8801 | [2] | KIT-RECEPTACLE(12-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 103-0213 | [1] | RECEPTACLE AS-CONNECTOR(70-PIN) | |
| | 180-9340 | [74] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 172-9200 | [1] | SUPPRESSOR-ARC | |
| | 131-1492 | [1] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | 3K-4528 | [1] | TERMINAL-RING(6-GA TO 8-GA, 1/2-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(4-CM) | |
| | 2L-8071 | [5] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(60-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 9. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 10. | 130-5300 | [2] | CLIP | |
| 11. | 3C-6969M | [4] | NUT(M3X0.5-THD) | |
| 12. | 4P-7581 | [1] | CLIP(LADDER) | |
| 13. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 14. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 15. | 5D-7635 | [1] | GROMMET | |
| 16. | 6V-9671M | [4] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 17. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 18. | 7K-1181 | [25] | STRAP-CABLE | |
| 19. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 20. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 21. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 22. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 23. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 24. | 9B-1117 | [4] | LOCKWASHER | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
