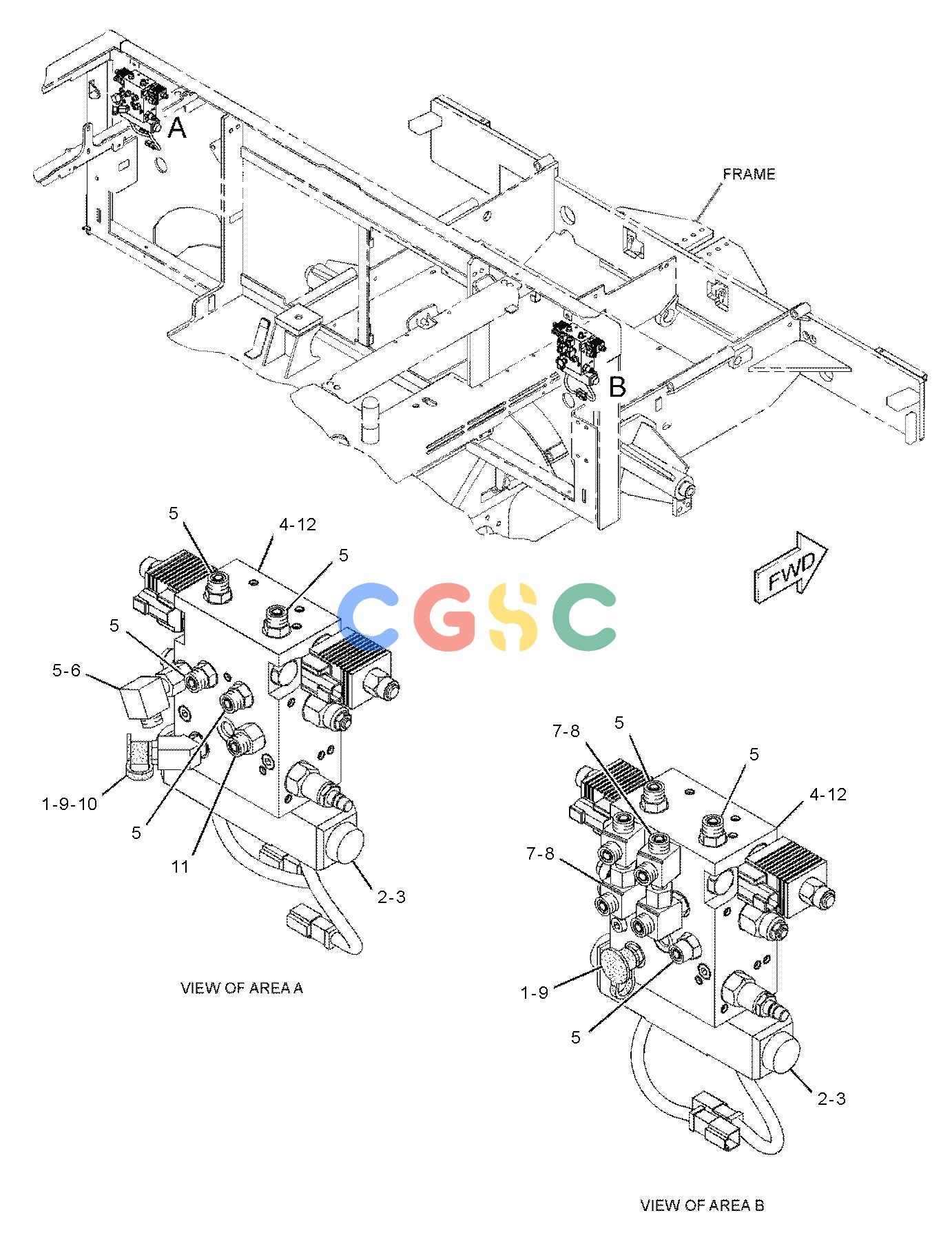

卡特零件查询（AP-1055E） 336-7898: VALVE & MTG GP-COUNTERBALANCE
广数供应链运营团队, 16 02月, 2025，浏览：
477 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 9X-6615M | [8] | BOLT(M5X0.8X30-MM) | |
| 3. | 219-3005J | [2] | VALVE GP-SOLENOID(TOW POINT CYLINDER) | |
| | | | (EACH INCLUDES) |
| | 155-1280 | [2] | COIL | |
| | 219-3006 | [1] | ORIFICE | |
| 4. | 292-9094Y | [2] | VALVE GP-COUNTERBALANCE(HOPPER HOIST, TOW POINT) | |
| 5. | 148-8336 | [9] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 6. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 7. | 148-8433 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 8. | 148-8435 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8781 | [1] | TEE | |
| 9. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 10. | 165-4931 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8077 | [1] | ELBOW | |
| 11. | 172-9287 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 7E-9898 | [1] | CONNECTOR | |
| 12. | 7I-8935M | [4] | BOLT-SOCKET HEAD(M8X1.25X75-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 155-1697J | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
