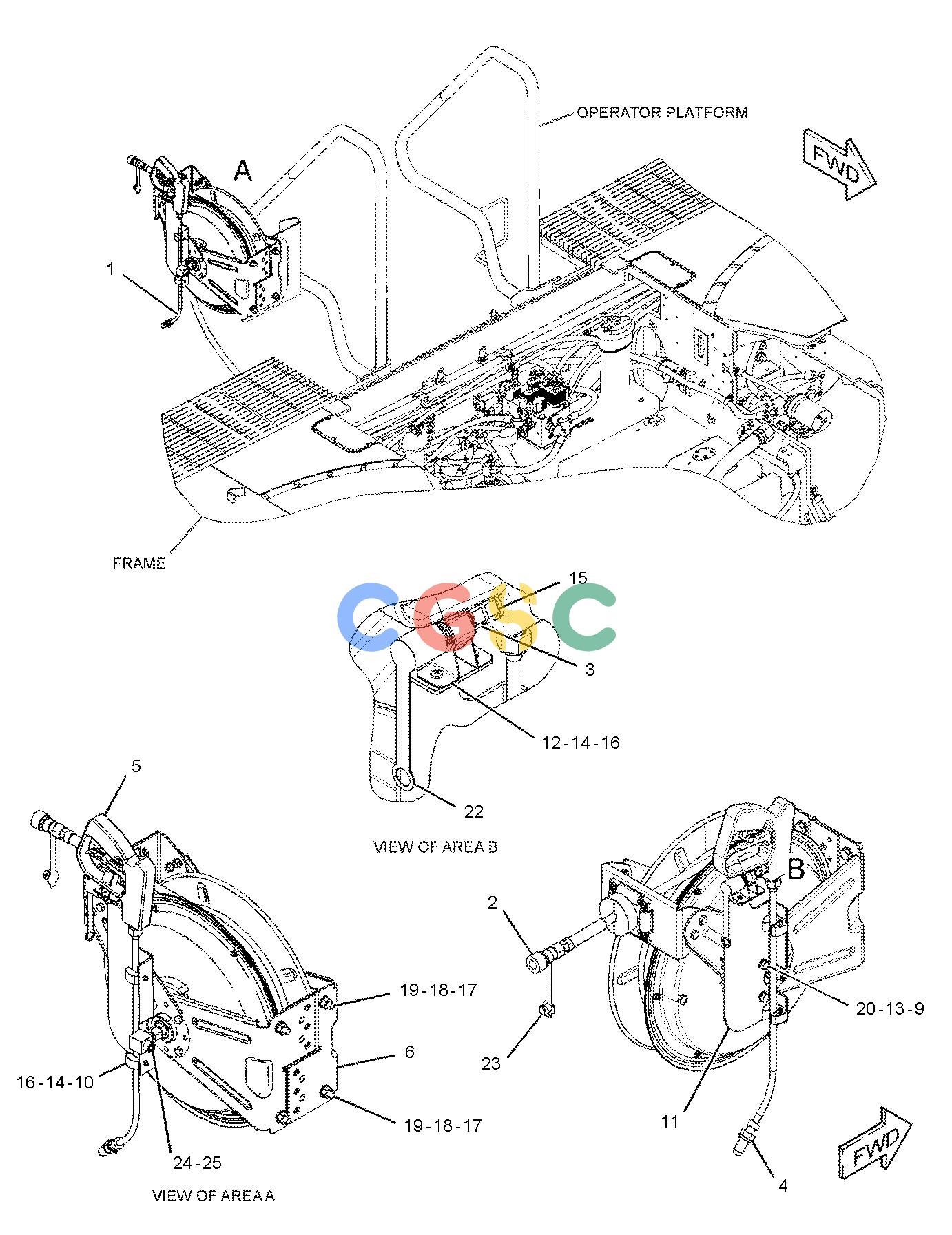

卡特零件查询（AP-1055E） 278-0357: REEL GP-WASHDOWN HOSE
广数供应链运营团队, 16 02月, 2025，浏览：
396 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-5370 | [1] | EXTENSION-CURVE | |
| 2. | 5R-5560 | [1] | COUPLING AS | |
| | 5R-7817 | [1] | SEAL | |
| | 5R-7818 | [1] | RING-BACKUP | |
| 3. | 5R-5561 | [1] | FITTING AS | |
| 4. | 6R-4315 | [1] | NOZZLE(SPRAY DOWN) | |
| 5. | 6R-4317 | [1] | GUN-SPRAY | |
| 6. | 308-3068Y | [1] | REEL GP-WASHDOWN HOSE | |
| 9. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 10. | 191-3588 | [2] | CLIP | |
| 11. | 311-7653 | [1] | BRACKET | |
| 12. | 206-4530 | [1] | CLIP | |
| 13. | 397-9301 | [2] | WASHER-HARD(11.5X20X15-MM THK) | |
| 14. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 15. | 5P-8998 | [1] | FITTING | |
| 16. | 6V-5210M | [4] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 17. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 19. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 20. | 8C-3121 | [2] | BOLT(5/16-18X1.5-IN) | |
| 22. | 8C-7992 | [1] | COVER-DUST | |
| 23. | 8C-7993 | [1] | COVER-DUST | |
| 24. | 389-3722 | [1] | CONNECTOR AS | |
| | 8C-6870 | [1] | CONNECTOR | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 25. | 297-7976 | [1] | ELBOW AS | |
| | 6V-9850 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
