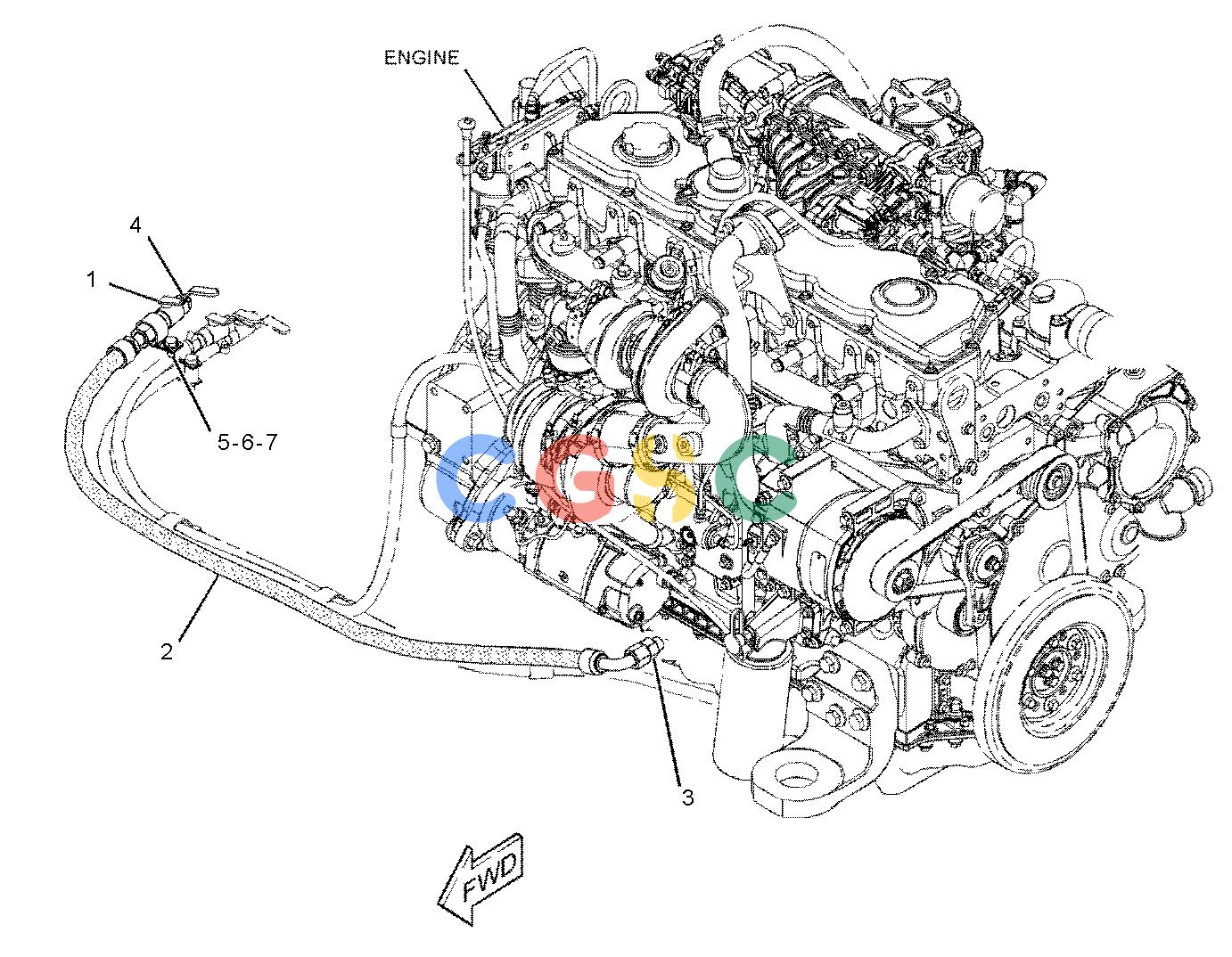

卡特零件查询（AP-1055E） 331-6970: DRAIN GP-ENGINE OIL
广数供应链运营团队, 16 02月, 2025，浏览：
416 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 109-0897 | [1] | VALVE-BALL(FUEL SUPPLY) | |
| 2. | 216-1343I | [1] | HOSE AS | |
| 3. | 148-8342 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8632 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 4. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 5. | 5P-7854 | [1] | CLIP | |
| 6. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
