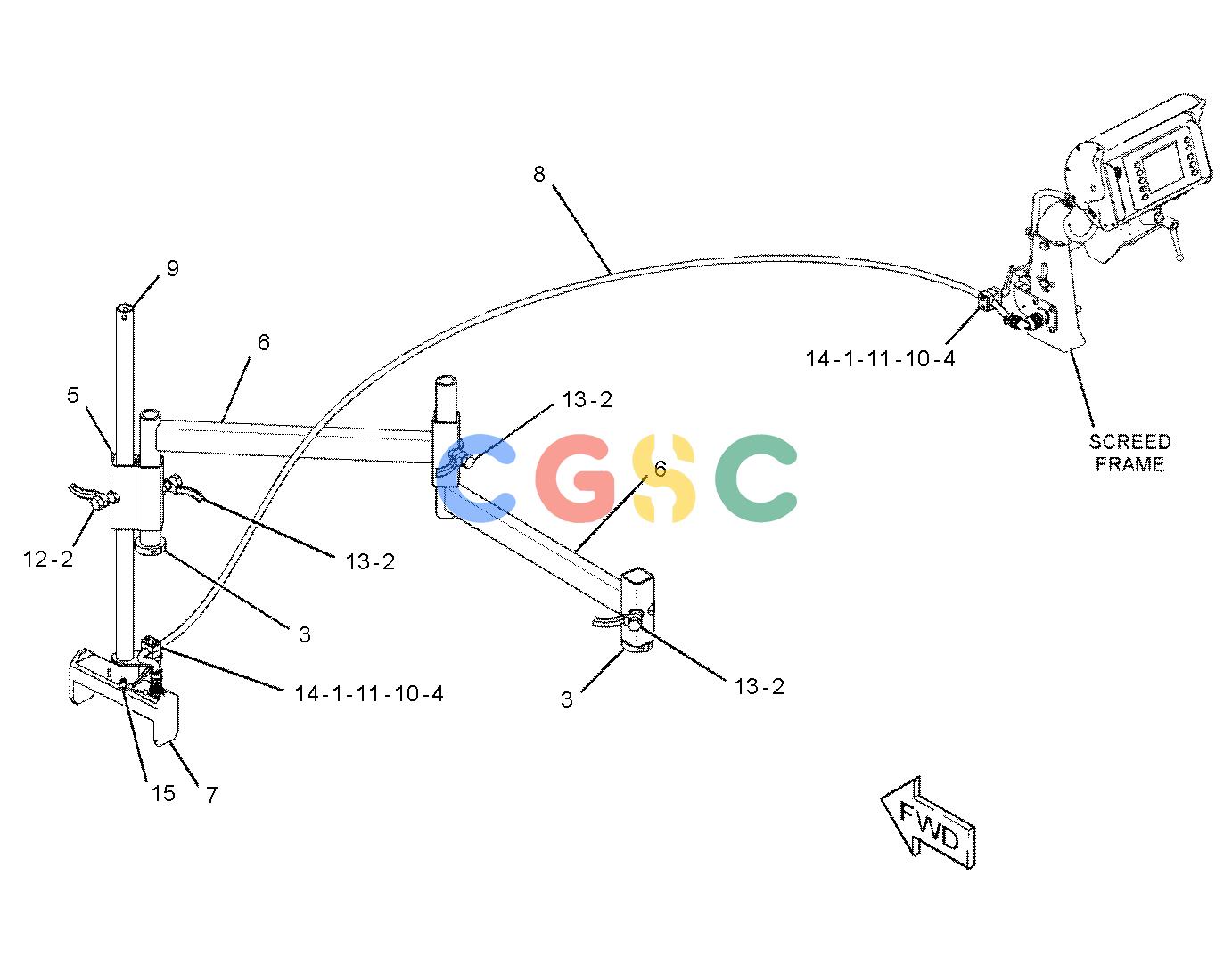

卡特零件查询（AP-1055E） 330-6084: SENSOR GP-SONIC
广数供应链运营团队, 16 02月, 2025，浏览：
390 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-4749 | [2] | PLATE | |
| 2. | 134-9621 | [4] | HANDLE | |
| 3. | 146-9410 | [2] | COLLAR | |
| 4. | 187-2082 | [2] | LEVER-CONTROL | |
| 5. | 298-0641 | [1] | TUBE AS | |
| 6. | 298-0644 | [2] | MOUNT AS-SENSOR | |
| 7. | 372-0971 | [1] | SENSOR AS-SONIC(GRADE CONTROL) | |
| 8. | 330-8554 | [1] | CABLE AS | |
| | 111-1308 | [2] | BUSHING | |
| 9. | 331-1991 | [1] | MOUNT AS-SENSOR | |
| 10. | 332-1018 | [2] | PLATE-TAPPED | |
| 11. | 1G-8781 | [4] | CLAMP | |
| 12. | 264-3631 | [1] | BOLT(3/4-10X2.5-IN) | |
| 13. | 7X-0366 | [3] | BOLT(3/4-10X2-IN) | |
| 14. | 9X-2480M | [4] | BOLT(M6X1X45-MM) | |
| 15. | 351-4852 | [1] | LEVER-CONTROL | |
| | M | | METRIC PART |
