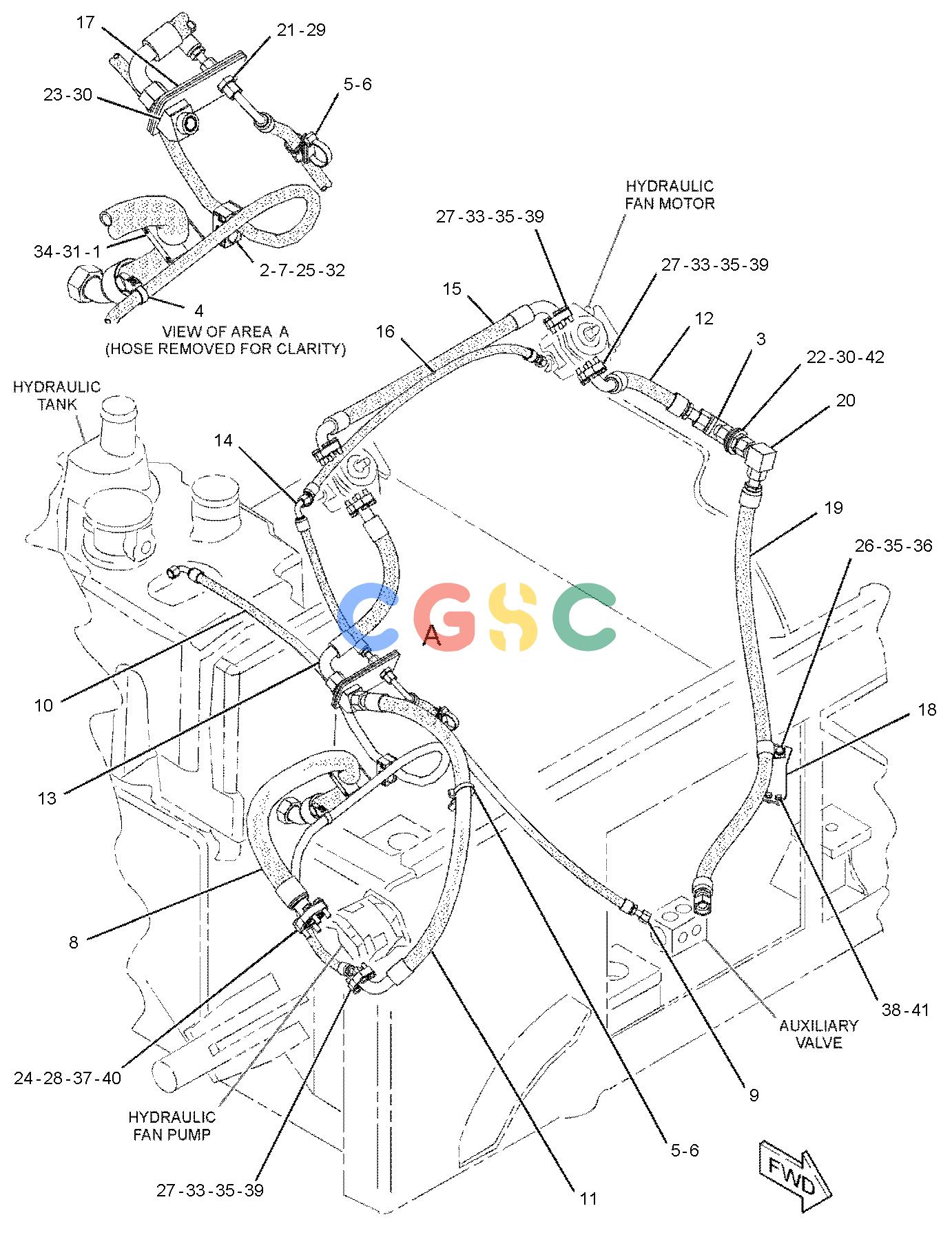

卡特零件查询（BG1055E） 336-7910: LINES GP-HYDRAULIC FAN
广数供应链运营团队, 16 02月, 2025，浏览：
179 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7952 | [1] | COVER | |
| 2. | 102-8705 | [1] | PLATE(TOP) | |
| 3. | 177-1061 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 142-0038 | [1] | ELBOW | |
| 4. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 5. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 6. | 204-2281 | [4] | STRAP-CABLE | |
| 7. | 206-0452 | [1] | PLATE | |
| 8. | 383-6906I | [1] | HOSE AS | |
| 9. | 340-5370I | [1] | HOSE AS | |
| 10. | 340-5371I | [1] | HOSE AS | |
| 11. | 340-5372I | [1] | HOSE AS | |
| 12. | 340-5373I | [1] | HOSE AS | |
| 13. | 340-5374I | [1] | HOSE AS | |
| 14. | 340-5375I | [1] | HOSE AS | |
| 15. | 340-5376I | [1] | HOSE AS | |
| 16. | 344-6117I | [1] | HOSE AS | |
| 17. | 390-8583 | [2] | PLATE | |
| 18. | 354-0836 | [1] | BRACKET AS | |
| | 159-9541M | [1] | NUT-WELD(M10X1.5-THD) | |
| 19. | 357-1294I | [1] | HOSE AS | |
| 20. | 148-8352 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9854 | [1] | ELBOW(SWIVEL) | |
| 21. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 22. | 155-2026 | [1] | UNION AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8998 | [1] | UNION | |
| 23. | 155-6344 | [1] | ELBOW AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8991 | [1] | ELBOW | |
| 24. | 1P-4579 | [2] | FLANGE-HALF | |
| 25. | 206-6411 | [2] | CLAMP-HALF | |
| 26. | 4D-7388 | [1] | CLIP | |
| 27. | 4J-0520 | [5] | SEAL-O-RING | |
| 28. | 4J-0524 | [1] | SEAL-O-RING | |
| 29. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 30. | 6V-9172 | [2] | NUT(1-7/16-12-THD) | |
| 31. | 7R-7942 | [2] | CLAMP | |
| 32. | 7X-0818M | [1] | BOLT(M8X1.25X45-MM) | |
| 33. | 8C-3206 | [10] | FLANGE-HALF | |
| 34. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 35. | 8T-4121 | [21] | WASHER-HARD(11X21X2.5-MM THK) | |
| 36. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 37. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 38. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 39. | 8T-4196M | [20] | BOLT(M10X1.5X35-MM) | |
| 40. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 41. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 42. | 7X-0606 | [2] | WASHER-HARD(37X60X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
