卡特零件查询（BG1055E） 230-9384: MOTOR GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
967 次

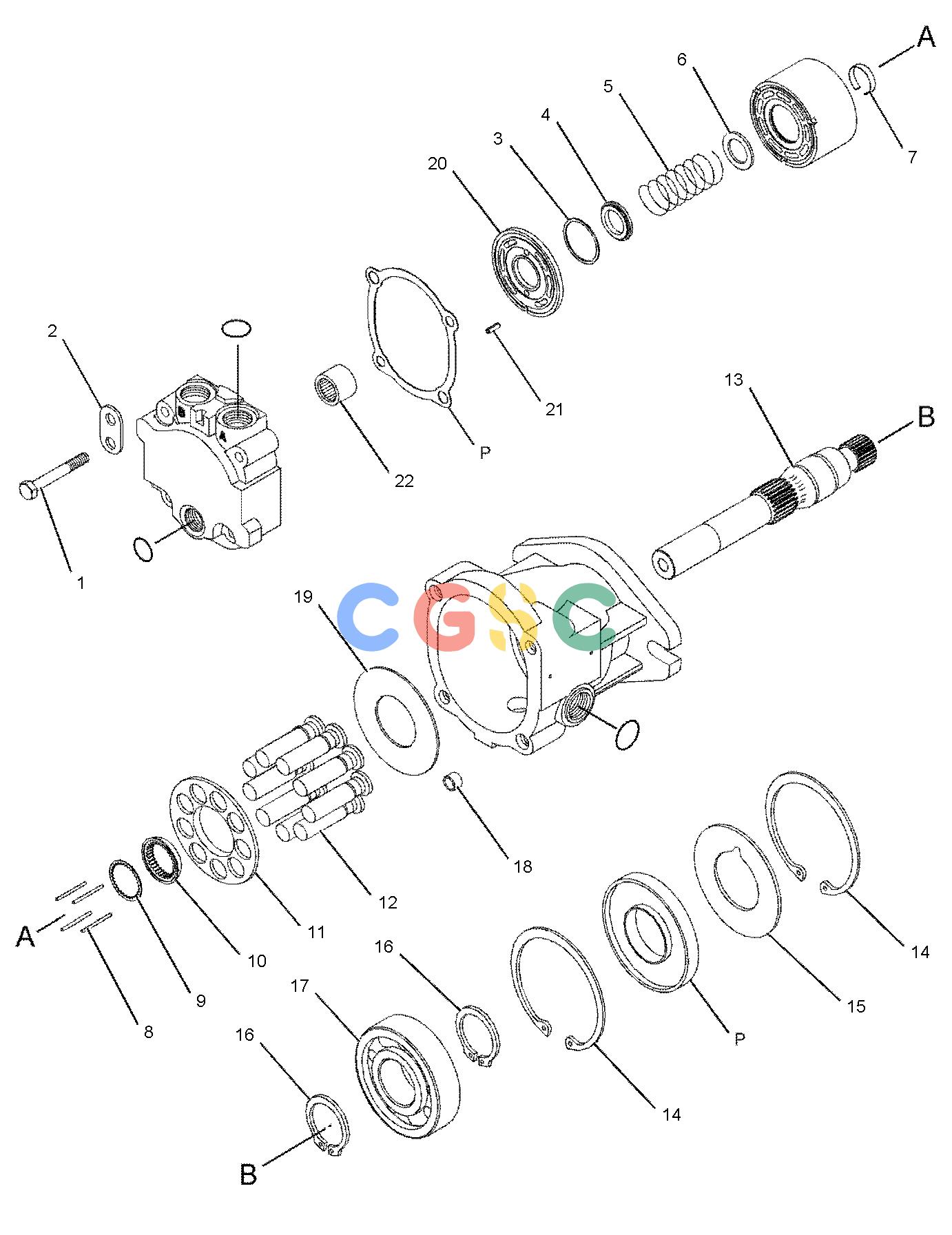

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| 2. | 5E-8757 | [1] | BRACKET | |
| 3. | 7X-5469J | [1] | RING-RETAINING | |
| 4. | 7X-5470J | [1] | WASHER-SPECIAL | |
| 5. | 1G-7360J | [1] | SPRING | |
| 6. | 1G-7359J | [1] | WASHER(25.4X38.18X6.5-MM THK) | |
| 7. | 1G-7363J | [1] | RETAINER | |
| 8. | 1G-7362J | [4] | PIN | |
| 9. | 1G-7370J | [1] | WASHER-THRUST | |
| 10. | 1G-7364J | [1] | GUIDE | |
| 11. | 1G-7366J | [1] | RETAINER | |
| 12. | 231-5214J | [9] | PISTON | |
| 13. | 168-5024 | [1] | SHAFT | |
| 14. | 2H-5549 | [2] | RING-RETAINING | |
| 15. | 137-5117 | [1] | WASHER(36.02X71.76X2.16-MM THK) | |
| 16. | 1J-6474 | [2] | RING-RETAINING(EXTERNAL) | |
| 17. | 8H-9789 | [1] | BALL BEARING | |
| 18. | 7X-5478 | [2] | PIN-SPRING | |
| 19. | 1G-7358 | [1] | PLATE-THRUST | |
| 20. | 122-8968 | [1] | PLATE-VALVE | |
| 21. | 122-8717 | [1] | PIN | |
| 22. | 4L-6944 | [1] | BEARING AS-NEEDLE | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 392-5514 | [1] | KIT-SEAL(PISTON MOTOR) | |
| | | | (INCLUDES O-RING SEAL, LIP SEALS & PARTS MARKED " P " IN GRAPHIC) |
| | 231-5215 | [1] | KIT-PUMP REPAIR(PISTON MOTOR) | |
| | | | (ALSO INCLUDES CYLINDER BLOCK) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
