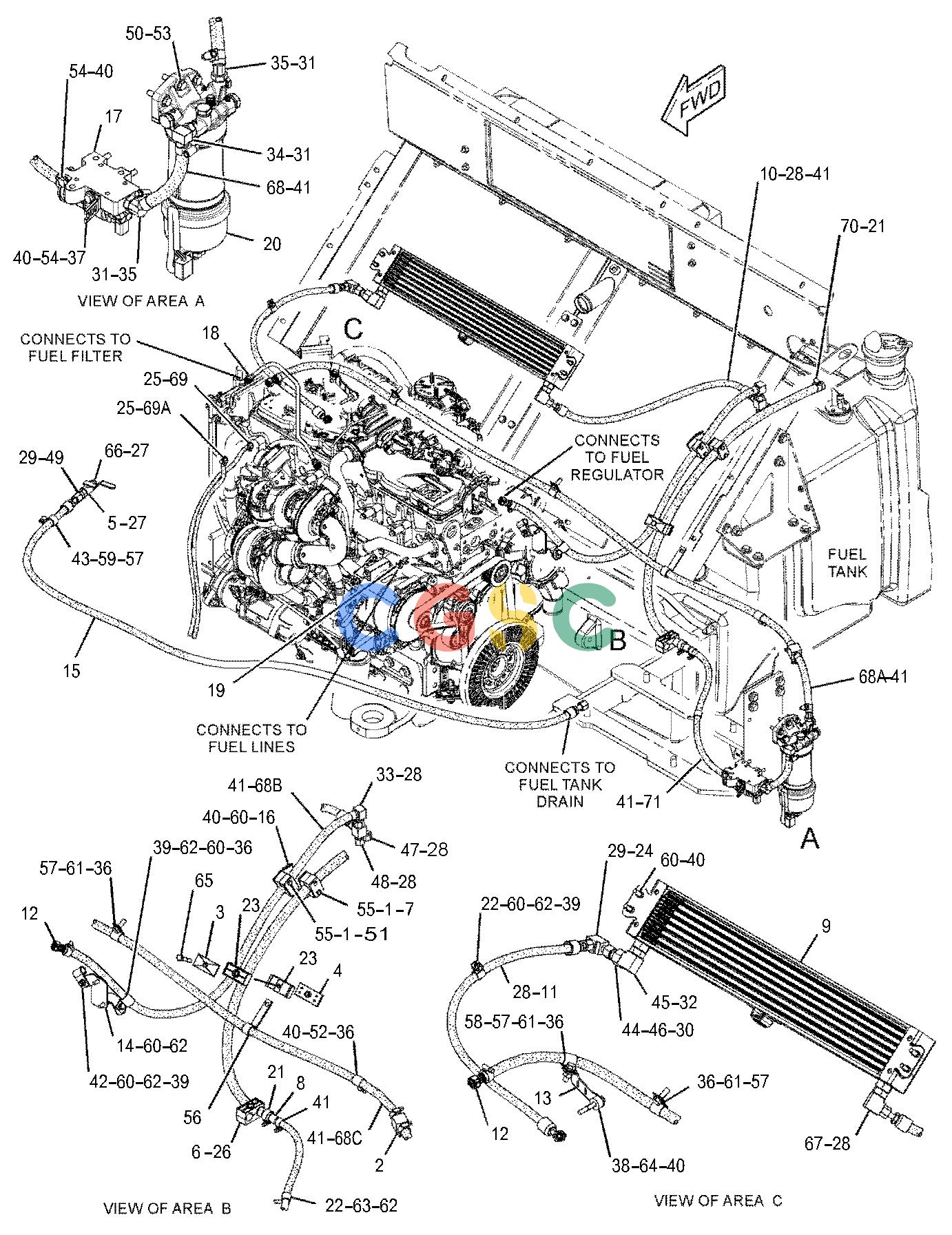

卡特零件查询（BG1055E） 331-6969: LINES GP-FUEL
广数供应链运营团队, 16 02月, 2025，浏览：
264 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7V-5628 | [2] | PLATE(TOP) | |
| 2. | 9X-3965 | [1] | TEE | |
| 3. | 102-8705 | [1] | PLATE(TOP) | |
| 4. | 102-8706 | [1] | PLATE AS | |
| 5. | 124-6809 | [1] | VALVE-BALL(FUEL TANK DRAIN) | |
| 6. | 206-0451M | [1] | BOLT-STACKING(M8X1.25X44-MM) | |
| 7. | 239-3291 | [2] | CLAMP-HALF | |
| 8. | 254-3859 | [1] | CONNECTOR-HOSE | |
| 9. | 334-3325 | [1] | CORE AS-FUEL COOLER | |
| 10. | 354-0827 | [1] | HOSE AS | |
| 11. | 354-0828 | [1] | HOSE AS | |
| 12. | 354-0842 | [2] | CONNECTOR | |
| 13. | 354-0843 | [1] | BRACKET | |
| 14. | 354-0844 | [1] | BRACKET | |
| 15. | 354-0845 | [1] | HOSE AS | |
| 16. | 354-0847 | [1] | BRACKET AS | |
| 17. | 446-5409 | [1] | PUMP AS-FUEL TRANSFER(24-VOLT) | |
| 18. | 359-5220 | [1] | LINE AS-FUEL(LEAK OFF) | |
| 19. | 359-9198 | [1] | CLIP-PIPE | |
| 20. | 360-5510Y | [1] | FILTER GP-WATER SEP & FUEL | |
| 21. | 124-6257 | [2] | CLAMP-HOSE | |
| 22. | 134-3988 | [2] | CLIP(LOOP) | |
| 23. | 143-9157 | [2] | CLAMP-DOUBLE | |
| 24. | 152-3411 | [1] | ELBOW | |
| 25. | 1P-4278 | [2] | CLAMP-HOSE | |
| 26. | 206-6411 | [2] | CLAMP-HALF | |
| 27. | 214-7568 | [2] | SEAL-O-RING | |
| 28. | 228-7089 | [7] | SEAL-O-RING | |
| 29. | 228-7090 | [2] | SEAL-O-RING | |
| 30. | 228-7091 | [1] | SEAL-O-RING | |
| 31. | 228-7102 | [3] | SEAL-O-RING | |
| 32. | 238-5081 | [2] | SEAL-O-RING | |
| 33. | 287-7257 | [1] | ELBOW | |
| 34. | 297-7960 | [1] | ELBOW | |
| 35. | 332-8546 | [2] | ELBOW | |
| 36. | 3S-8664 | [5] | CLIP(LOOP) | |
| 37. | 4P-8134 | [1] | CLIP(LADDER) | |
| 38. | 4S-5719 | [1] | SPACER(10.31X25X12.7-MM THK) | |
| 39. | 5C-7261M | [3] | NUT(M8X1.25-THD) | |
| 40. | 5P-4116 | [9] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 41. | 5P-4961 | [10] | CLAMP-HOSE | |
| 42. | 6D-3479 | [1] | CLIP(LOOP) | |
| 43. | 6D-4244 | [1] | CLIP(LOOP) | |
| 44. | 6V-8555 | [1] | NUT-FACE SEAL(1-14-THD) | |
| 45. | 6V-8626 | [1] | ELBOW | |
| 46. | 6V-8939 | [1] | REDUCER-O-RING | |
| 47. | 6V-9829 | [1] | CAP | |
| 48. | 6V-9836 | [1] | TEE-SWIVEL | |
| 49. | 6V-9873 | [1] | CONNECTOR | |
| 50. | 7S-6369 | [3] | WASHER(0.344X0.75X0.188-IN THK) | |
| 51. | 7V-5626 | [2] | CLAMP | |
| 52. | 7X-2536M | [1] | BOLT(M8X1.25X14-MM) | |
| 53. | 7X-2537M | [3] | BOLT(M8X1.25X35-MM) | |
| 54. | 7X-2538M | [2] | BOLT(M8X1.25X100-MM) | |
| 55. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 56. | 8D-9671 | [1] | CLIP | |
| 57. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 58. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 59. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 60. | 8T-4189M | [10] | BOLT(M8X1.25X20-MM) | |
| 61. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 62. | 8T-4224 | [9] | WASHER-HARD(8.8X16X2-MM THK) | |
| 63. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 64. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 65. | 8T-6912M | [1] | BOLT(M8X1.25X50-MM) | |
| 66. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 67. | 9X-2134 | [1] | ELBOW | |
| 68. | 347-8646E | | HOSE(19-CM) | |
| 68A. | 347-8646E | | HOSE(20-CM) | |
| 68B. | 347-8646E | | HOSE(106-CM) | |
| 68C. | 347-8646E | | HOSE(206-CM) | |
| 69. | 8C-3681E | | HOSE(75-CM) | |
| 69A. | 8C-3681E | | HOSE(70-CM) | |
| 70. | 347-8647E | | HOSE(114-CM) | |
| 71. | 347-8645E | | HOSE(55-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
