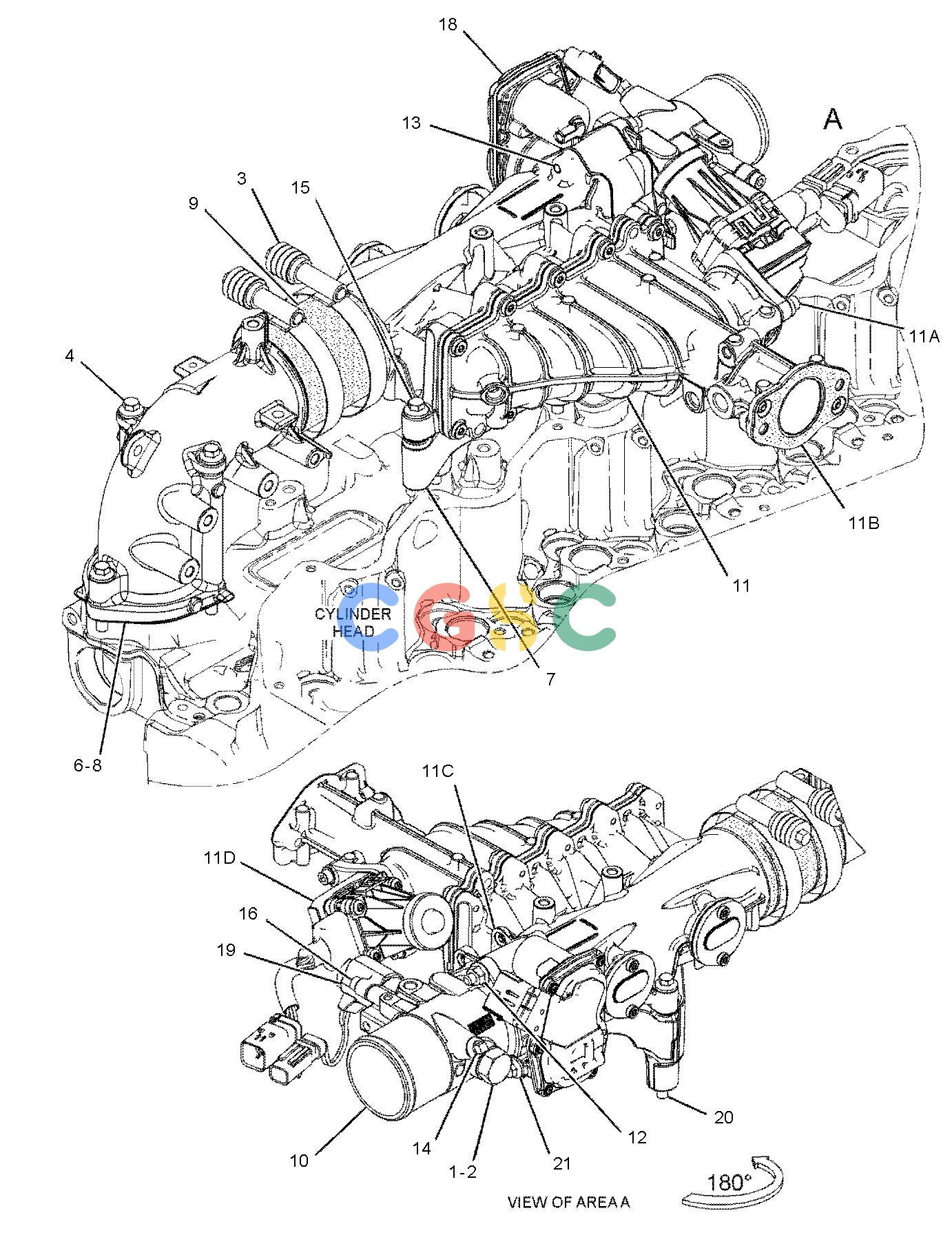

卡特零件查询（BG1055E） 355-1049: CONTROL GP-INLET AIR
广数供应链运营团队, 16 02月, 2025，浏览：
770 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 199-9751 | [1] | SEAL-O-RING | |
| 2. | 232-1322 | [1] | PLUG | |
| 3. | 144-0367 | [2] | CLAMP-HOSE | |
| 4. | 100-8451M | [2] | BOLT(M8X1.25X130-MM) | |
| 6. | 319-7840 | [1] | GASKET(INLET ELBOW) | |
| 7. | 349-6804 | [1] | BRACKET | |
| 8. | 349-6805 | [1] | PIPE-INLET | |
| 9. | 354-5632 | [1] | HOSE | |
| 10. | 355-1078 | [1] | CONNECTION | |
| 11. | 377-2854 | [1] | MANIFOLD & VALVE GP | |
| 11A. | 153-0983M | [2] | BOLT(M6X1X25-MM) | |
| 11B. | 346-9501 | [1] | GASKET | |
| 11C. | 346-9507 | [1] | GASKET | |
| 11D. | 349-6734 | [1] | VALVE GP-EXHAUST GAS (NRS) | |
| | 346-9508 | [1] | SEAL | |
| 12. | 6I-0291M | [1] | NUT(M8X1.25-THD) | |
| 13. | 342-6268M | [1] | STUD(M8X1.25X80-MM) | |
| 14. | 035-8063 | [1] | PLUG | |
| 15. | 101-3895M | [3] | BOLT(M8X1.25X35-MM) | |
| 16. | 6I-0917M | [2] | BOLT(M6X1X25-MM) | |
| 18. | 349-6803 | [1] | THROTTLE AS | |
| | 346-9507 | [1] | GASKET | |
| 19. | 367-4226 | [1] | VALVE-SOLENOID(WASTEGATE) | |
| 20. | 6I-0456M | [4] | BOLT(M8X1.25X45-MM) | |
| 21. | 6I-0839M | [2] | BOLT(M8X1.25X70-MM) | |
| | M | | METRIC PART |
