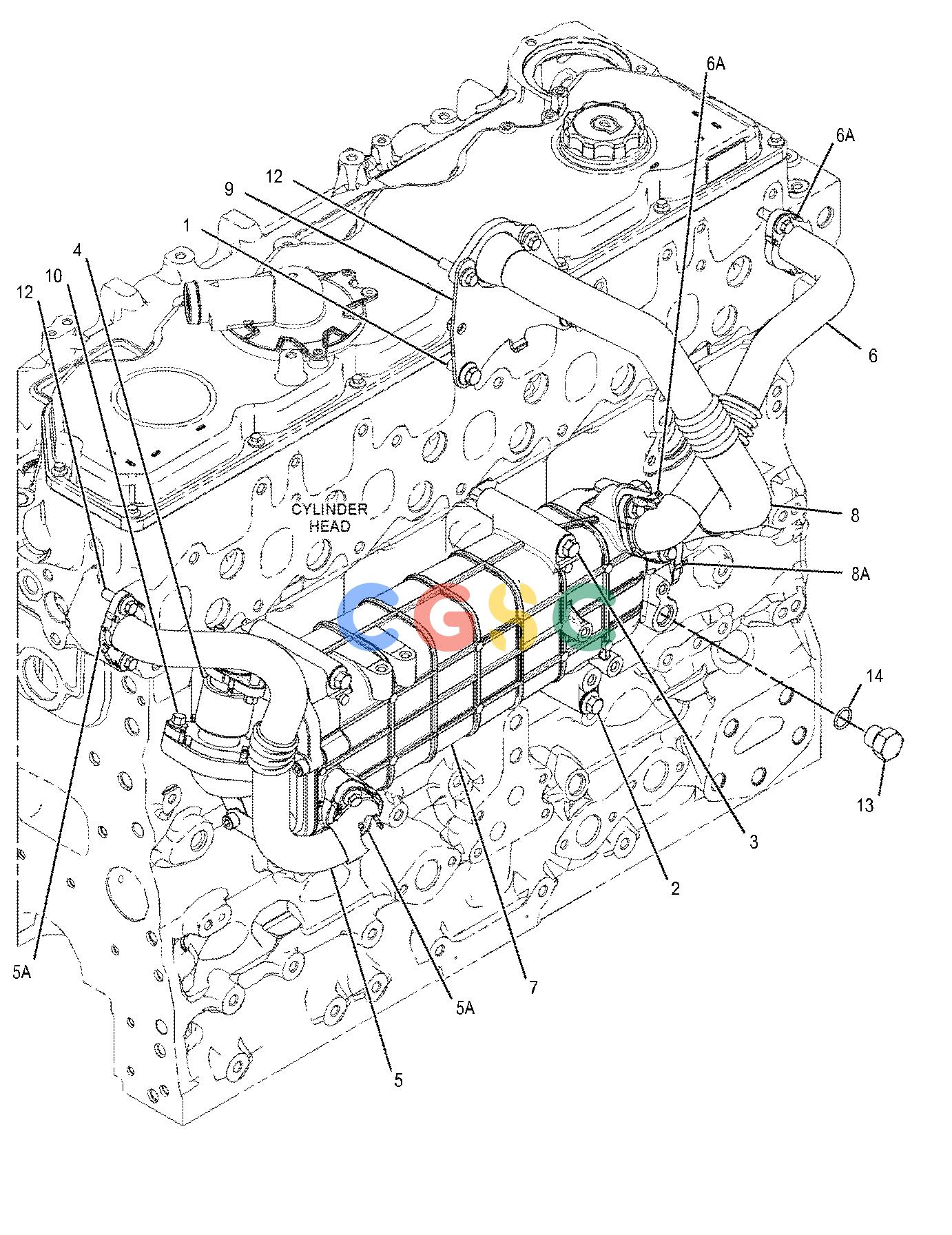

卡特零件查询（BG1055E） 355-1058: COOLER GP-EXHAUST (NRS)
广数供应链运营团队, 16 02月, 2025，浏览：
535 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 100-4830M | [2] | BOLT(M10X1.5X20-MM) | |
| 2. | 103-0050M | [2] | BOLT(M10X1.5X100-MM) | |
| 3. | 113-7584M | [2] | BOLT(M10X1.5X110-MM) | |
| 4. | 369-1656 | [1] | TUBE AS-EXHAUST | |
| | 349-9331 | [2] | GASKET | |
| 5. | 349-7391 | [1] | LINES GP-COOLANT | |
| 5A. | 349-9332 | [2] | GASKET | |
| 6. | 349-7393 | [1] | LINES GP-COOLANT | |
| 6A. | 349-9332 | [2] | GASKET | |
| 7. | 452-5761 | [1] | COOLER AS | |
| 8. | 349-7399 | [1] | LINES GP-EXHAUST | |
| 8A. | 349-9333 | [1] | GASKET | |
| 9. | 349-9345 | [1] | BRACKET | |
| 10. | 375-0351 | [4] | BOLT-SPECIAL | |
| 12. | 6I-0260M | [12] | BOLT(M8X1.25X25-MM) | |
| 13. | 232-1322 | [1] | PLUG | |
| 14. | 199-9751 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
