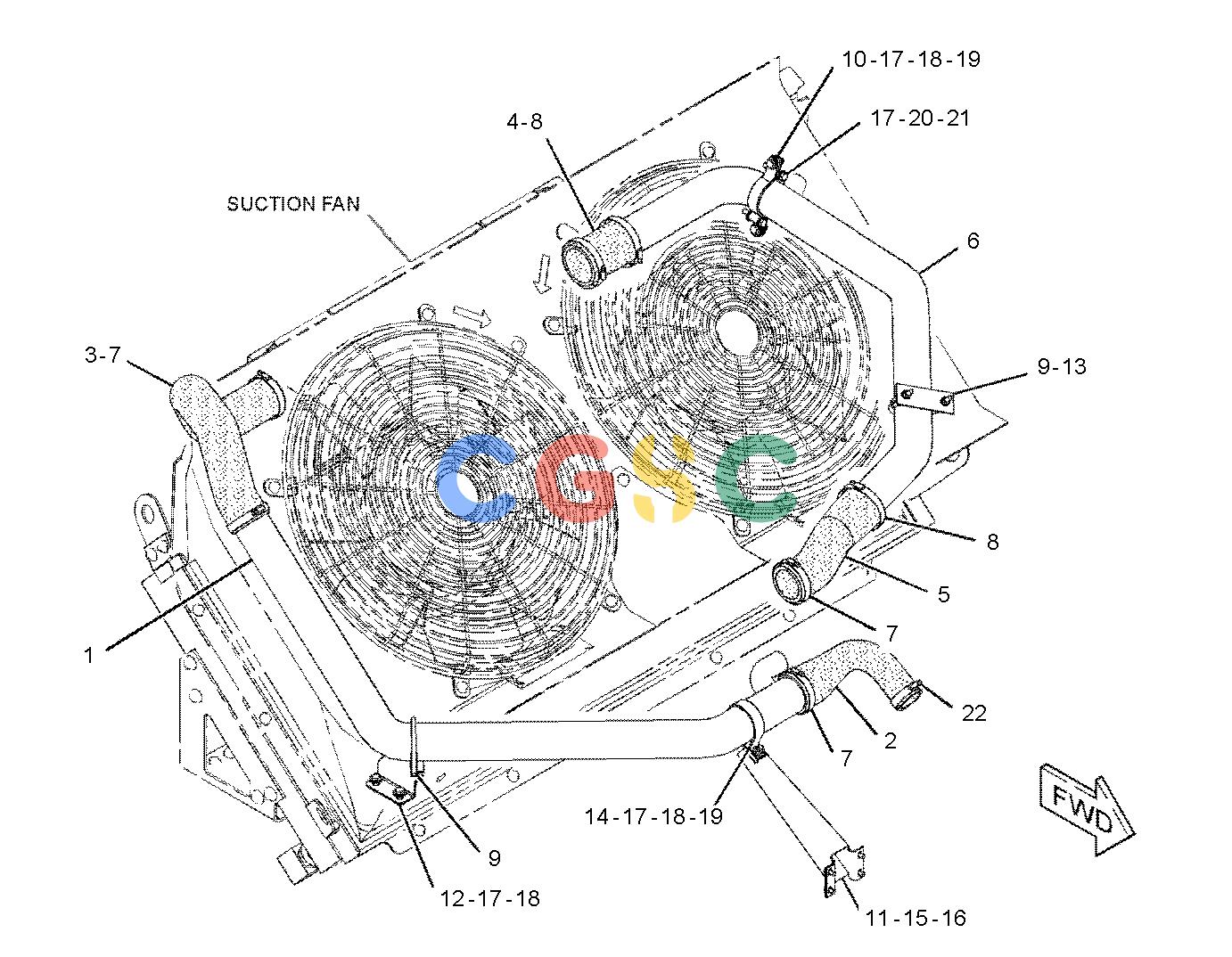

卡特零件查询（BG1055E） 341-1941: LINES GP-AIR
广数供应链运营团队, 16 02月, 2025，浏览：
163 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 343-4381 | [1] | TUBE AS | |
| 2. | 358-2338 | [1] | HOSE | |
| 3. | 343-4378 | [1] | HOSE | |
| 4. | 343-4379 | [1] | HOSE | |
| 5. | 343-4380 | [1] | HOSE | |
| 6. | 343-4382 | [1] | TUBE | |
| 7. | 144-0367 | [4] | CLAMP-HOSE | |
| 8. | 8T-4985 | [3] | CLAMP-HOSE | |
| 9. | 137-4499 | [2] | CLAMP AS | |
| 10. | 124-6333 | [2] | CLAMP AS | |
| 11. | 344-7214 | [1] | BRACKET AS | |
| 12. | 346-7551 | [1] | BRACKET AS | |
| 13. | 275-9217 | [1] | PLATE | |
| 14. | 5L-3244 | [1] | CLIP | |
| 15. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 16. | 7X-2536M | [4] | BOLT(M8X1.25X14-MM) | |
| 17. | 7X-7729 | [10] | WASHER(11X25X3-MM THK) | |
| 18. | 8T-4195M | [5] | BOLT(M10X1.5X30-MM) | |
| 19. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 20. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 22. | 8T-6703 | [1] | CLAMP-HOSE | |
| | M | | METRIC PART |
