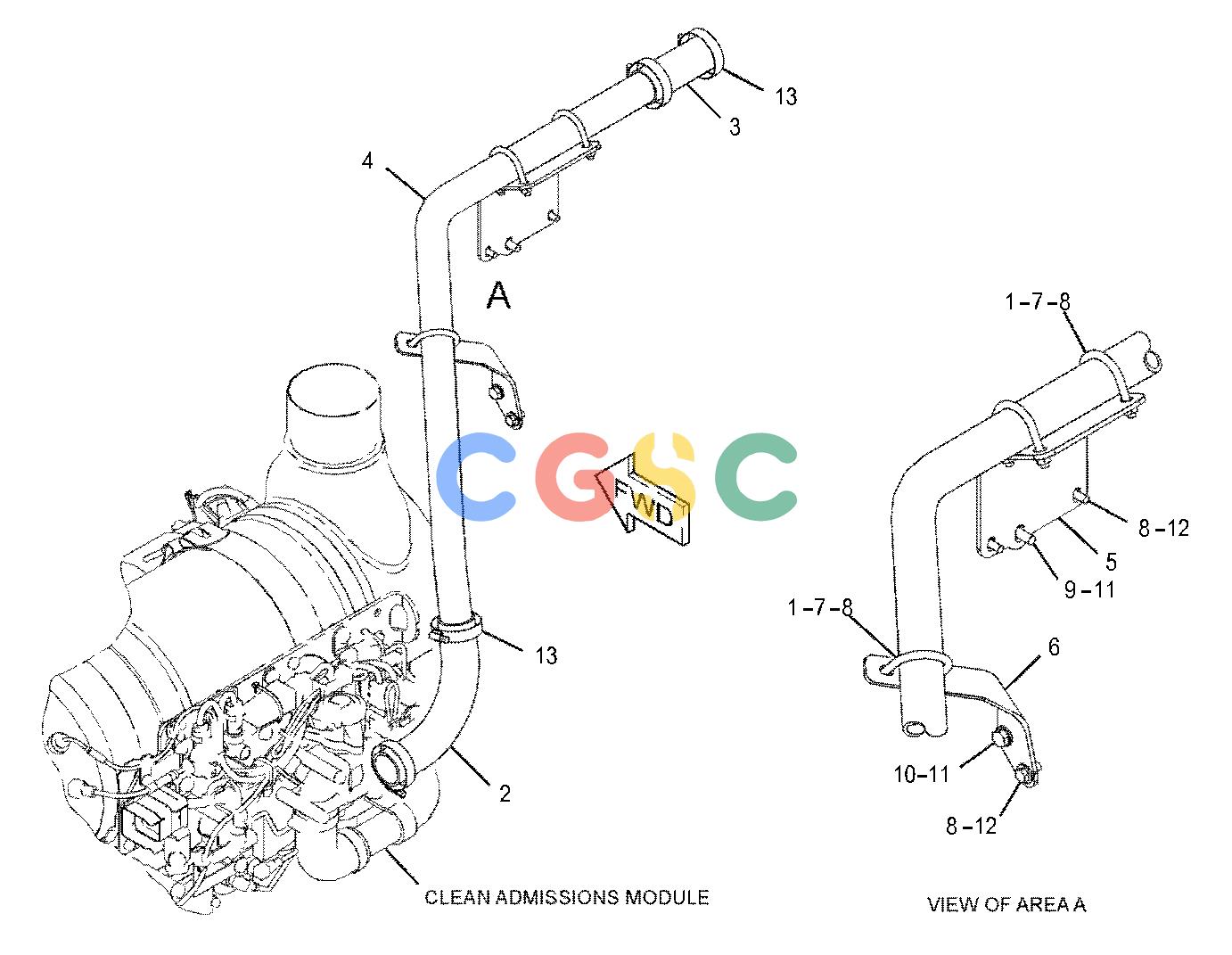

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 278-4105 | [3] | U-BOLT | |
| 2. | 343-4358 | [1] | HOSE | |
| 3. | 344-6540 | [1] | HOSE | |
| 4. | 354-0832 | [1] | TUBE | |
| 5. | 354-0833 | [1] | PLATE | |
| 6. | 354-0834 | [1] | BRACKET | |
| 7. | 5C-7261M | [12] | NUT(M8X1.25-THD) | |
| 8. | 5P-4116 | [9] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 10. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 12. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 13. | 8T-6703 | [4] | CLAMP-HOSE | |
| M | METRIC PART | |||
