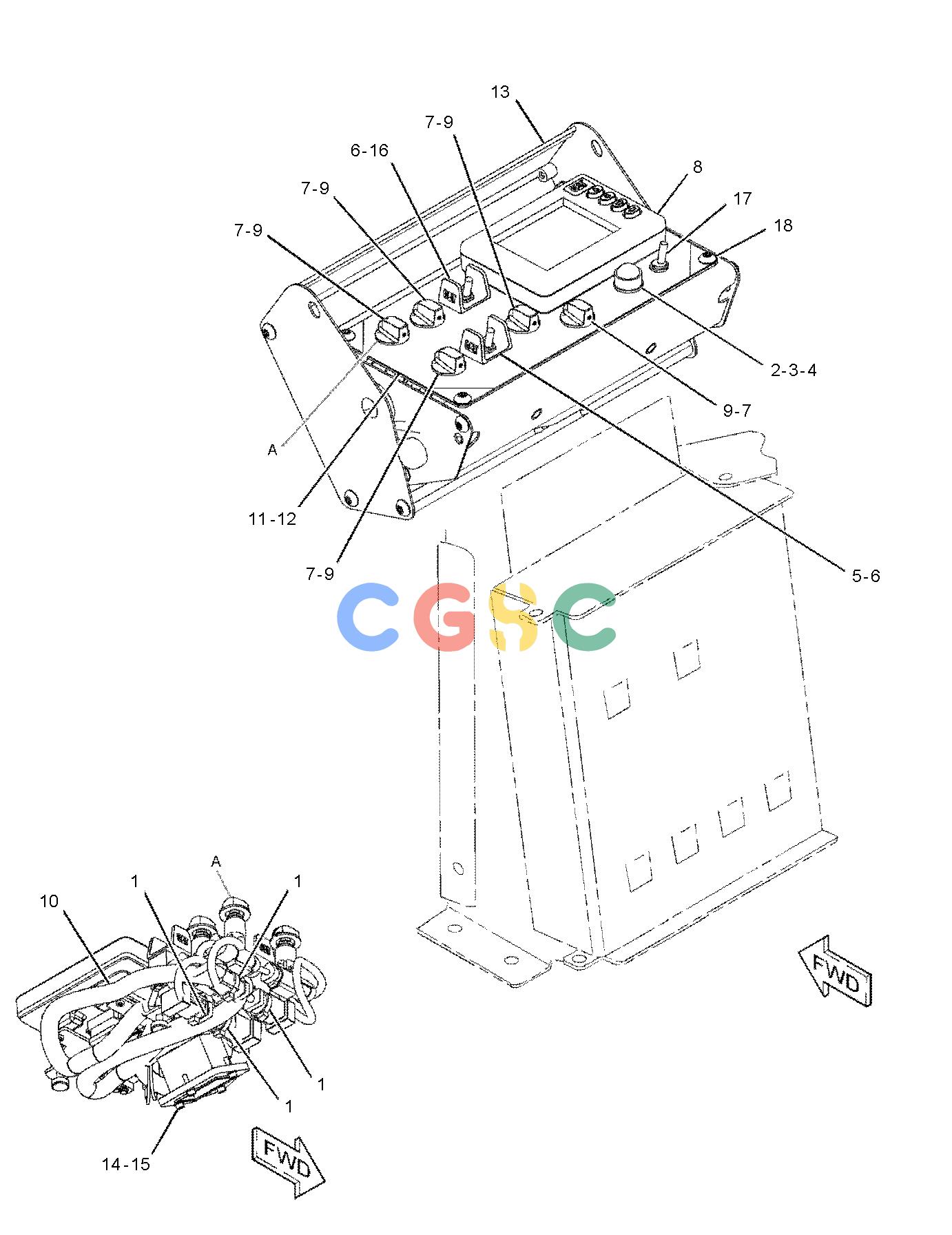

卡特零件查询（BG1055E） 352-0659: BOX GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [4] | STRAP-CABLE | |
| 2. | 7N-5876 | [1] | LAMP(24-VOLT, 0.2-AMPERE) | |
| 3. | 9D-3127 | [1] | BASE AS-INDICATOR LIGHT | |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 4. | 9D-9161 | [1] | LENS-GREEN | |
| 5. | 246-8912 | [1] | SWITCH GP-TOGGLE(AUGER HEIGHT) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 6. | 265-9984 | [2] | BRACKET | |
| 7. | 378-3321 | [5] | POTENTIOMETER AS(AUGER CONTROL) | |
| 8. | 294-3323 | [1] | CONTROL GP-UNPRGMED MONITOR(SCREED CONTROL) | |
| 9. | 316-5717 | [5] | KNOB AS(POTENTIOMETER) | |
| 10. | 352-0683 | [1] | HARNESS AS-BOX(SCREED CONTROL) | |
| | 9X-3401 | [22] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [3] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2260 | [5] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [13] | PLUG-SEAL | |
| | 9X-7143 | [1] | RECEPTACLE AS-CONNECTOR(24-PIN) | |
| | 180-9340 | [30] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 189-3158 | [1] | SUPPRESSOR-ARC | |
| | 172-9200 | [3] | SUPPRESSOR-ARC | |
| | 5P-2321 | [6] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 5P-4571 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 5P-3059 | [5] | TERMINAL-FORK(18-GA TO 22-GA, NO. 6 SCREW) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(15-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 11. | 355-7007 | [1] | PLATE | |
| 12. | 355-7046 | [1] | FILM-IDENTIFICATION(SCREED CONTROL) | |
| 13. | 360-5620Y | [1] | BOX GP-CONTROL | |
| 14. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 15. | 162-2165M | [4] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| 16. | 7N-8008 | [1] | SWITCH AS-TOGGLE(CROWN CONTROL) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 17. | 9D-3721 | [1] | SWITCH-TOGGLE(SINGLE POLE)(SPRAY DOWN) | |
| 18. | 9X-2042M | [4] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
