卡特零件查询（BG1055E） 360-5620: BOX GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
121 次

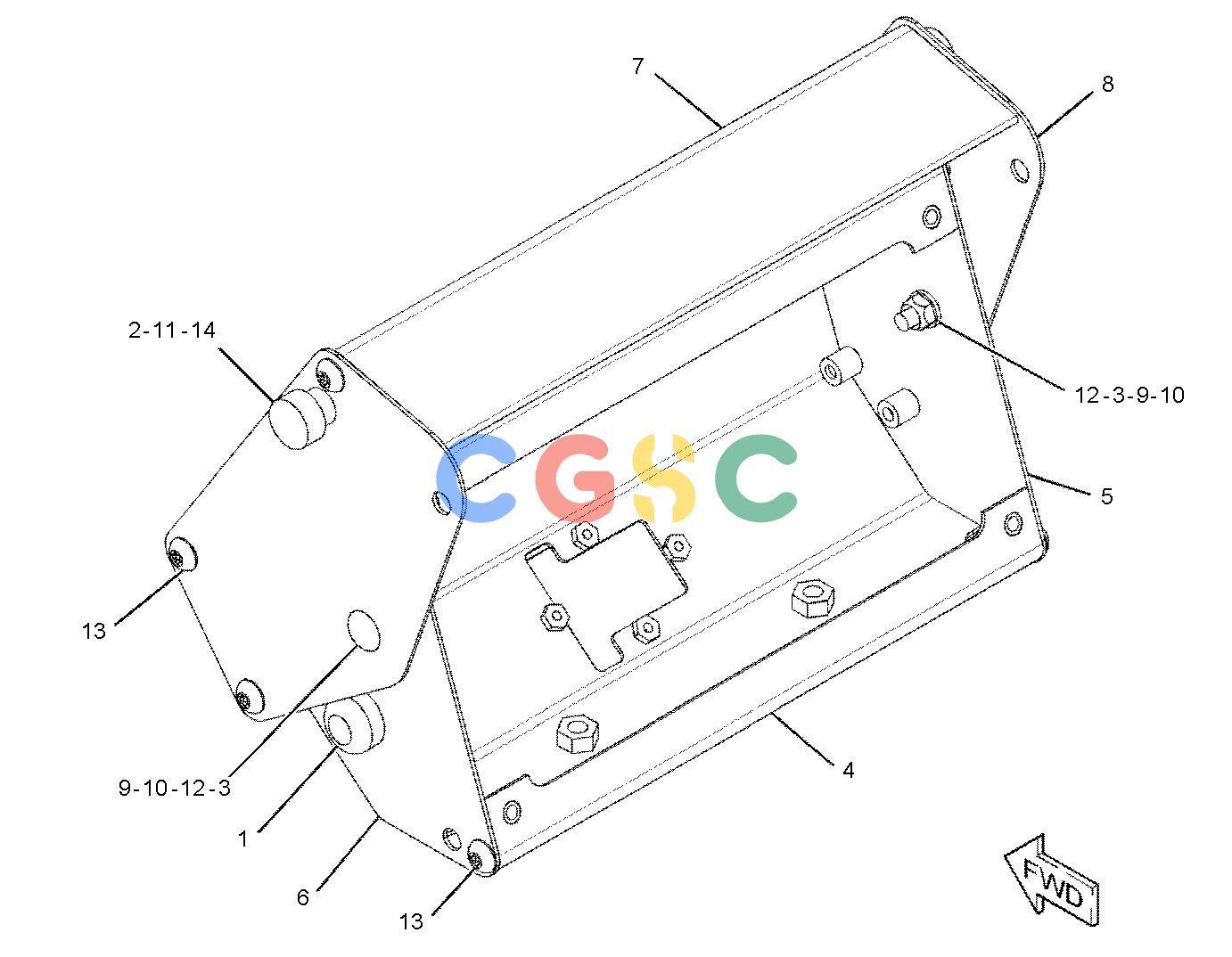

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9C-9785 | [2] | BUMPER | |
| 2. | 107-5014 | [1] | KNOB | |
| 3. | 205-6471C | [2] | BOLT-CARRIAGE(M8X1.25X25-MM) | |
| 4. | 360-5627 | [1] | BOX AS | |
| 5. | 360-5638 | [1] | PLATE AS(RH) | |
| 6. | 360-5642 | [1] | PLATE AS(LH) | |
| 7. | 360-5648 | [1] | COVER AS | |
| 8. | 360-5654 | [2] | PLATE-END | |
| 9. | 365-8988C | [2] | SPACER(13.2X40X7-MM THK) | |
| 10. | 131-3540CM | [2] | LOCKNUT(M8X1.25-THD) | |
| 11. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 12. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 13. | 9X-2042M | [14] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 14. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
