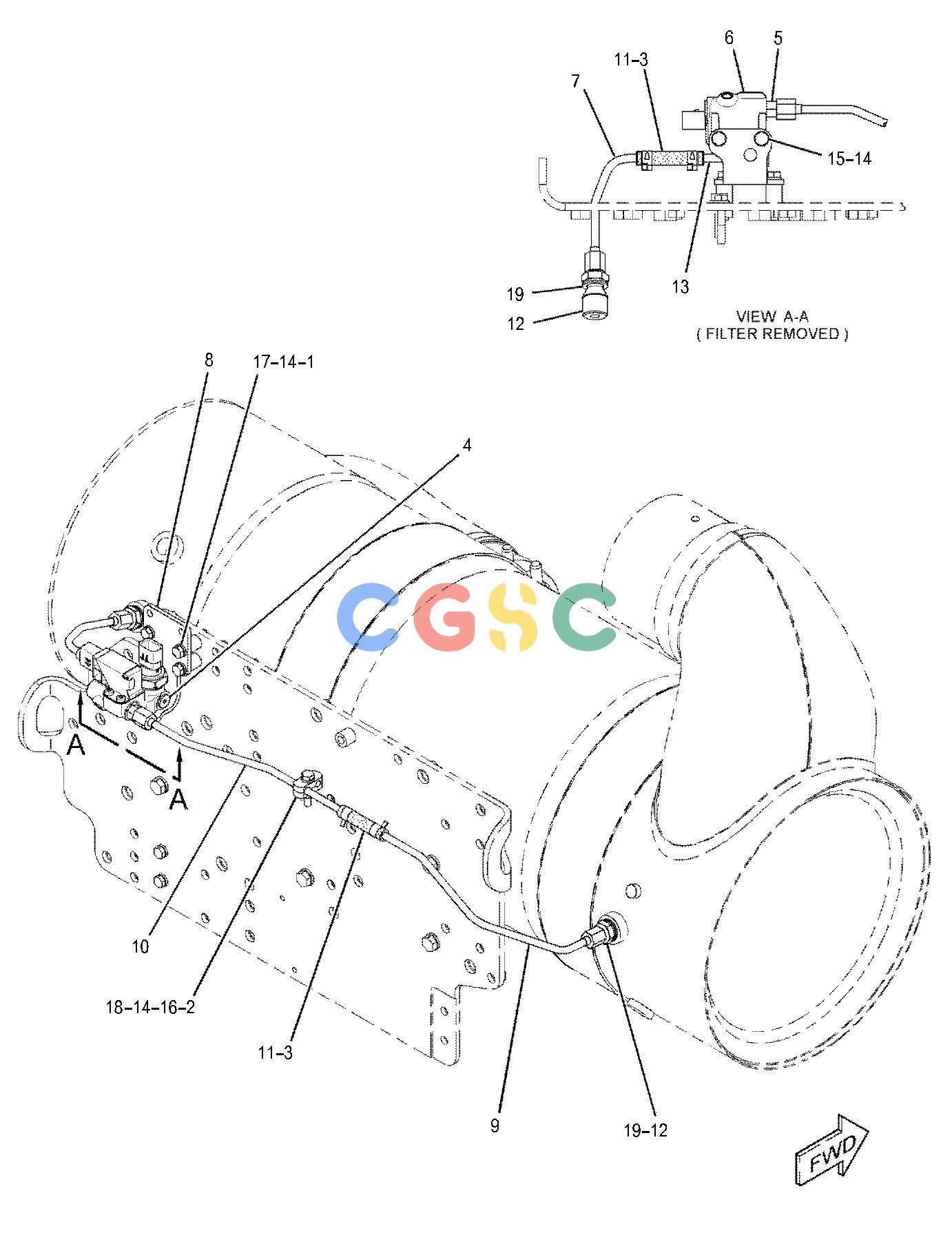

卡特零件查询（BG1055E） 362-8934: SENSOR & MTG GP-PRESSURE
广数供应链运营团队, 16 02月, 2025，浏览：
697 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 127-1991 | [3] | SPACER(8.2X13X15-MM THK) | |
| 2. | 288-8580 | [2] | CLAMP-FUEL LINE | |
| 3. | 308-1424 | [2] | HOSE-AIR | |
| 4. | 315-9841 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8007 | [1] | PLUG | |
| | 238-5079 | [1] | SEAL-O-RING | |
| 5. | 343-8118 | [1] | CONNECTOR AS | |
| | 3G-7409 | [1] | CONNECTOR | |
| | 238-5079 | [1] | SEAL-O-RING | |
| 6. | 362-8936Y | [1] | SENSOR GP-PRESSURE | |
| 7. | 362-8954 | [1] | TUBE AS | |
| 8. | 363-3554 | [1] | BRACKET | |
| 9. | 363-7104 | [1] | TUBE AS | |
| 10. | 364-2665 | [1] | TUBE AS | |
| 11. | 195-8372 | [4] | CLIP | |
| 12. | 304-8042 | [2] | CONNECTOR | |
| 13. | 337-8767 | [1] | CONNECTOR AS | |
| | 238-5079 | [1] | SEAL-O-RING | |
| | 337-8766 | [1] | CONNECTOR | |
| 14. | 344-1200 | [6] | WASHER-HARD(6.6X12X2-MM THK) | |
| 15. | 344-1206M | [2] | BOLT(M6X1X16-MM) | |
| 16. | 344-1207 | [1] | BOLT(M6X1X30-MM) | |
| 17. | 344-1208M | [3] | BOLT(M6X1X35-MM) | |
| 18. | 344-5673M | [1] | NUT(M6X1-THD) | |
| 19. | 7W-3556 | [2] | WASHER(14.27X20.57X1.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
