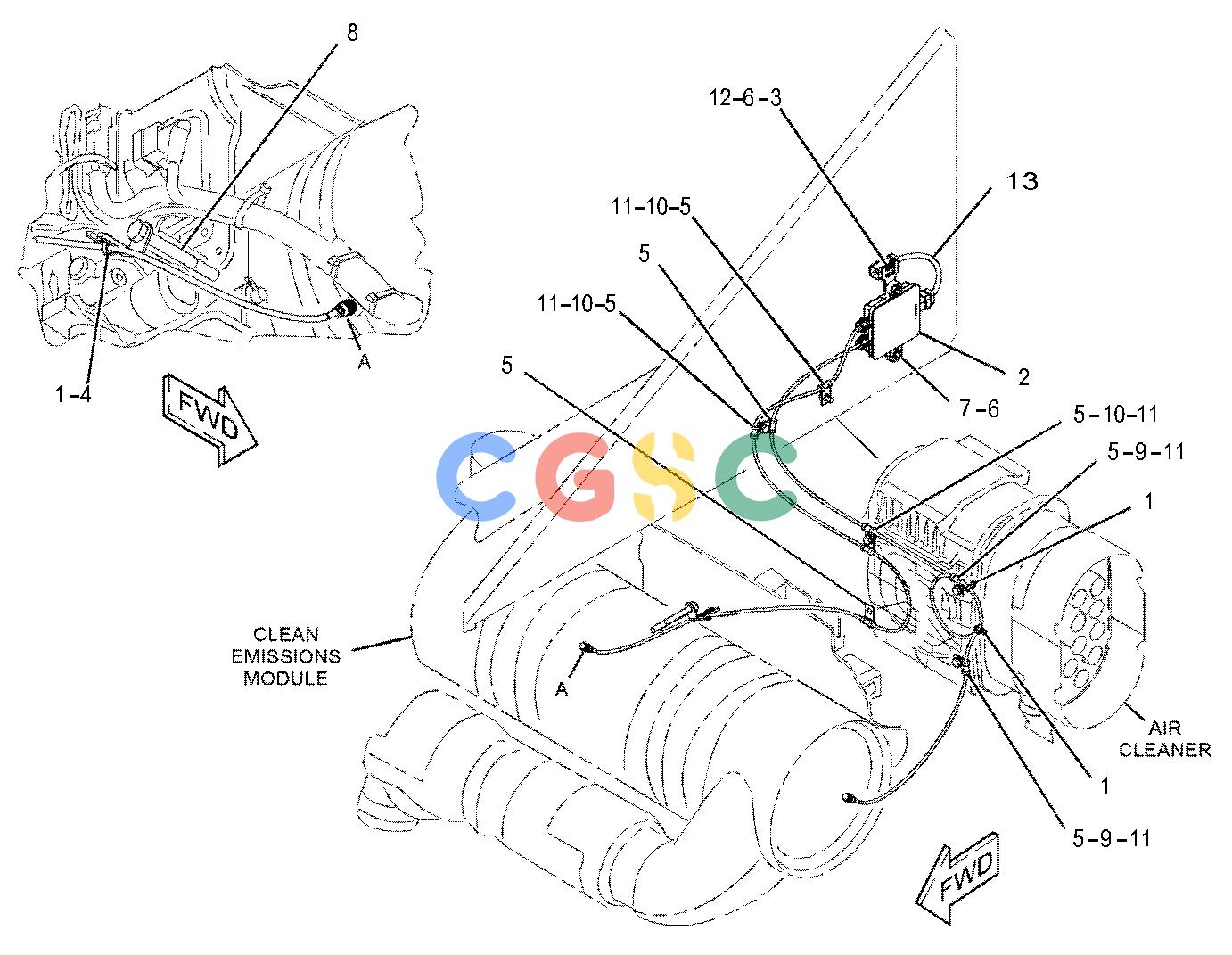

卡特零件查询（BG1055E） 327-9138: SENSOR & MTG GP-SOOT
广数供应链运营团队, 16 02月, 2025，浏览：
721 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 326-4516 | [3] | TIE-CABLE | |
| 2. | 464-4912 | [1] | SENSOR GP-SOOT(EXHAUST) | |
| 3. | 130-5300 | [2] | CLIP | |
| 4. | 132-5789 | [1] | CLIP(LADDER) | |
| 5. | 349-0951 | [8] | CLIP | |
| 6. | 5P-4115 | [3] | WASHER-HARD(7.2X19X2-MM THK) | |
| 7. | 6V-7357M | [1] | BOLT(M6X1X25-MM) | |
| 8. | 8T-4178M | [1] | BOLT(M10X1.5X90-MM) | |
| 9. | 8T-4199M | [2] | BOLT(M8X1.25X12-MM) | |
| 10. | 8T-4200M | [3] | BOLT(M8X1.25X16-MM) | |
| 11. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 12. | 8T-4971M | [1] | BOLT(M6X1X30-MM) | |
| 13. | 464-8260Y | [1] | HARNESS AS-MONITOR(EXHAUST) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
