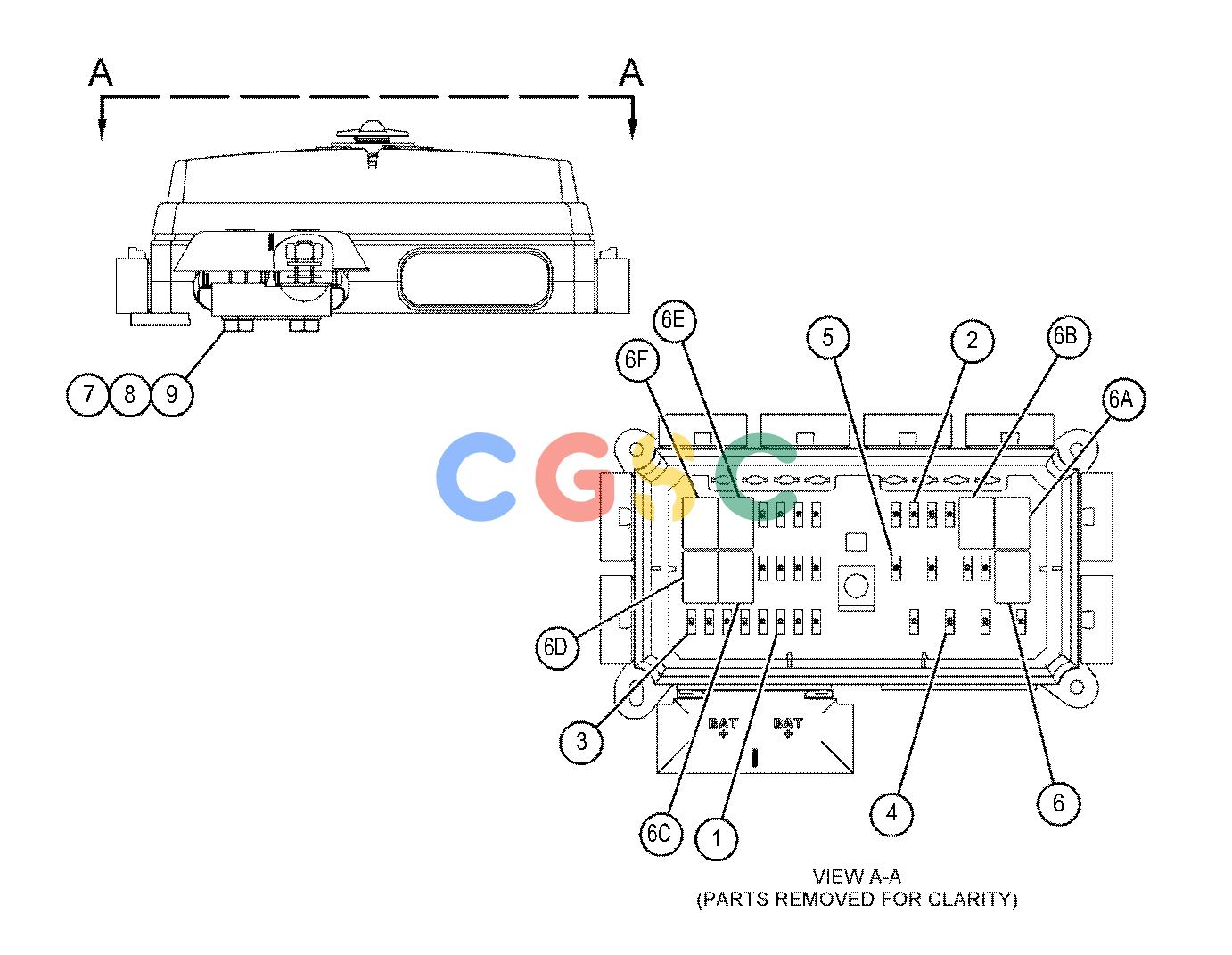

卡特零件查询（BG1055E） 346-6713: PANEL GP-FUSE
广数供应链运营团队, 16 02月, 2025，浏览：
937 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 113-8490 | [8] | FUSE(10-AMPERE) | |
| 2. | 113-8491 | [16] | FUSE(15-AMPERE) | |
| 3. | 113-8492 | [7] | FUSE(20-AMPERE) | |
| 4. | 113-8493 | [3] | FUSE(25-AMPERE) | |
| 5. | 141-2759 | [2] | FUSE(5-AMPERE) | |
| 6. | 363-7123 | [1] | RELAY AS(24-VOLT)(BRAKE LIGHTS) | |
| 6A. | 363-7123 | [1] | RELAY AS(24-VOLT)(TURN SIGNAL, LH) | |
| 6B. | 363-7123 | [1] | RELAY AS(24-VOLT)(TURN SIGNAL, RH) | |
| 6C. | 363-7123 | [1] | RELAY AS(24-VOLT)(PARKING LIGHTS) | |
| 6D. | 363-7123 | [1] | RELAY AS(24-VOLT)(TRAVEL) | |
| 6E. | 363-7123 | [1] | RELAY AS(24-VOLT)(SPRAY DOWN) | |
| 6F. | 363-7123 | [1] | RELAY AS(24-VOLT)(WORK LIGHTS) | |
| 7. | 7X-0608 | [2] | WASHER-HARD(10.2X16X2-MM THK) | |
| 8. | 264-3617 | [2] | LOCKWASHER | |
| 9. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| | M | | METRIC PART |
