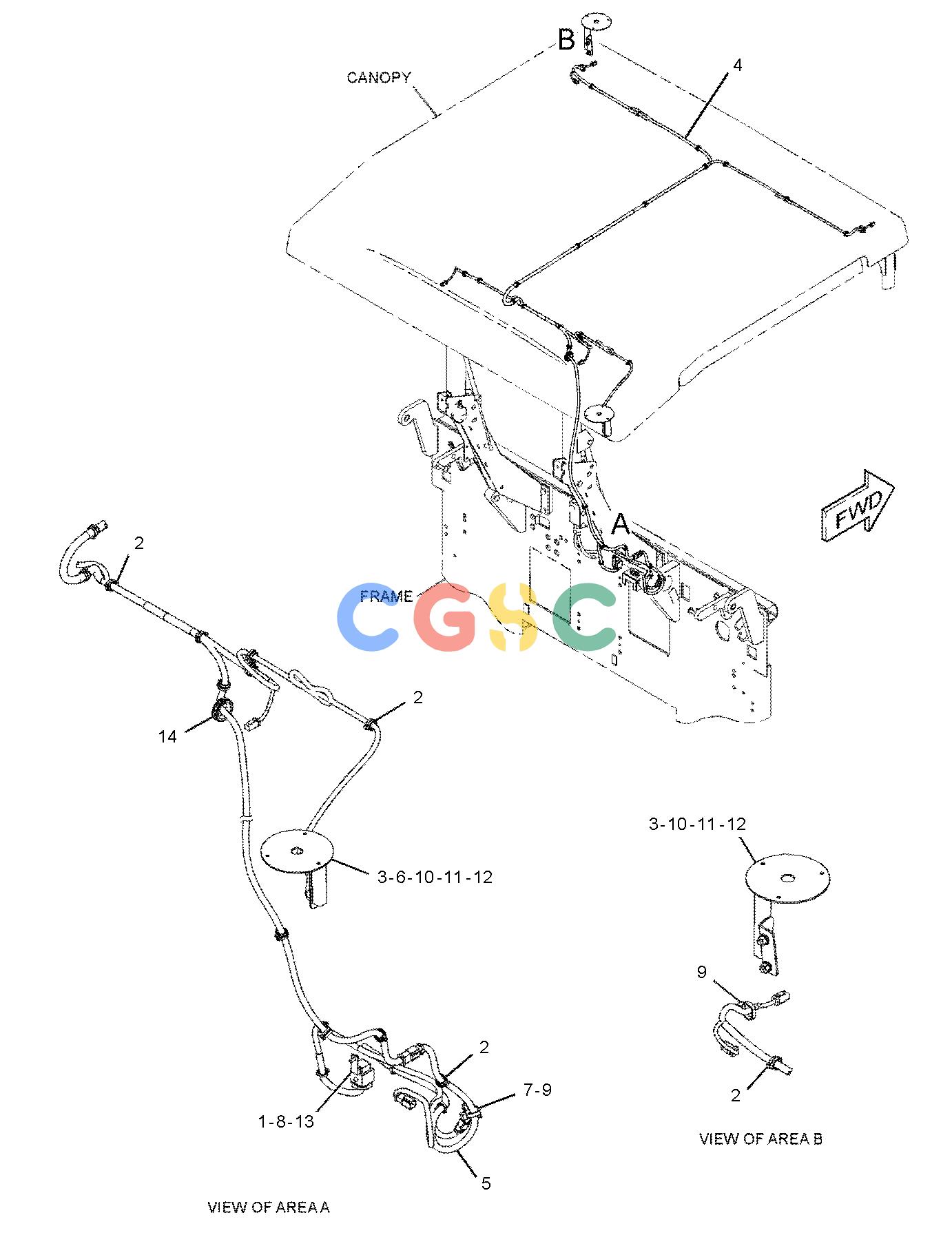

卡特零件查询（BG1055E） 363-3401: WIRING GP-LIGHTING
广数供应链运营团队, 16 02月, 2025，浏览：
317 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-5239 | [1] | RELAY AS(24-VOLT)(HID LIGHTS, WARNING BEACON) | |
| 2. | 3S-2093 | [50] | STRAP-CABLE | |
| 3. | 359-6095 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 290-1502 | [1] | PLATE AS | |
| 4. | 363-3403 | [1] | HARNESS AS-LIGHTING(CANOPY) | |
| | 9X-3401 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [6] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [12] | PLUG-SEAL | |
| | 102-8802 | [6] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RESEPTACLE AS & WEDGE) |
| | 180-9340 | [12] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 5. | 363-3956 | [1] | HARNESS AS-LIGHTING(JUMPER) | |
| | 9X-3401 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9X-1054 | [1] | PLUG AS-CONNECTOR(4-PIN) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 9X-1056 | [4] | TERMINAL-RECEPTACLE(14-GA TO 16-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 6. | 130-5300 | [1] | CLIP | |
| 7. | 4P-7428 | [1] | CLIP(LADDER) | |
| 8. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 9. | 7K-1181 | [3] | STRAP-CABLE | |
| 10. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 12. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 14. | 6P-0699 | [1] | GROMMET | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
