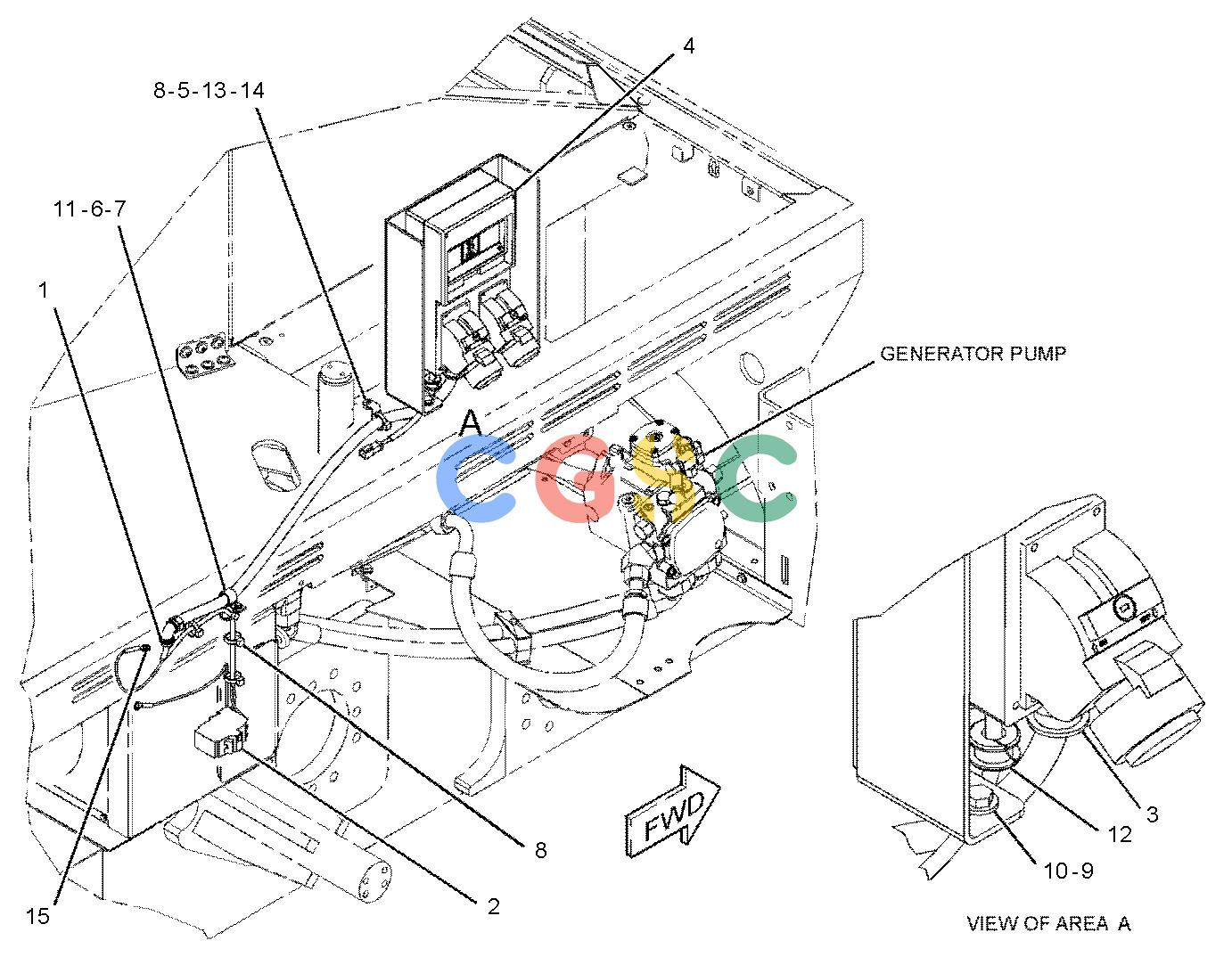

卡特零件查询（BG1055E） 327-9191: WIRING GP-POWER RECEPTACLE
广数供应链运营团队, 16 02月, 2025，浏览：
391 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6815 | [1] | GASKET AS(CONNECTOR) | |
| 2. | 232-0733 | [1] | CIRCUIT BREAKER GP(20-AMPERE)(ELECTRIC HEAT) | |
| | 2L-8067 | [1] | TERMINAL-RING(10-GA TO 12-GA, 1/4-IN SCREW) | |
| | 197-1380 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(SCREED HEAT) | |
| 3. | 246-8370 | [1] | GROMMET | |
| 4. | 341-2000Y | [1] | PANEL GP-POWER | |
| 5. | 132-5789 | [1] | CLIP(LADDER) | |
| 6. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 7. | 6D-4244 | [1] | CLIP(LOOP) | |
| 8. | 7K-1181 | [5] | STRAP-CABLE | |
| 9. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 10. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 11. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 12. | 9G-4191 | [1] | GROMMET | |
| 13. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 15. | 8T-4896 | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
