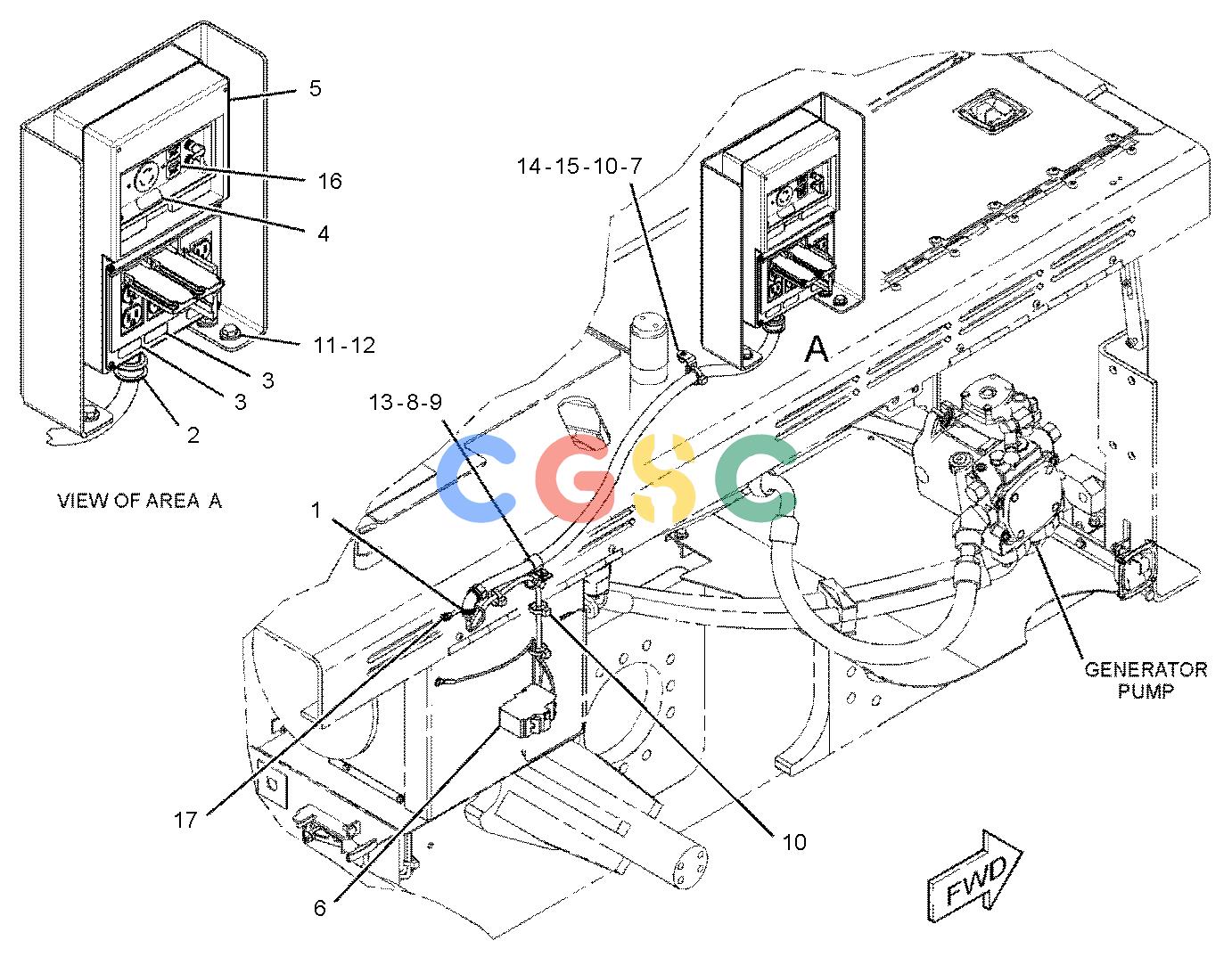

卡特零件查询（BG1055E） 327-9193: WIRING GP-POWER RECEPTACLE
广数供应链运营团队, 16 02月, 2025，浏览：
235 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6815 | [1] | GASKET AS(CONNECTOR) | |
| 2. | 246-8370 | [1] | GROMMET | |
| 3. | 347-1414 | [3] | FILM-IDENTIFICATION(RECEPTACLE) | |
| 4. | 347-1415 | [1] | FILM-IDENTIFICATION(RECEPTACLE) | |
| 5. | 371-4341Y | [1] | PANEL GP-POWER | |
| 6. | 353-8835 | [1] | CIRCUIT BREAKER AS(30-AMPERE)(GENERATOR) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 7. | 132-5789 | [1] | CLIP(LADDER) | |
| 8. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 9. | 6D-4244 | [1] | CLIP(LOOP) | |
| 10. | 7K-1181 | [5] | STRAP-CABLE | |
| 11. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 12. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 14. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4131M | [1] | NUT(M20X2.5-THD) | |
| 16. | 371-4349 | [2] | FILM-IDENTIFICATION(FUSE) | |
| 17. | 8T-4896 | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
