卡特零件查询（BG1055E） 448-4962: WIRING GP-POWER RECEPTACLE
广数供应链运营团队, 16 02月, 2025，浏览：
776 次

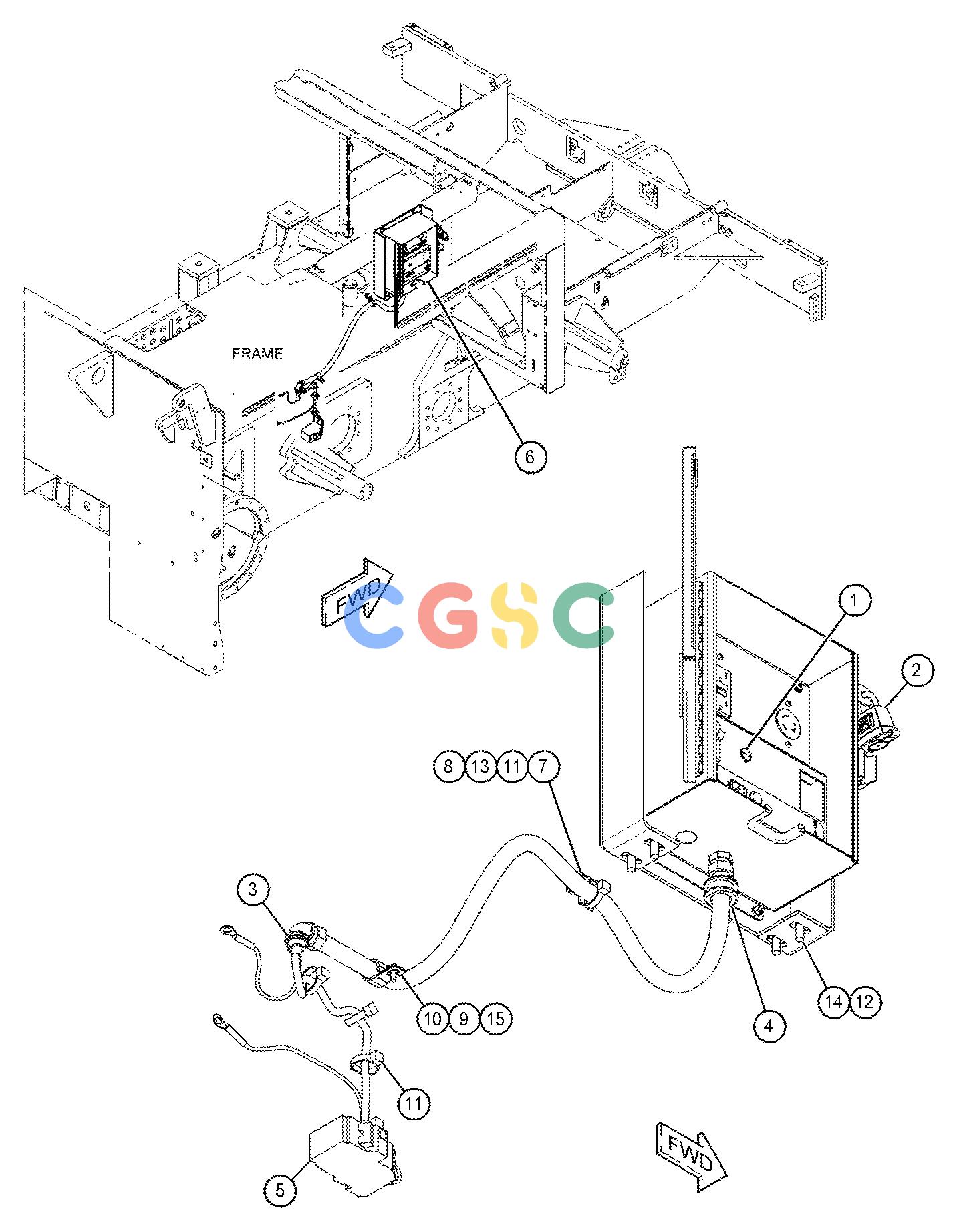

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3V-4694 | [1] | PLUG-BUTTON | |
| 2. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| 3. | 6Y-6815 | [1] | GASKET AS(CONNECTOR) | |
| 4. | 246-8370 | [1] | GROMMET | |
| 5. | 353-8835 | [1] | CIRCUIT BREAKER AS(30-AMPERE)(GENERATOR) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 6. | 448-4963Y | [1] | PANEL GP-POWER | |
| 7. | 132-5789 | [1] | CLIP(LADDER) | |
| 8. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 9. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 10. | 6D-4244 | [1] | CLIP(LOOP) | |
| 11. | 7K-1181 | [5] | STRAP-CABLE | |
| 12. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 13. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
