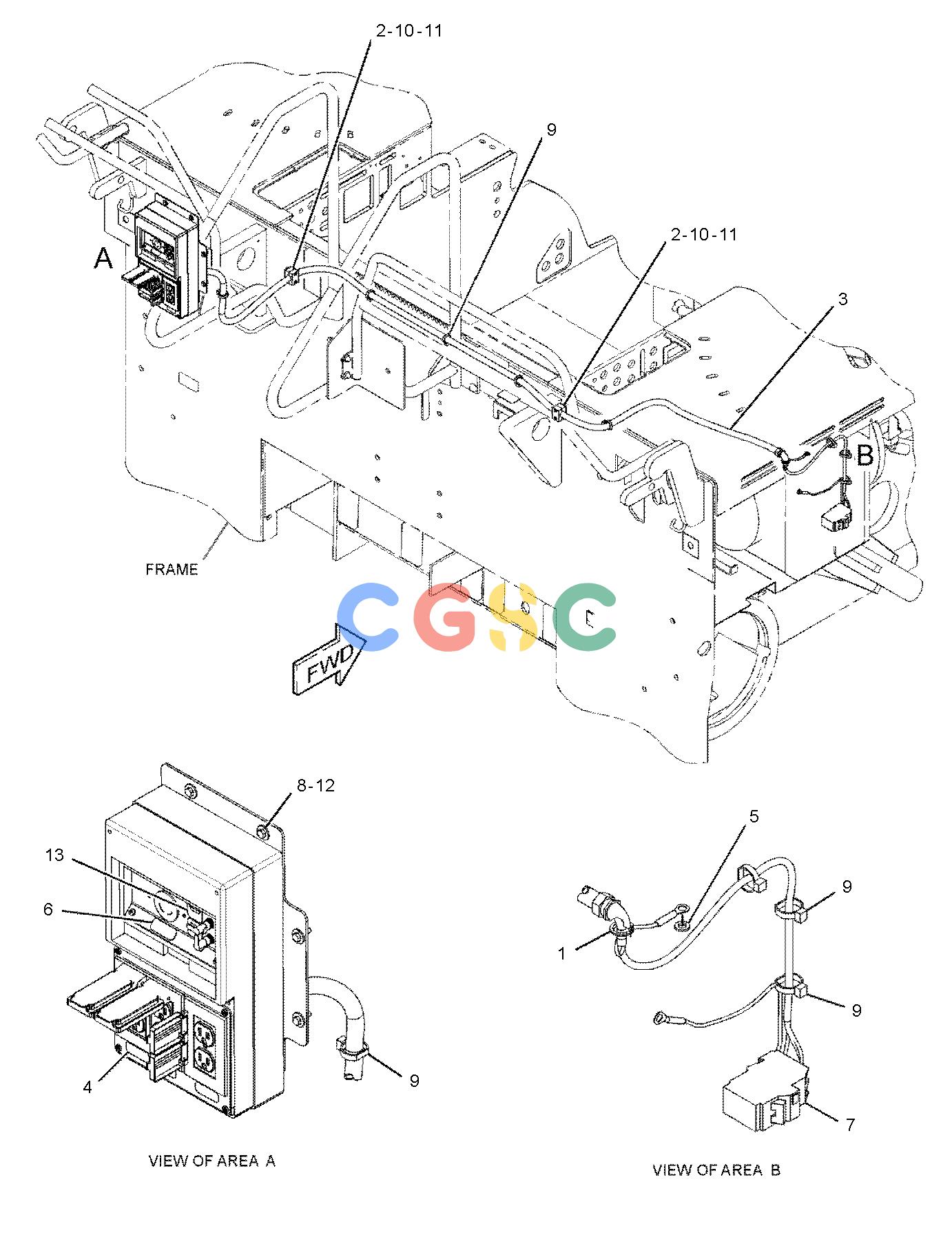

卡特零件查询（BG1055E） 347-9482: WIRING GP-POWER RECEPTACLE
广数供应链运营团队, 16 02月, 2025，浏览：
928 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6815 | [1] | GASKET AS(CONNECTOR) | |
| 2. | 7V-5628 | [2] | PLATE(TOP) | |
| 3. | 371-4346Y | [1] | PANEL GP-POWER(NACD) | |
| 4. | 347-1414 | [3] | FILM-IDENTIFICATION(RECEPTACLE) | |
| 5. | 8T-4896 | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 6. | 347-1415 | [1] | FILM-IDENTIFICATION(RECEPTACLE) | |
| 7. | 353-8835 | [1] | CIRCUIT BREAKER AS(30-AMPERE)(SCREED) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 8. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 9. | 7K-1181 | [8] | STRAP-CABLE | |
| 10. | 7R-7908 | [4] | CLAMP | |
| 11. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 12. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 13. | 371-4349 | [2] | FILM-IDENTIFICATION(FUSE) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
