卡特零件查询（BG1055E） 338-9510: PLATFORM GP-OPERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
859 次

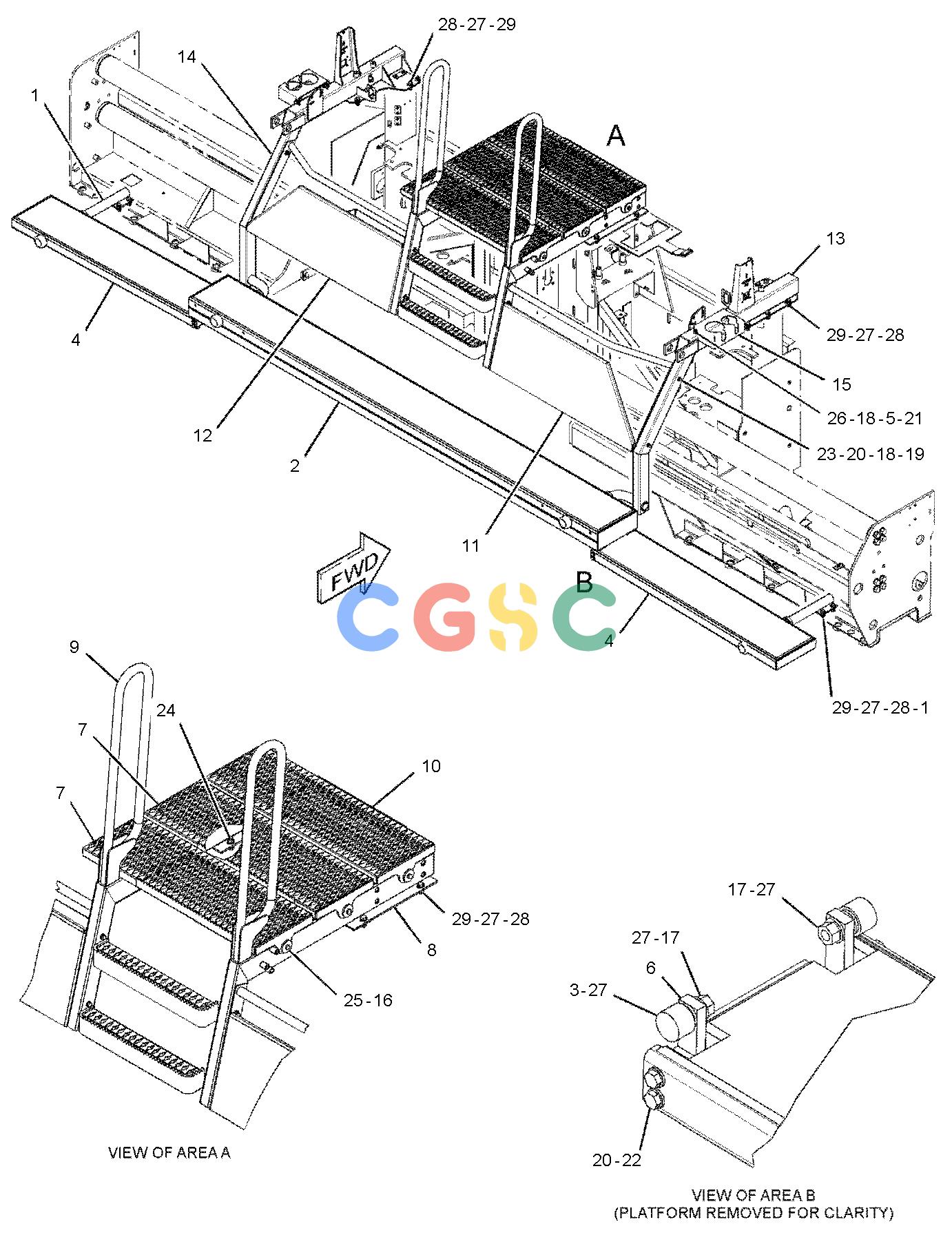

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0420 | [2] | SUPPORT AS-PLATFORM | |
| | | | (EACH INCLUDES) |
| | 8F-7800 | [1] | CAP-PIPE | |
| | 102-2838 | [1] | COLLAR | |
| 2. | 8I-0982 | [1] | PLATFORM AS-MAIN | |
| 3. | 8I-0985 | [4] | ROLLER-TRACK | |
| 4. | 147-1081 | [2] | EXTENDER AS-PLATFORM | |
| 5. | 236-5149 | [4] | WASHER-NYLON(11.17X19.05X1.6MM THK) | |
| 6. | 283-3575 | [4] | SUPPORT AS(ROLLER) | |
| 7. | 324-8731 | [2] | PLATFORM AS-REAR | |
| 8. | 324-8894 | [1] | SUPPORT AS(RH) | |
| 9. | 324-8898 | [1] | SUPPORT AS(LH) | |
| 10. | 324-9221 | [1] | PLATFORM AS-REAR | |
| 11. | 328-3545 | [1] | PANEL AS(RH) | |
| 12. | 328-3546 | [1] | PANEL AS(LH) | |
| 13. | 332-6576 | [1] | SUPPORT AS-PLATFORM(RH-OUTER) | |
| 14. | 332-6577 | [1] | SUPPORT AS-PLATFORM(LH-OUTER) | |
| 15. | 338-9504 | [2] | HOLDER-CUP | |
| 16. | 086-0297 | [3] | WASHER(13X50X6-MM THK) | |
| 17. | 6B-6684 | [4] | NUT-FULL(1/2-20-THD) | |
| 18. | 7X-7729 | [12] | WASHER(11X25X3-MM THK) | |
| 19. | 8T-0389M | [8] | LOCKNUT(M10X1.5-THD) | |
| 20. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 22. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4172M | [8] | BOLT(M10X1.5X80-MM) | |
| 24. | 8T-4183M | [1] | BOLT(M12X1.75X40-MM) | |
| 25. | 8T-4191M | [3] | BOLT(M10X1.5X16-MM) | |
| 26. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 27. | 8T-4223 | [64] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 8T-4244M | [26] | NUT(M12X1.75-THD) | |
| 29. | 8T-4956M | [25] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
