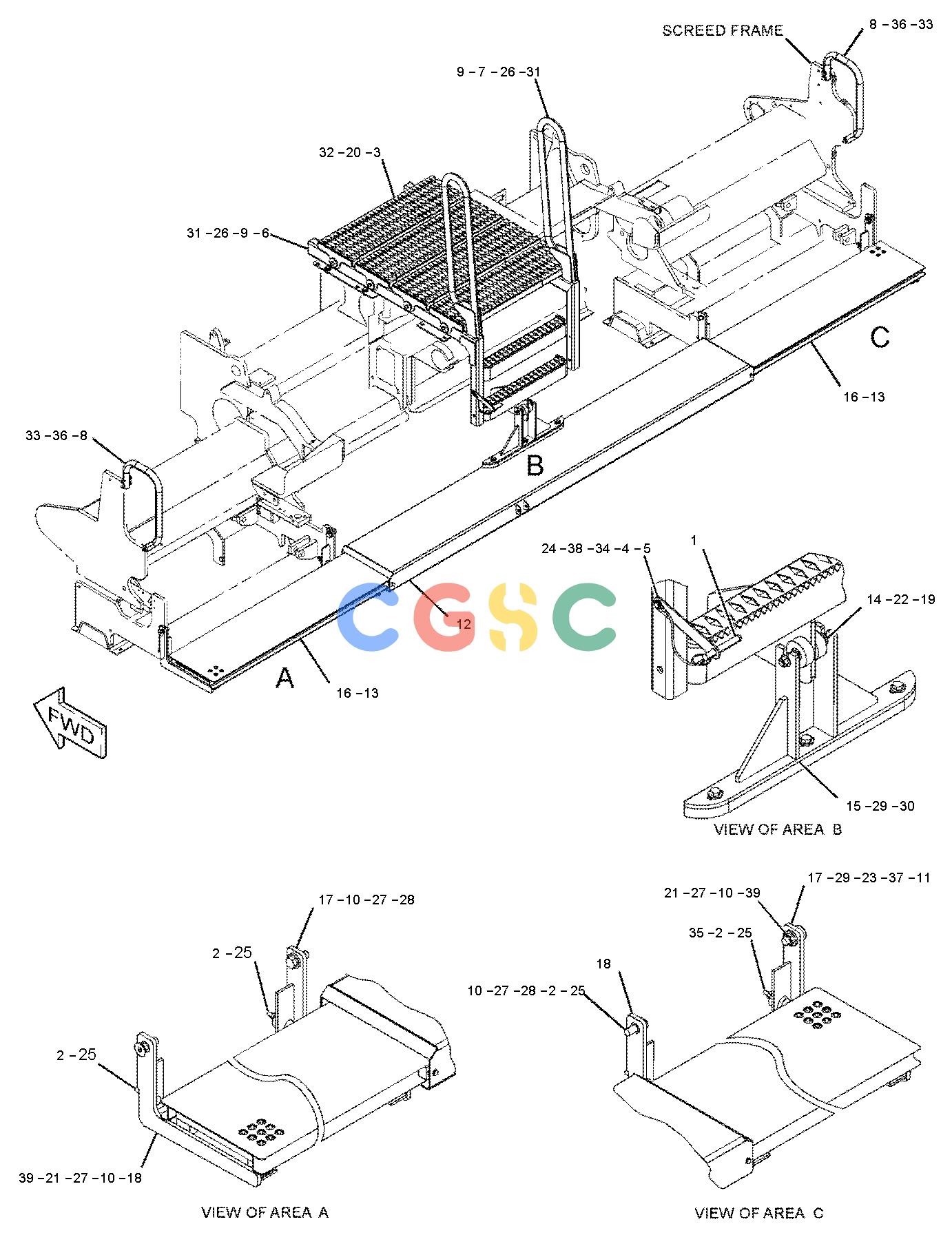

卡特零件查询（BG1055E） 350-5949: PLATFORM GP-OPERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
288 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-9892 | [1] | PIN | |
| 2. | 138-7125C | [4] | BUMPER | |
| 3. | 256-8781 | [4] | WALKWAY AS | |
| 4. | 345-1251 | [1] | CABLE AS | |
| 5. | 350-5909 | [1] | LINK | |
| 6. | 350-5935 | [1] | SUPPORT AS(LH) | |
| 7. | 350-5955 | [1] | SUPPORT AS(RH) | |
| 8. | 356-1064 | [2] | HANDRAIL | |
| 9. | 365-4195 | [2] | STRIP | |
| 10. | 365-4540 | [4] | SPACER(17X25X10.75-MM THK) | |
| 11. | 374-3878C | [8] | SPACER(14X30X30-MM THK) | |
| 12. | 454-7071C | [1] | WALKWAY AS | |
| 13. | 454-7073C | [4] | PAD | |
| 14. | 454-7074C | [2] | PAD | |
| 15. | 454-7076C | [1] | BRACKET AS | |
| 16. | 454-7082C | [2] | WALKWAY AS | |
| 17. | 456-7703C | [2] | SUPPORT AS | |
| 18. | 456-7704C | [2] | SUPPORT AS | |
| 19. | 112-8333CM | [2] | BOLT-CARRIAGE(M10X1.5X40-MM) | |
| 20. | 115-6433 | [4] | WASHER(11X50X6-MM THK) | |
| 21. | 159-2953M | [2] | SCREW-FLAT HEAD(M16X2-THD) | |
| 22. | 175-7141CM | [4] | NUT-HEX FLANGE(M10X1.5-THD) | |
| 23. | 344-5675CM | [8] | NUT(M10X1.5-THD) | |
| 24. | 3B-4607 | [1] | PIN-COTTER | |
| 25. | 5C-7261CM | [4] | NUT(M8X1.25-THD) | |
| 26. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 27. | 7X-0515 | [4] | WASHER-HARD(17X35X5-MM THK) | |
| 28. | 7X-2553M | [2] | BOLT(M16X2X40-MM) | |
| 29. | 7X-7729C | [19] | WASHER(11X25X3-MM THK) | |
| 30. | 8T-4136CM | [3] | BOLT(M10X1.5X25-MM) | |
| 31. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 32. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 33. | 8T-4194M | [6] | BOLT(M12X1.75X50-MM) | |
| 34. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 35. | 8T-4222C | [16] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 36. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 37. | 8T-6466CM | [8] | BOLT(M10X1.5X60-MM) | |
| 38. | 9K-6138 | [1] | PIN | |
| 39. | 9X-8244M | [2] | LOCKNUT(M16X2-THD) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
