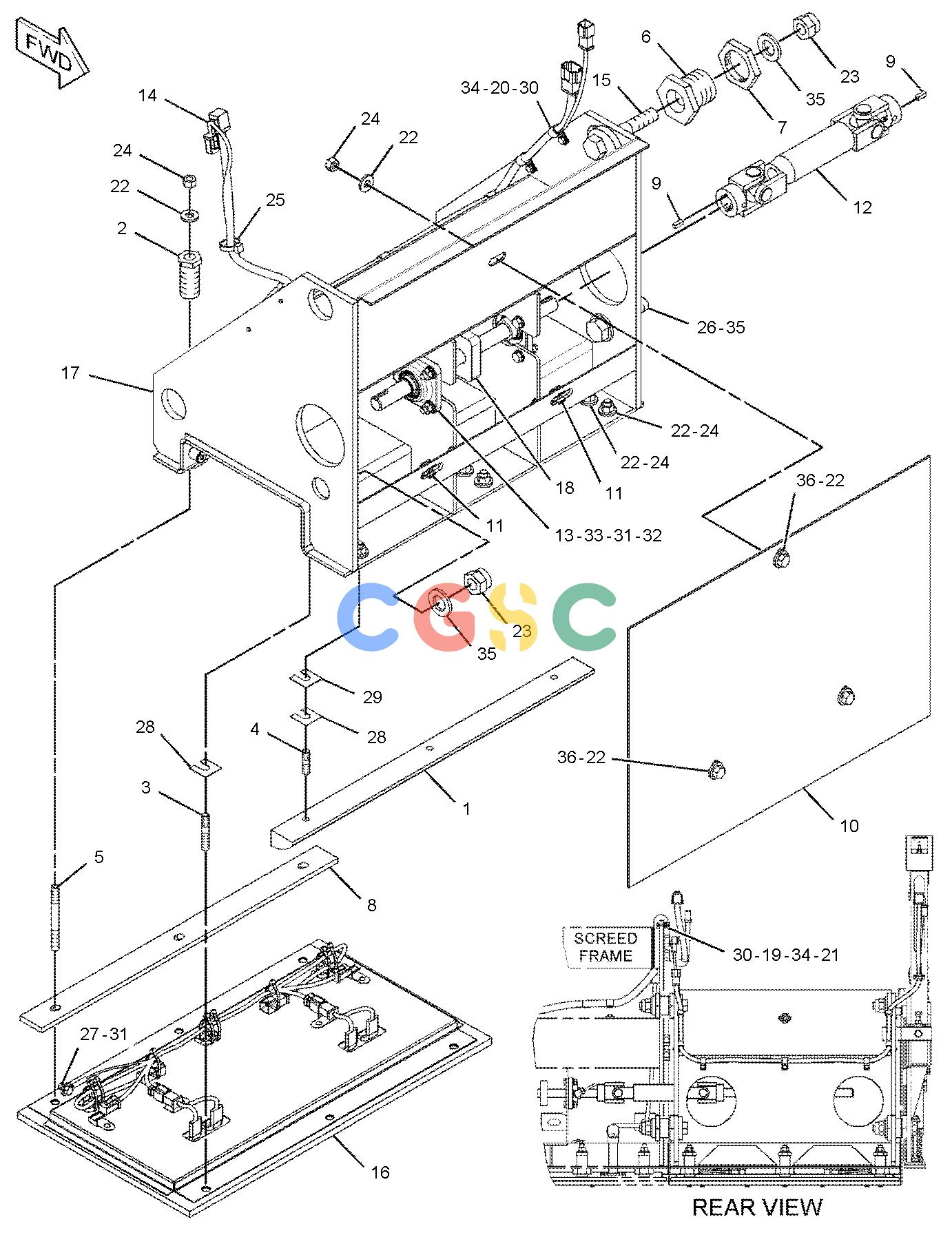

卡特零件查询（BG1055E） 292-0674: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
316 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0181 | [1] | BAR-NOSE | |
| 2. | 8I-0184 | [3] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 3. | 8I-0185 | [3] | STUD(1/2-13X2.75-IN) | |
| 4. | 8I-0189 | [3] | STUD(1/2-13X1.75-IN) | |
| 5. | 8I-0212 | [3] | STUD(1/2-13X5-IN) | |
| 6. | 8I-0544 | [2] | BUSHING | |
| 7. | 102-2719 | [2] | LOCKNUT(2-1/4-16-THD) | |
| 8. | 102-2731 | [1] | BAR-SPACER | |
| 9. | 102-2735 | [2] | KEY-SQUARE | |
| 10. | 102-2737 | [1] | PLATE | |
| 11. | 104-2231 | [2] | NUT-SPRING | |
| 12. | 112-1276Y | [1] | SHAFT GP-DRIVE(ECCENTRIC WEIGHT) | |
| 13. | 258-7574 | [2] | BEARING AS | |
| 14. | 292-0676 | [1] | HARNESS AS-SWITCH(SCREED EXTENSION) | |
| | 8T-8729 | [12] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2271 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2265 | [2] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [24] | PLUG-SEAL | |
| | 102-8804 | [2] | KIT-RECEPTACLE(4-PIN) | |
| | 102-8806 | [2] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [12] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| 15. | 292-0683 | [2] | IMPELLER | |
| 16. | 245-9078Y | [1] | PLATE GP-SCREED(ELECTRIC HEAT, 28-IN) | |
| 17. | 292-5808 | [1] | FRAME AS | |
| 18. | 292-9708 | [1] | SHAFT AS | |
| 19. | 260-6688 | [1] | BOLT(M6X1X30-MM) | |
| 20. | 4M-5281 | [7] | BOLT(1/4-20X0.75-IN) | |
| 21. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 22. | 5P-1076 | [13] | WASHER-HARD(13.5X30X4-MM THK) | |
| 23. | 6V-7676M | [3] | NUT(M24X3-THD) | |
| 24. | 6V-8188 | [10] | NUT(1/2-13-THD) | |
| 25. | 7K-1181 | [1] | STRAP-CABLE | |
| 26. | 7X-2489M | [1] | BOLT(M24X3X100-MM) | |
| 27. | 7X-2621M | [1] | BOLT(M10X1.5X12-MM) | |
| 28. | 8I-0889B | [6] | SHIM(0.02-IN THK) | |
| 29. | 8I-0890B | [3] | SHIM(0.064-IN THK) | |
| 30. | 8J-1256 | [8] | CLIP | |
| 31. | 8T-4121 | [17] | WASHER-HARD(11X21X2.5-MM THK) | |
| 32. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 33. | 8T-4186M | [8] | BOLT(M10X1.5X40-MM) | |
| 34. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 35. | 8T-5361 | [4] | WASHER-HARD(28X49X5-MM THK) | |
| 36. | 8T-8917 | [3] | BOLT(1/2-13X1.25-IN) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
