卡特零件查询（BG1055E） 315-9873: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
194 次

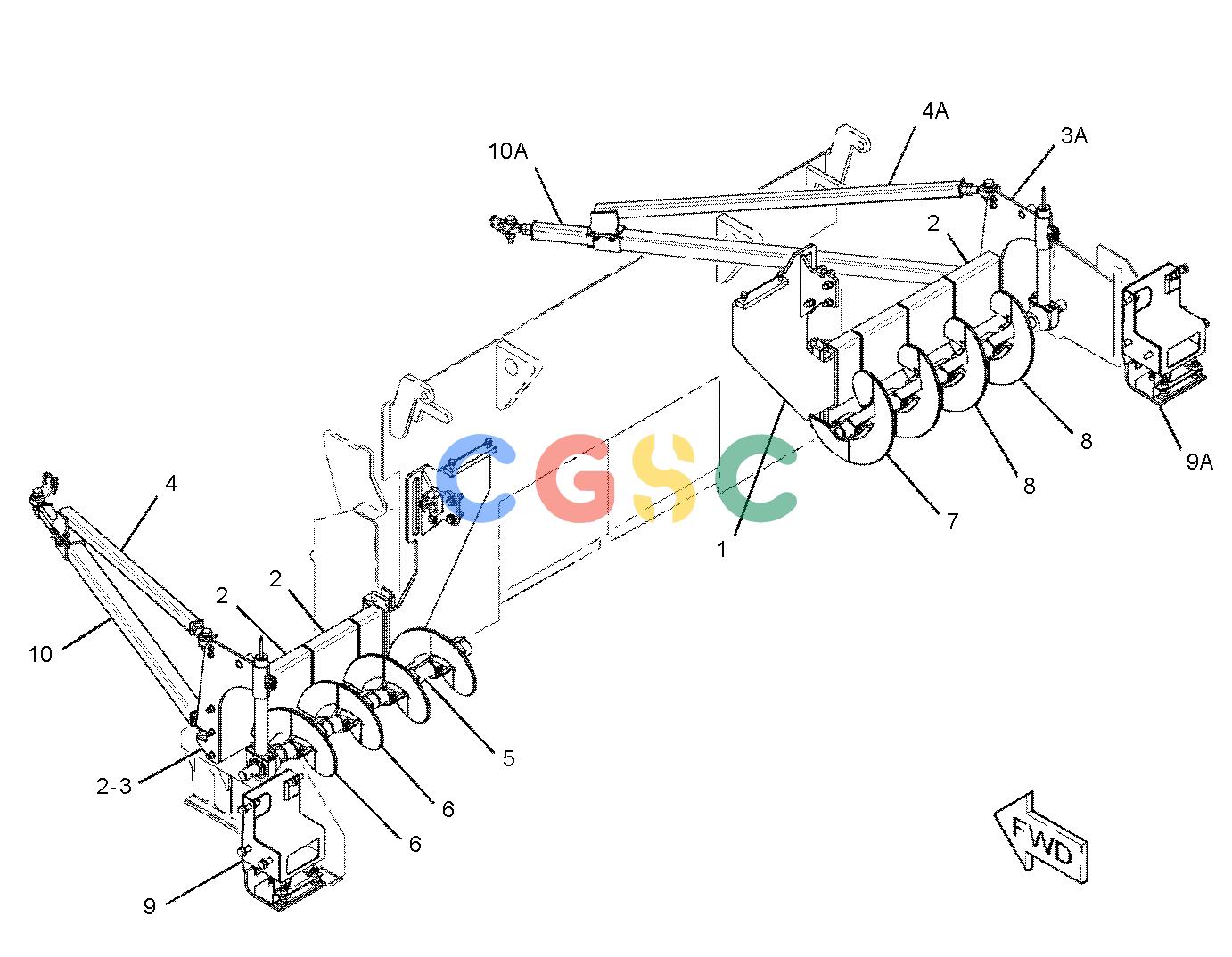

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 327-9195Y | [1] | EXTENSION GP-MAIN FRAME(ADJUSTABLE HEIGHT) | |
| 2. | 231-1982Y | [6] | EXTENSION GP-MAIN FRAME(12-IN) | |
| 3. | 116-9509Y | [1] | BEARING GP-AUGER(LH) | |
| 3A. | 116-9509Y | [1] | BEARING GP-AUGER(RH) | |
| 4. | 315-1101Y | [1] | BRACE GP(LH) | |
| 4A. | 315-1101Y | [1] | BRACE GP(RH) | |
| 5. | 231-2043Y | [1] | EXTENSION GP-AUGER(24-IN, LH) | |
| 6. | 199-4206Y | [2] | EXTENSION GP-AUGER(12-IN, LH) | |
| 7. | 231-2042Y | [1] | EXTENSION GP-AUGER(24-IN, RH) | |
| 8. | 198-8287Y | [2] | EXTENSION GP-AUGER(12-IN, RH) | |
| 9. | 328-3560Y | [1] | EXTENSION GP-SCREED(ELECTRIC HEAT, 1-FT)(LH) | |
| 9A. | 328-3560Y | [1] | EXTENSION GP-SCREED(ELECTRIC HEAT, 1-FT)(RH) | |
| 10. | 231-1956Y | [1] | SUPPORT GP-FRAME(LH) | |
| 10A. | 231-1956Y | [1] | SUPPORT GP-FRAME(RH) | |
| | | | |
| | 246-3318F | [1] | TUBE AS | |
| | F | | NOT SHOWN |
| | Y | | SEPARATE ILLUSTRATION |
